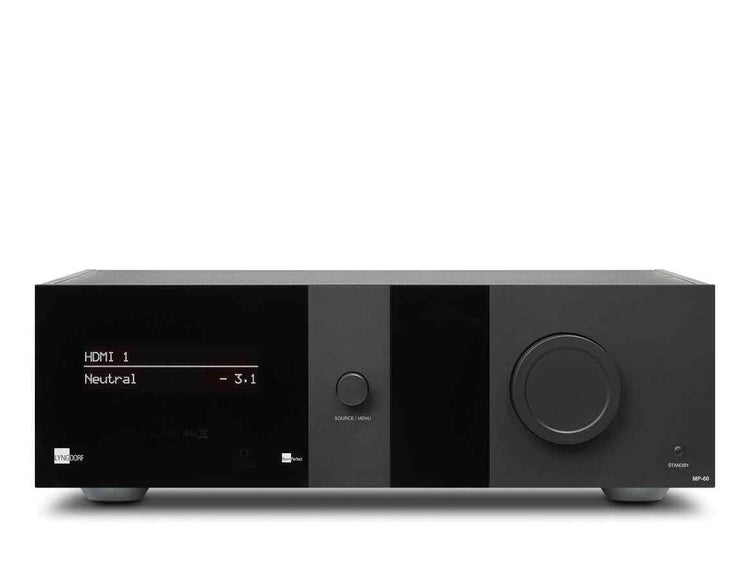

The MP-60 2.1 surround sound processor is equipped with all the advanced technologies that Lyngdorf Audio is known for – including the renowned RoomPerfectTM room correction system and digital signal processing of unparalleled quality.

The MP-60 2.1 processor decodes up to 16 native audio channels. The MP-60 2.1 offers full support for the latest surround formats such as Dolby Atmos®, DTS: X® Pro, and AURO-3D®.
With five HDMI inputs and two HDMI outputs, the MP-60 2.1 now supports HDMI 2.1 with features such as eARC, Dynamic Lip-Sync, and QMS (Quick Media Switching), as well as the latest decoding standards and post-processing features.
The MP-60 2.1 supports 40 Gbps Fixed Rate Link (FRL) and 18 Gbps Transition Minimized Differential Signaling (TMDS) video transmission rates. Furthermore, it supports Variable Refresh Rate (VRR), Quick Frame Transport (or Fast Vactive), as well as Auto Low Latency Mode (ALLM) and High Dynamic Range (HDR) metadata pass-through for HDMI Dynamic HDR, HDR10+, and Dolby VisionTM.

Description: Surround sound processor
Decoding: 16 decoding/upmixing channels, Dolby Atmos®, DTS:X Pro (14 channels), AURO-3D® (14 channels), all legacy codecs
Post processing options: Dolby Surround, AURO-MATIC®, DTS Neural:X
Audio inputs: 5 x HDMI™, 1 x HDMI™ eARC (≤192kHz/24bit), 1 x AES/EBU S/P-DIF input
(≤192kHz/24bit), 3 x S/P-DIF coaxial inputs (≤192kHz/24bit), 4 x S/P-DIF
optical inputs (≤96Hz/24bit), 1 x USB audio input (≤192kHz/32bit),
1 x microphone input (XLR) for RoomPerfect™
Audio outputs: 16 x XLR analog outputs (5.0 Vrms), 1 x SPDIF coax digital ZONE output
(Fixed 96kHz/24bit)
Audio specifications: Frequency response: ±0.5dB from 20 to 20,000 Hz,
Total harmonic distortion: 0.005% max from 20 to 20,000 Hz
EQ: RoomPerfect™, subwoofer level assistant, 32 x adjustable voicings holding ≤8 shelving, high/low pass or parametric filters with adjustable gain and Q
Media player: Internet radio (vTuner), Airplay, Spotify Connect, Roon Endpoint (awaiting
certification), DLNA Support of FAT32 based media storage
Video inputs: 5 x HDMI™ (2.1 - HDCP 2.3), accepts 8k30 RGB/YCbCr 4:4:4 10-bit video,
8k60 YCbCr 4:2:0 10-bit high definition video, and 4k120 4:4:4 10-bit high
frame rate video, Variable Refresh Rate (VRR), Fast Vactive (FVA), and Auto Low
Latency Mode (ALLM) support. Accepts HDR, Dolby Vision™ and HLG
Video outputs: 2 x HDMI™ (HDCP 2.3)
Control interfaces: 1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB A connectors, 1 x SD card slot , (Backup - storage
for system software and settings)
Accessories included: RoomPerfect™ microphone, microphone stand, microphone cable, RF
remote control
Optional module: 16 channel DCI-compliant digital AES/EBU input for movie servers (supports
up to 32bit/192kHz), 16 channel digital AES/EBU output module (always
24bit, 48kHz or 96kHz selectable), 16 channel AES67 digital input/output
module (supports up to 32bit/192kHz input, output is always 24bit/48kHz)
Placement options: Rack mount or freestanding
Dimensions (H x W x D): 147 x 450 x 370 mm
5.8 x 17.7 x 14.6 inches
Weight: 9 kg / 19 lb
Finish: Matte black
Item no.: 900010520
