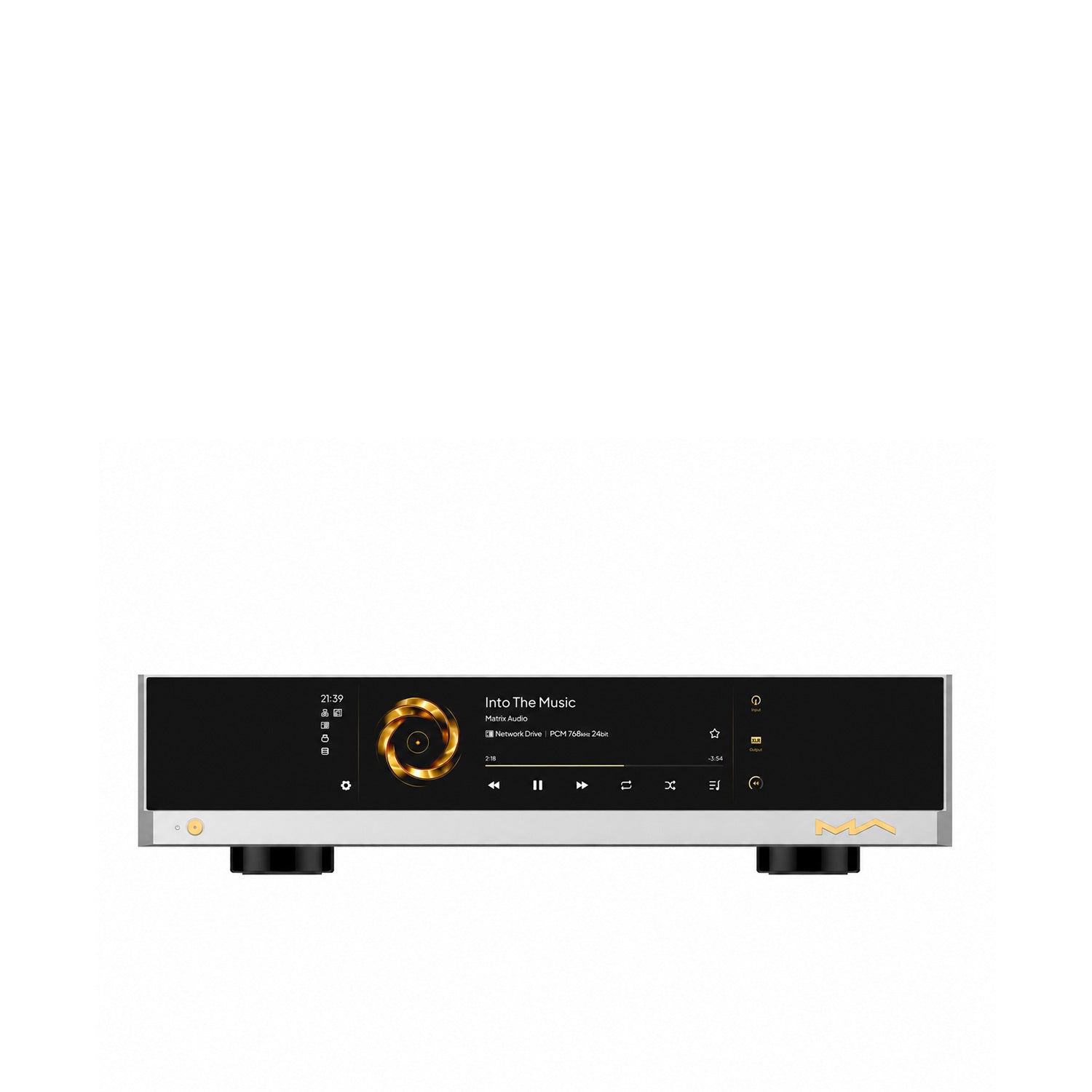

Matrix Audio MS-1 – High-End Network Player with Reference DAC and Preamplifier

High-End Network Player for uncompromising music enjoyment

The Matrix Audio MS-1 combines a high-quality network streamer, a reference DAC, and a powerful preamplifier in a single device. Featuring state-of-the-art digital technology, a fully balanced audio architecture, and top-tier components, it forms the heart of sophisticated Hi-Fi systems and impresses with exceptional sound quality, intuitive operation, and maximum flexibility.

Reference DAC with Dual-Mono AKM Flagship Converters

Inside are two AK4191EQ digital processors and two AK4499EXEQ DACs from Asahi Kasei Microdevices (AKM). The consistent dual-mono architecture with VELVET SOUND™ technology completely separates digital and analog signal processing, ensuring exceptionally precise, natural, and spatial music reproduction.

Hi-Res Audio up to 32-bit / 768 kHz, DSD512, and MQA

The MS-1 supports high-resolution PCM files up to 32-bit / 768 kHz, native DSD512, and full MQA decoding. This ensures that even studio master recordings are reproduced with the highest precision and maximum detail.

Streaming without limits

Access your favorite music directly – whether via streaming services, NAS, USB storage, or the optional internal SSD.

Supported services include:

• TIDAL Connect

• Qobuz Connect

• Spotify Connect

• AirPlay 2

• Roon Ready

• UPnP / DLNA

• vTuner Internet Radio

DAC and preamplifier in one device

The MS-1 can be used both as a high-quality DAC with a fixed output level and as a full-fledged preamplifier with adjustable volume. Active speakers or power amplifiers can be connected directly, eliminating the need for additional components.

High-quality phono preamplifier for MM and MC cartridges

Vinyl enthusiasts benefit from an integrated phono preamplifier that supports both moving magnet and moving coil systems, reproducing records with impressive detail.

DSP upsampling and DSD conversion

The integrated DSP enables high-quality upsampling as well as real-time conversion from PCM to DSD. This creates a particularly natural and pleasant sound characteristic with high detail resolution.

Extensive connectivity

The MS-1 offers a variety of high-quality analog and digital connections and integrates seamlessly into almost any high-end system.

Analog Inputs

• XLR

• 2 × RCA (incl. Phono)

Digital Inputs

• USB-B

• I²S-LVDS

• 2 × Coaxial

• Toslink

Audiophile network architecture

In addition to Gigabit Ethernet, the MS-1 features an SFP fiber optic port for galvanic isolation from the network. This effectively reduces high-frequency interference and enables exceptionally clean signal transmission.

External Master Clock

An external reference clock can be connected via the integrated 10 MHz BNC input. This minimizes jitter and improves the precision of digital signal processing.

Powerful linear power supply

Two specially developed toroidal transformers and high-quality Mundorf MLytic® AG capacitors power the digital and analog sections independently, ensuring maximum dynamics and an exceptionally stable power supply.

Music server with integrated SSD expansion

The M.2 2280 NVMe slot allows the MS-1 to be expanded into a powerful music server. Music files can be stored directly on an SSD and managed with ease.

CD ripping and archiving

With an external USB CD drive, CDs can be played directly or archived losslessly as FLAC or WAV files to an SSD, USB storage, or NAS.

Convenient operation

Control is achieved either via the high-resolution touchscreen, the included remote control, or the free MA Remote App for iOS and Android.

High-resolution color display with VU meters

The large touchscreen clearly displays album art, track information, and system settings. Animated VU meters also give the device an elegant, audiophile look.

Solid CNC-machined aluminum chassis

The low-resonance aluminum housing reliably protects the sensitive electronics from vibrations and electromagnetic interference, underlining the high-quality standards of the MS-1.

Perfectly matched to the Matrix Audio ecosystem

Combined with the Matrix Audio MP-1 preamplifier and the MA-1 stereo power amplifier, it creates a fully coordinated high-end system with exceptional sound quality and maximum ease of use.

Technical Specifications:

Model: Matrix Audio MS-1

Digital Input – Coaxial / Optical:

* PCM: 16–24 Bit / 44.1 kHz to 192 kHz
* MQA and MQA Studio
* DSD64, DSD128 (DoP)

Digital Input – IIS LVDS:

* PCM: 16–32 Bit / 44.1 kHz to 768 kHz
* DSD64 to DSD1024 (Native)
* DSD64 to DSD512 (DoP)

Digital Input – USB Audio:

* PCM: 16–24 Bit / 44.1 kHz to 768 kHz
* MQA and MQA Studio up to 384 kHz
* DSD64 to DSD512 (Native)
* DSD64 to DSD256 (DoP)

Digital Output – IIS LVDS:

* PCM: 16–32 Bit / 44.1 kHz to 768 kHz
* DSD64 to DSD1024 (Native)

Analog Inputs:

* XLR Line-In
* RCA Line-In
* Phono Input (MM / MC)

Line Output (XLR):

* Output Impedance: 20 Ω
* Output Level: 5 Vrms (fixed)
* Signal-to-Noise Ratio: 131 dB (A)
* THD+N: <0.000068% @ 1 kHz
* Frequency Response: 20 Hz – 20 kHz ±0.05 dB
* Channel Separation: >150 dB

Pre-Amplifier Output (XLR):

* Output Impedance: 40 Ω
* Output Level: 0–16 Vrms
* Gain: +10 dB
* Signal-to-Noise Ratio: 131 dB (A)
* THD+N: <0.000068% @ 1 kHz
* Frequency Response: 20 Hz – 20 kHz ±0.05 dB
* Channel Separation: >150 dB

Pre-Amplifier Output (RCA):

* Output Impedance: 16 Ω
* Output Level: 0–8 Vrms
* Gain: +10 dB
* Signal-to-Noise Ratio: 127 dB (A)
* THD+N: <0.000076% @ 1 kHz
* Frequency Response: 20 Hz – 20 kHz ±0.08 dB
* Channel Separation: >139 dB

Network:

* Gigabit LAN (10/100/1000 Mbps)
* Gigabit SFP Fiber Optic (10/100/1000 Mbps)

USB:

* 2 × USB 3.0
* Max. Output Power: 5 V / 1.5 A
* Supported File Systems: FAT, FAT32, exFAT, NTFS

External Clock Input:

* 10 MHz
* 50 Ω
* Sine or Square Wave Signal

Trigger:

* Trigger In: DC 6–12 V (<10 mA)
* Trigger Out: DC 12 V / 50 mA

Storage Expansion:

* 1 × M.2 2280 NVMe PCIe SSD
* Max. Power Consumption: 3.3 V / 3 A

Software:

* MA Player
* MA Remote App (iOS & Android)

Local Playback:

* MP3
* WMA
* WAV
* AIFF
* AIF
* AIFC
* AAC
* FLAC
* OGG
* APE
* ALAC
* M4A
* DSF
* DFF
* CUE
* PCM up to 768 kHz / 24 Bit
* DSD up to DSD512
* MQA and MQA Studio

Streaming Services:

* Roon Ready
* AirPlay 2
* DLNA / UPnP
* TIDAL Connect
* Qobuz Connect
* Spotify Connect
* vTuner
* Radio Paradise

Power Supply:

* AC 100–120 V, 50/60 Hz
* AC 220–240 V, 50/60 Hz
* Factory preset

Power Consumption:

* Standby: <5 W
* Maximum: <60 W

Dimensions:

* Width: 430 mm
* Depth: 353 mm
* Height: 106 mm

Weight:

* 14.6 kg

Included Accessories:

* RM4B Remote Control
* Power Cable
* User Manual
* Warranty Card
