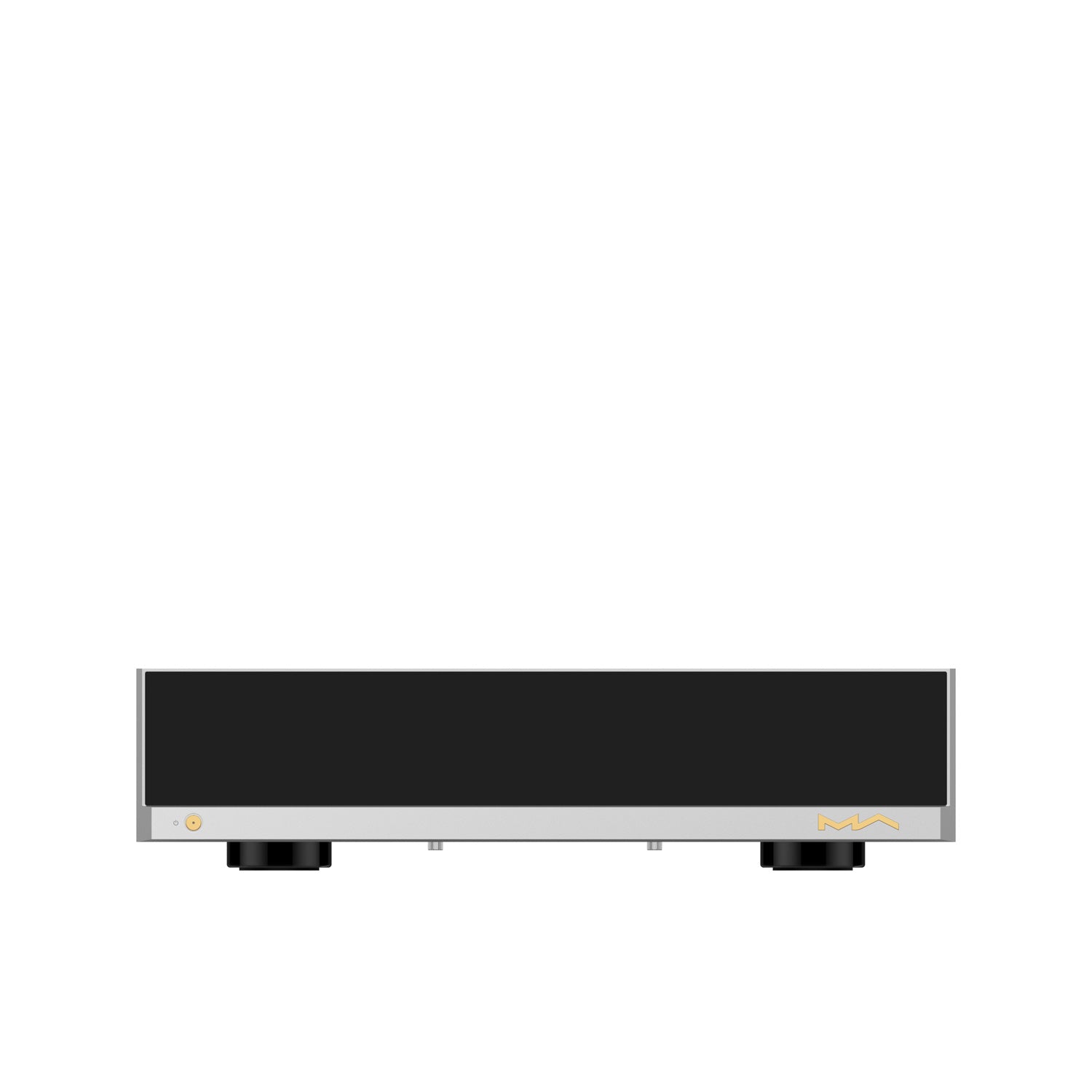

Matrix Audio MS-1 Pre – High-End Network Streamer, DAC and Preamplifier

Reference-level network streamer, DAC and preamplifier

The Matrix Audio MS-1 Pre combines high-resolution music streaming, an uncompromising reference DAC, and an audiophile preamplifier into one elegant high-end device. Thanks to state-of-the-art streaming technologies, fully balanced signal processing, and an elaborate analog output stage, the MS-1 Pre forms the heart of sophisticated HiFi systems. Whether streaming, digital sources, or turntables – all components are integrated at the highest sonic level.

Reference DAC with AKM VELVET SOUND™ technology

Inside, it employs a rigorous dual-mono DAC architecture with two AKM AK4191EQ digital processors and two AK4499EXEQ flagship DACs. Through the separate processing of digital and analog signals (split architecture), noise and distortion are reduced to a minimum. The result is exceptionally natural, detailed, and spatial music reproduction with impressive dynamics.

Hi-Res audio up to 32-bit / 768 kHz and DSD512

The MS-1 Pre supports almost all modern Hi-Res formats, including PCM up to 32-bit / 768 kHz, DSD512, and full MQA decoding. A powerful DSP also enables high-quality upsampling as well as PCM-to-DSD conversion for a particularly harmonious and musical sonic character.

Streaming without compromise

Enjoy your music directly via TIDAL Connect, Qobuz Connect, Spotify Connect, AirPlay 2, Roon Ready, UPnP/DLNA, or internet radio via vTuner. Alternatively, music files can be conveniently played from USB storage, a NAS, or an optionally integrated SSD. The modern Matrix Audio operating system ensures fast, stable, and intuitive operation.

High-quality preamplifier with analog volume control

The MS-1 Pre features a sophisticated, lossless volume control using a high-precision resistor network. Unlike conventional digital volume controls, dynamics, resolution, and channel balance are fully maintained across the entire control range. This makes the MS-1 Pre an excellent high-quality control center for power amplifiers and active speakers.

Versatile connection options for every source

Whether digital or analog signal sources – the MS-1 Pre offers maximum flexibility. Available are analog RCA and XLR inputs, including a high-quality MM/MC phono preamplifier, as well as digital inputs via USB-B, I2S-LVDS, Toslink, and coaxial S/PDIF connections. On the output side, there are variable pre-outs via XLR and RCA, as well as an additional XLR line-out with a fixed level.

Audiophile-grade network technology

In addition to classic Gigabit LAN, the MS-1 Pre features an SFP fiber-optic port, which galvanically isolates the device from the network and effectively reduces high-frequency interference. For maximum precision, an external 10 MHz master clock can also be connected, further minimizing jitter and once again improving spatial imaging.

Powerful linear power supply for maximum sound quality

Two generously dimensioned toroidal transformers and high-quality Mundorf MLytic® AG capacitors supply the digital and analog assemblies separately. This elaborate power supply ensures enormous dynamic reserves, maximum stability, and an exceptionally quiet noise floor.

Music server with SSD expansion and CD ripping

Via the integrated M.2 2280 NVMe PCIe SSD slot, the MS-1 Pre can be upgraded into a powerful music server in no time. In conjunction with an external USB CD drive, CDs can be played directly or archived losslessly as FLAC or WAV files on the SSD, a USB drive, or a NAS.

Comfortable operation and premium design

The generous high-resolution touchscreen with animated VU meters allows for intuitive operation directly on the device. Alternatively, the MS-1 Pre can be conveniently controlled via the included remote control or the MA Remote App for iOS and Android. The precision-milled aluminum housing with its resonance-optimized H-structure reliably protects the sensitive electronics from vibrations and electromagnetic interference, underscoring the device's premium aspirations.

Perfect addition for high-end systems

In combination with the Matrix Audio MA-1 stereo power amplifier, the MS-1 Pre forms a perfectly matched high-end system that combines state-of-the-art streaming technology, audiophile signal processing, and exceptional reference-level sound quality.

Technical Specifications:

Model: Matrix Audio MS-1PRE

Analog outputs: 1x RCA (Pre Out), 1x XLR (Pre Out), 1x XLR (Line Out)

Analog inputs: 1x RCA, 1x RCA (Phono), 1x XLR

Digital inputs: 2x Coaxial, 1x Optical, 2x I2S

USB ports: 2x USB-A, 1x USB-B

D/A converter: 2x AKM AK4191EQ, 2x AKM AK4499EXEQ

Maximum resolution: PCM up to 32 bit / 768 kHz, DSD512

Supported formats: AAC, AIFF, ALAC, CUE, DFF, DSD, DSF, FLAC, M4A, MP3, MQA, OGG, PCM, WAV, WMA

Streaming services: AirPlay 2, DLNA, High-Res Audio, Qobuz, Qobuz Connect, Roon Ready, Spotify Connect, TIDAL Connect, UPnP, USB media, vTuner, playback from internal SSD

Network: Gigabit LAN, WLAN 2.4 GHz, WLAN 5 GHz

Operation: Touchscreen, remote control, MA Remote App for Android and iOS

Display: High-resolution touchscreen with VU meter

Special features: CD ripping, integrated MM/MC phono preamplifier, M.2 NVMe SSD slot, Roon Ready, Master Clock input, lossless analog volume control

Finish: Silver

Series: Matrix Audio M-Series

Weight: 14.6 kg

Dimensions (W × D × H): 430 × 353 × 106 mm
