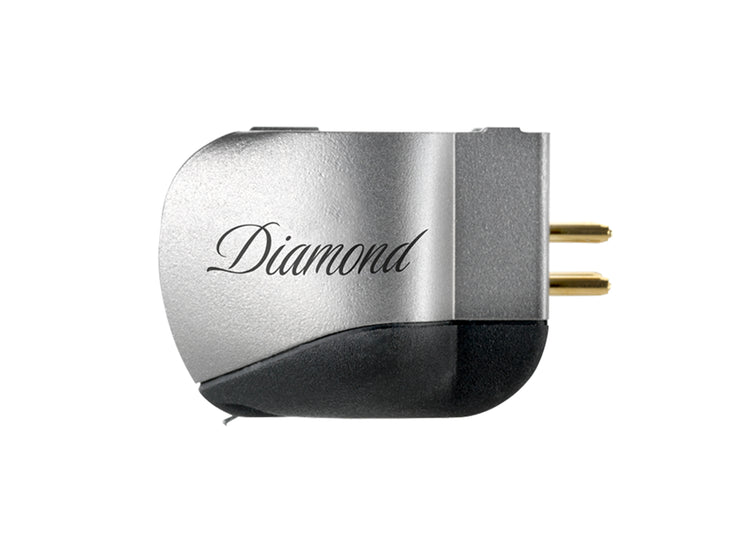

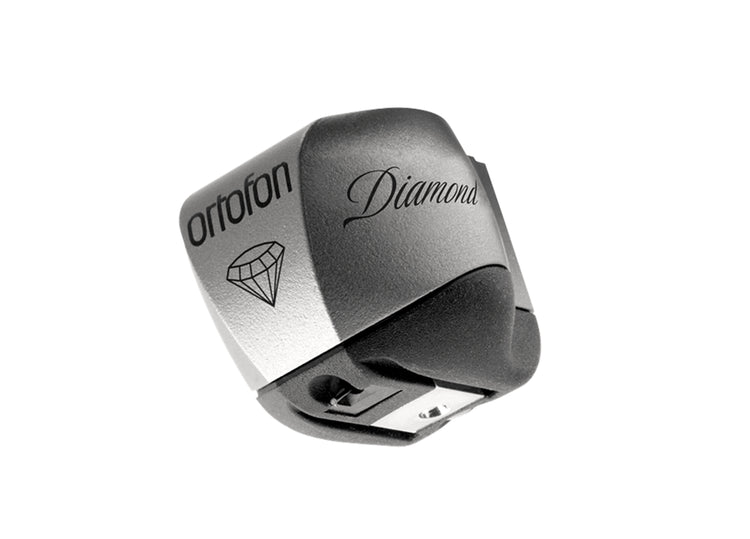

The MC Diamond is the best Ortofon phono cartridge ever, delivering recorded music like you have never heard it before

Ortofon strives to provide the ultimate music experience through a mixture of innovation, technical expertise, and inspiration. This new, state-of-the-art phono cartridge, which represents numerous Ortofon design elements and ideals, is truly exemplary of the highest level of performance possible in modern analog playback technology.

Equipped with a titanium housing, an optimized magnet system, a diamond cantilever, and a new rubber suspension, the MC Diamond offers a completely new experience for audiophiles.

"This is recorded music like you have never heard it before – the most authentic vinyl experience in the world," said Leif Johannsen, Chief Officer of Acoustics and Research at Ortofon.

Output voltage at 1 kHz, 5cm/sec. - 0.2 mV

Channel balance at 1 kHz - 0.5 dB

Channel separation at 1 kHz - 25 dB

Channel separation at 15 kHz - 20 dB

Frequency response - 20 Hz-20 kHz +/- 2 dB

Tracking ability at 315 Hz at recommended tracking force - 80 µm

Compliance, dynamic, lateral - 11 µm/mN

Stylus type - Special polished Nude Ortofon Replicant 100 on Diamond Cantilever

Stylus tip radius - r/R 5/100 µm

Tracking force range - 2.5-2.8 g (25-28 mN)

Tracking force, recommended - 2.6 g (26 mN)

Tracking angle - 23°

Internal impedance, DC resistance - 6 Ohm

Recommended load impedance - > 10 Ohm

Coil wire material - Ultra pure oxygen free copper

Cartridge body material - SLM Titanium

Cartridge colour - Silver/Black

Cartridge weight - 17.5 g
