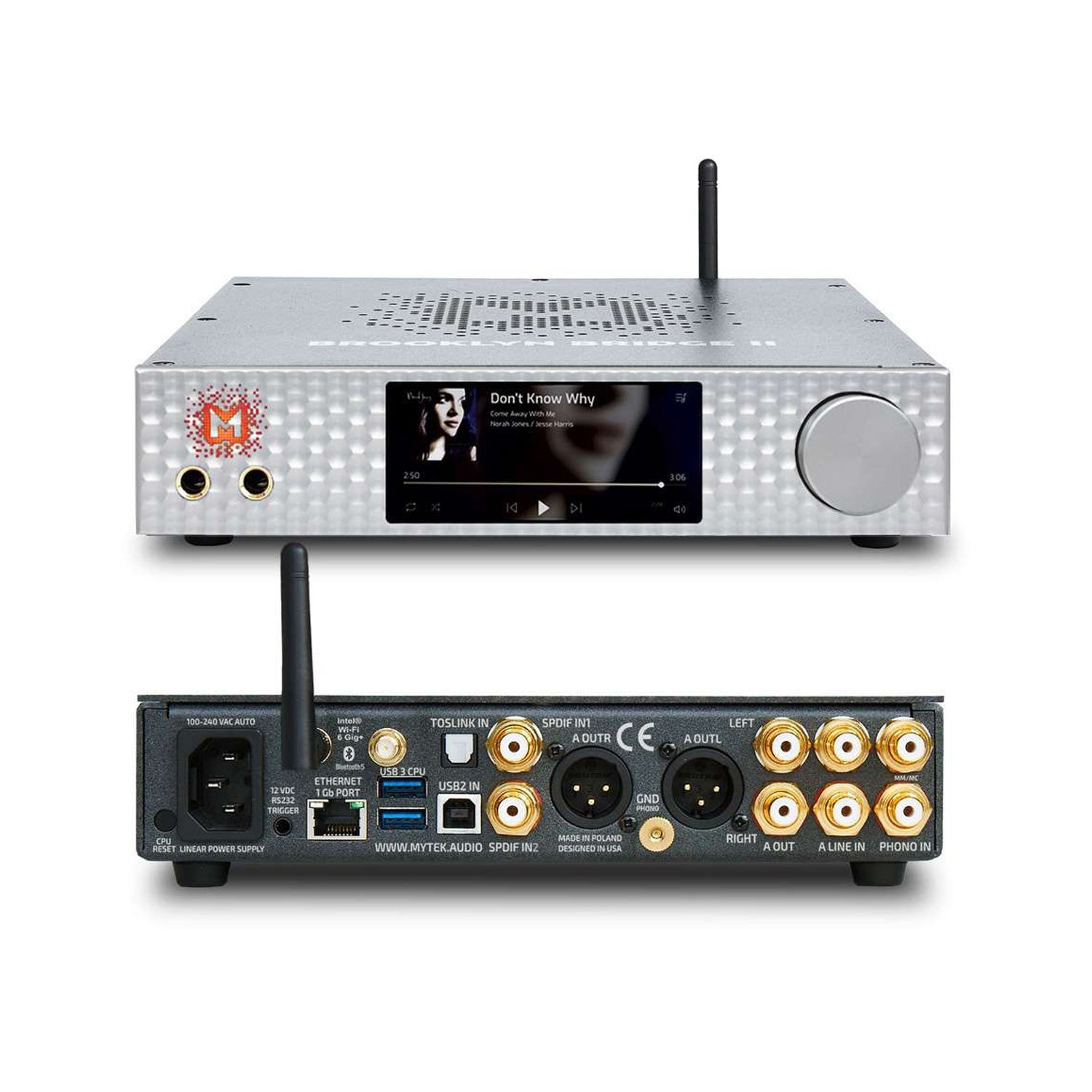

All-in-one: Roon Core, streamer, D/A converter, headphone amplifier, phono preamplifier, and preamplifier

The Brooklyn Bridge II is the reinvention of our bestseller. The original Brooklyn Bridge was highly successful, winning the Stereophile "Product of the Year" and the 2019-2020 EISA Award for its innovative design and superior sound. The Brooklyn Bridge II features the same award-winning preamplifier and DAC circuitry, but now includes a vastly superior 90W linear power supply that gives the sound of this exceptional device wings. It also features a next-generation menu that you can access via smartphones and tablets.

Powerful and always up to date

At its heart, a full-fledged computer system ensures reliable and fast processing of both control and music signals. The Brooklyn Bridge II is equipped with an Intel i5 chip, which, in combination with Mytek OS, allows for smooth operation. Mytek OS is a software platform that is continuously expanded with new features. Software updates are performed in the same way as on any other computer: when you receive a "new software" notification, you can download and update the system. The new software includes new features and bug fixes. In the coming months and years, Mytek plans to add alternative players such as UPnP, Spotify, and Tidal Connect, as well as features like Apple AirPlay. Their availability will be announced as soon as development work begins.

Easy peasy

Simple touchscreen operation via iPad, smartphone, or the display makes it child's play to use.

Roon? Yes, please!

The Brooklyn Bridge II is a complete all-in-one Roon system primarily designed for use with Roon playback software. Furthermore, it offers UPnP and Bluetooth. Using Roon with the BB2 requires a Roon subscription. A free 1-year subscription is included with your purchase. Roon offers a superior playback and browsing experience, especially with metadata (lyrics, credits, just like vinyl album covers) that is not available with other playback software and is preferred by thousands of music lovers. Roon also offers more options, such as advanced playlist management, multi-room playback, and ARC, which turns your local library into your own private streaming service. Roon can play any format, including DSD256 and 384k PCM, while other software is limited to a maximum of 192k PCM.

Highlights

Built-in Roon Core, Tidal, Qobuz, and local library in any format up to PCM 384kHz, DSD256, and MQA
Analog Preamplifier: Phono M/M and Line RCA input
Digital Preamplifier: SPDIF and optical inputs for turntable or TV, Roon Ready DAC input for use with another streamer if required
Bluetooth 5: including Hi-Res Audio
Included in delivery: one power cable for the destination country, one USB 2.0 cable, and a code for a two-month FREE Roon subscription. The current manual is available as a PDF download on this page.
CONVERTER: up to 384k, 32bit PCM, native DSD up to DSD256, DXD, 130dB DR, ES9028PRO chipset with superior Mytek implementation (HAT (tm) Harmonic Audio Tuning)
MQA HI-RES DECODER: Built-in hardware MQA decoder, full unfolding to original sample rate
DIGITAL DAC INPUTS: USB2 Class2 (OSX, Linux driverless, all formats up to 384k, DSD256), 2x S/PDIF, 1 Toslink optical (PCM up to 24/192k, up to DSD64 DOP, MQA)
ADDITIONAL DIGITAL INPUTS: Bluetooth 5 and Roon Ready network endpoint DAC input - PCM384k, DSD256, MQA.
ANALOG PREAMPLIFIER INPUTS: Line-level input (10k input impedance) or Phono M/M, relay-controlled. Fully analog signal path to output.
2x USB3/2 ports: Can be used for all music files on FAT/NTFS/exFAT drives or USB sticks (SSD is recommended due to the 1A current limit), or additional USB DACs for additional Roon zones (2 units or more can be connected if a USB hub is used)
ANALOG OUTPUTS: RCA, balanced XLR, simultaneous, 10 Ohm output impedance
CLOCK: Mytek Femtoclock Generator(tm) 0.82ps internal jitter
HEADPHONE OUTPUTS: Reference high-current, high-transient headphone amplifier, 500mA, 6 Watt, two headphone jacks, designed to drive difficult-to-drive headphones. Balanced operation with a 1/4” to 4-pin XLR adapter
VOLUME CONTROL: Choose between a 1dB-step analog attenuator or a 1dB-step 32-bit digital attenuator with a purist relay bypass.
INTERNAL STORAGE: 4TB internal SSD (approx. 6000 CDs). The internal storage is part of the system SSD on the main CPU board. It is fixed and cannot be upgraded by the user. The user accesses the internal storage as a network drive.
POWER SUPPLY: The 90W linear power supply with toroidal transformer powers the DAC and the Intel i5 CPU via separate windings. Automatic voltage detection
Warranty: 2 years (6 years with registration)
Technical Data

Dimensions (WxDxH): 216x225x44 mm
Weight: 3 kg
