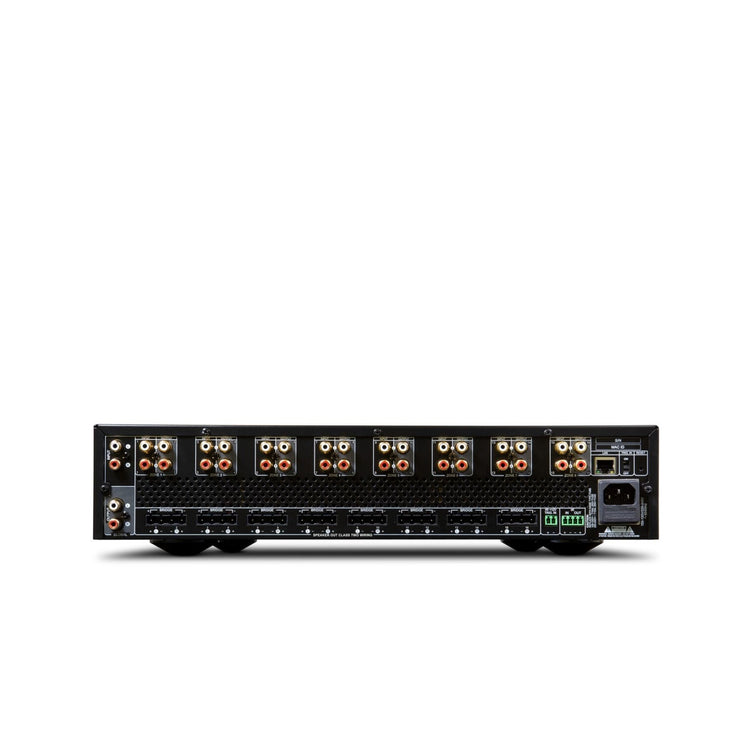

16-CHANNEL AMPLIFIER FOR PROFESSIONAL SOUND SYSTEMS

Flexible application options

The extremely robust CI 16-60 DSP uses a modified version of the proven Hypex UcD amplifier stage. It is valued for its reliable operation even under difficult loads and with long cable runs, as well as for its extremely low distortion and noise in the audible range. The amplifier features analog global stereo RCA inputs and outputs, as well as a separate RCA input and output for each channel. By looping the audio signal to all inputs, multiple amplifiers can be easily controlled in larger installations.

Configuration and calibration via network

The 16-channel amplifier is integrated into the network via a LAN connection and is also controlled via this interface. A web-based user interface is available to the installer for configuring and calibrating the amplifier. It provides access to the digital multi-channel signal processing (DSP) and thus allows for detailed control of all important parameters.

A virtual patch bay allows every input to be routed to one or more outputs without the need for physical cable connections. Furthermore, the user interface provides information on operating temperature and power supply status, and offers basic troubleshooting functions such as power cycling, factory resets, and firmware updates.

Main features

Configuration and calibration via web-based user interface

16 amplifier channels, each with 60 watts of continuous power into 8 Ω

Bridgeable – every adjacent pair of channels can be bridged for 140 watts of output power into 8 Ω

Typical NAD sound characteristics

Ideal for high-quality multi-room audio installations

Handles long cable runs and demanding speaker loads with ease

Analog global stereo RCA inputs and outputs

Speaker connection via PHOENIX terminals

12-volt trigger input

IR in/out

Prepared for 19-inch rack mounting

Height: 2U

Handles long cable runs and demanding speaker loads with ease

Low power consumption (0.5 W standby)

Auto-on with signal sensing

Continuous output power

at 8 Ω:
16 x 60 W (0.05% THD, 1 kHz)
65 W (0.05% THD, 1 kHz, two channels driven)

at 4 Ω:
16 x 65 W (0.05% THD, 1 kHz)
105 W (0.05% THD, 1 kHz, two channels driven)

at 8 Ω bridged:
8 x 140 W (0.05% THD, 1 kHz)
240 W (0.05% THD, 1 kHz, two channels driven)

Total harmonic distortion (1 to 50 W, 4 and 8 Ω):
<0.05% (at 20 Hz – 3 kHz), <0.2% (at 3 – 20 kHz)

Clipping power (all channels driven):
60 W (at 1 kHz, 8 Ω, 1% THD)

Clipping power (bridged mode, 8 Ω):
150 W (1 kHz, 1% THD, all channels driven)
250 W (1 kHz, 1% THD, two channels driven)

Dynamic power (all channels driven):
65 W at 8 Ω
125 W at 4 Ω

Dynamic power (two channels driven):
70 W at 8 Ω
125 W at 4 Ω

Dynamic power (bridged mode, all channels driven):
270 W at 8 Ω

Dynamic power (bridged mode, two channels driven):
280 W at 8 Ω

Maximum output current:
15 A (1 Ω, 1 ms)

Damping factor:
110 (at 8 Ω, 20 to 1,000 Hz)

Input sensitivity:
760 mV (for 50 W at 8 Ω, volume at maximum)

Maximum undistorted input level:
2.9 V

Frequency response:
20 Hz – 20 kHz ±1 dB

Channel separation:
60 dB (1 kHz)
55 dB (10 kHz)

Signal-to-noise ratio, A-weighted:
80 dB (500 mV input signal, at 1 W/8 Ω)

Input level for auto-power on (one channel with signal):
3 ± 0.5 mVrms (at 100 Hz to 10 kHz)

Trigger input level:
3 – 30 V DC

Standby power consumption:
<0.5 W

Dimensions* (W x H x D):
483 x 100 x 435 mm

Weight:
10.3 kg
