The secure transmission of digital data streams depends on achieving an accurate impedance within the transmission chain. The S/PDIF transmission standard specifies a 75-ohm coaxial cable, but it is surprising how few cables meet this specification.

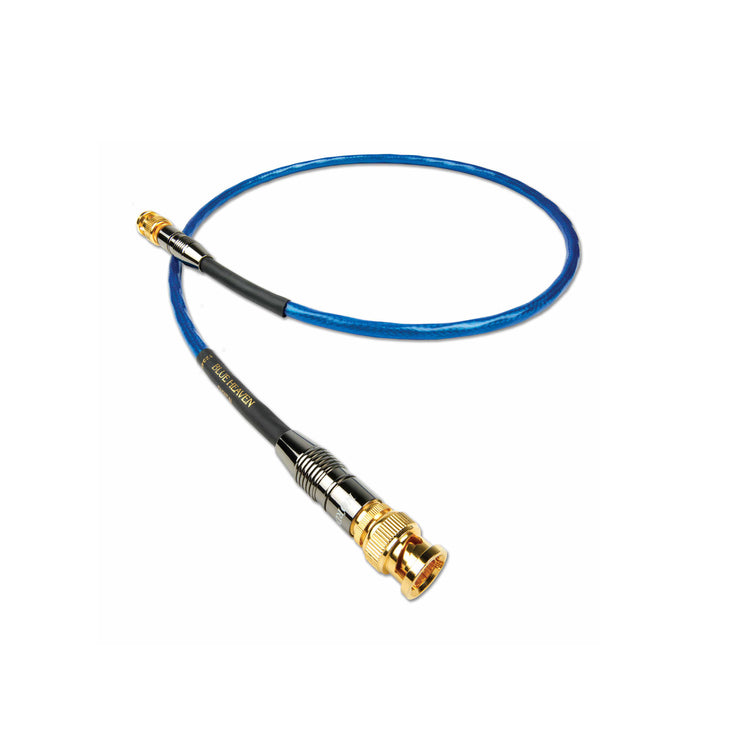

The Blue Heaven Digital Interconnect is a true 75-ohm conductor. Using a coaxial Micro Mono-Filament construction, this advanced topology allows us to achieve superior electrical performance and geometric accuracy regardless of cable length. The Blue Heaven Digital Interconnect ensures high-speed, low-loss characteristics, and thanks to its BNC termination, the 75-ohm standard is maintained across the connections as well. Each BNC connector comes with a gold-plated RCA adapter, ensuring the cable's performance remains consistent across any combination of coaxial inputs or outputs. To cover even more applications, this cable is also available in a BNC-to-3.5mm mono mini configuration.

Insulation:
Fluorinated Ethylene Propylene (FEP)

Construction:
Mechanically tuned spacing, Micro Mono-Filament, coaxial design

Conductors:
1 x 24 AWG

Material:
Silver-plated 99.9999% solid OFC core

Capacitance:
16pF/ft

Impedance:
75 Ohm

Overall shield coverage:
95%

Velocity of propagation:
85%

Termination:
Gold-plated true 75 Ohm BNC to gold-plated true 75 Ohm BNC or gold-plated 3.5mm mono mini (gold-plated BNC to RCA adapters included)
