Frey 2 Specialty cables are the solution that NAIM® owners have been waiting for for decades: a way to upgrade their coveted components. Utilizing Nordost’s patented technology and design philosophy, Frey 2 Specialty cables provide a transformative improvement to NAIM® electronics.

Frey 2 Specialty cables use Nordost’s proprietary Dual Mono-Filament construction, first introduced in the legendary Valhalla reference cables, to create a virtual air dielectric with an elegantly engineered suspension system. Combined with fully shielded, silver-plated, solid core OFC conductors and FEP insulation throughout, the result is the ideal electrically and mechanically controlled construction for ultra-fast, low-loss signal transfer. This premium cable promises to expand the musicality of your system, allowing NAIM® equipment to reach its full performance potential.

Frey 2 Specialty cables are available in a variety of configurations and terminations to accommodate a wide range of components:

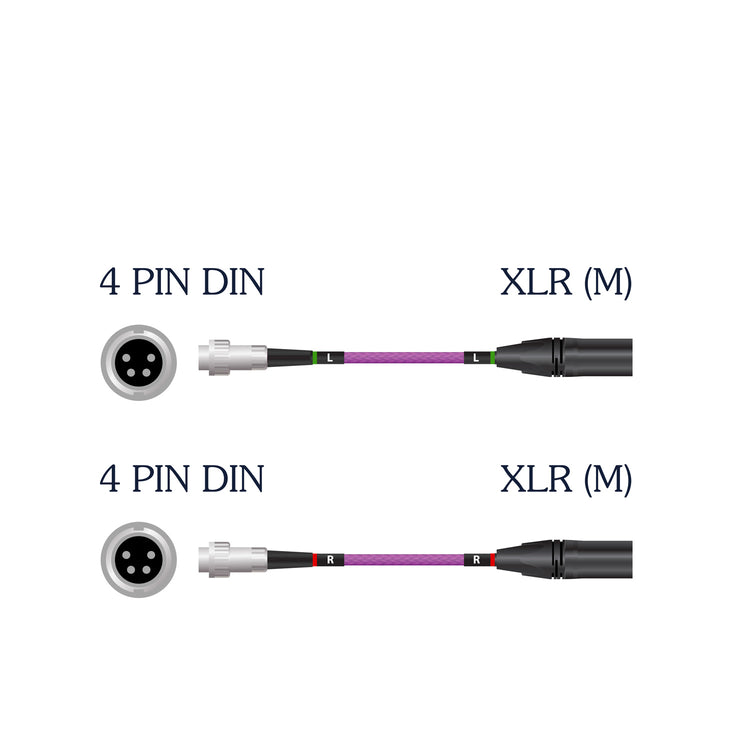

FREY 2 SPECIALTY 4 PIN DIN TO XLR (M) CABLE PAIR

Use from:

NAC 552 PS to NAP 500
Supercap to NAP 300
SNAXO 362 to NAP 300 or NAP 500 (uses three pairs)
SNAXO 242 to NAP 300 or NAP 500 (uses two pairs)
FREY 2 SPECIALTY 4 PIN DIN TO XLR (M) CABLE

Use from:

Supercap to NAP 250
Highcap to NAP 250
SNAXO 242 to NAP 250 (uses two cables)
SNAXO 362 to NAP 250 (uses three cables)
FREY 2 SPECIALTY 5 PIN DIN TO 5 PIN DIN (240) CABLE

Use from (SNAIC applications):

NAC 552 PS to NAC 552 Pre
Supercap to NAP 252
NAC 252 to Superline
High-Cap to SNAXO 362, SNAXO 242, NAC 282 or NAC 202
Flat-Cap to SNAXO 362, SNAXO 242, NAC 282 or NAC 202
FREY 2 SPECIALTY 4 PIN DIN TO 4 PIN DIN CABLE

Use from (SNAIC applications):

NAC 552 PS to NAC 552 Pre
Supercap to Hi-Cap
NAP 200 power amplifier to NAC 282 preamplifier or NAC 202 preamplifier
High-Cap to NAP 200 power amplifier
Flat-Cap to NAP 200 power amplifier

Insulation:
Fluorinated Ethylene Propylene (FEP)

Construction:
Mechanically tuned lay, length and Dual Mono-Filament design

Conductors:
5 x 24 AWG

Material:
Silver-plated 99.99999% solid OFC core

Capacitance:
28.0 pF/ft

Inductance:
0.055 μH/ft

Overall shield coverage:
97%

4-pin DIN to Neutrik XLR (male) set.
4-pin DIN to Neutrik XLR (male)
5-pin DIN (240) to 5-pin DIN (240)
4-pin DIN to 4-pin DIN
