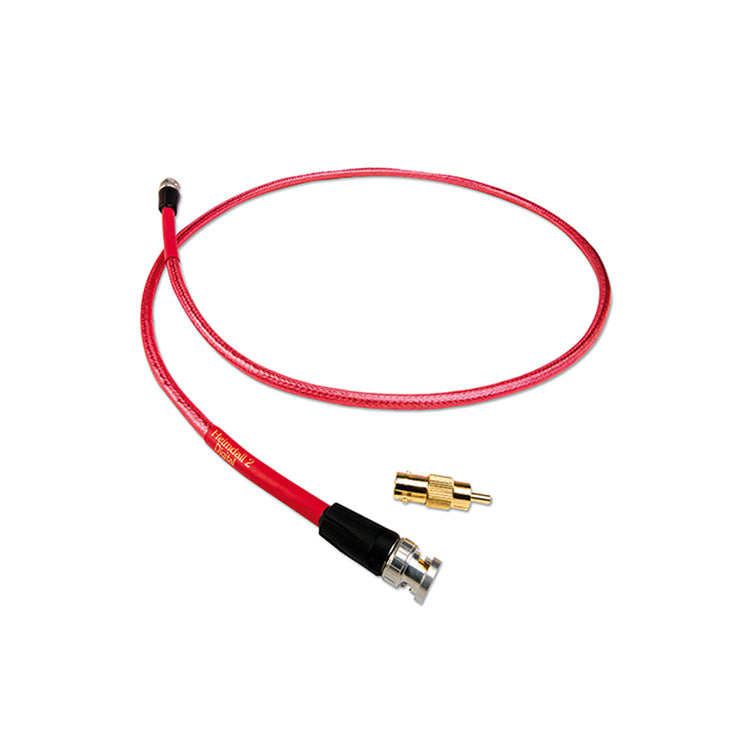

Digital data transmission requires precise impedance matching of cables and connectors. Heimdall 2 S/PDIF and AES/EBU cables are optimized for digital signal transmission, utilizing a silver-plated solid core OFC conductor suspended in our proprietary precision Dual Mono-Filament construction. In the S/PDIF cable, this technology is combined with dedicated BNC/RCA connectors, creating a true 75-ohm signal path that meets the tight tolerance requirements necessary for clocking and handling digital outputs. The AES/EBU cable, on the other hand, is fitted with impedance-matched XLR connectors, providing a true 110-ohm signal path for digital data, resulting in clearly audible sonic and musical benefits. The result is an ultra-high-speed, low-loss cable specifically designed to deliver the best possible performance from today's high-resolution digital audio sources. They may only be “ones” and “zeros,” but poor impedance matching has a dramatic effect on the accuracy with which they are passed from one electronic device to another. Nordost’s ultra-tight tolerance digital transmission solutions get it exactly right, sonically and musically.

Insulation:
Fluorinated Ethylene Propylene (FEP)

Construction:
Mechanically tuned spacing, length and Dual Mono-Filament, coaxial design

Conductors:
1 x 20 AWG

Material:
Silver-plated 99.99999% solid core OFC

Capacitance:
15.0 pF/ft

Impedance:
75 Ohms

Overall Shield Coverage:
97%

Velocity of Propagation:
88%

Termination:
Gold-plated true 75 Ohm Neutrik BNC. Gold-plated BNC to RCA adapter included.

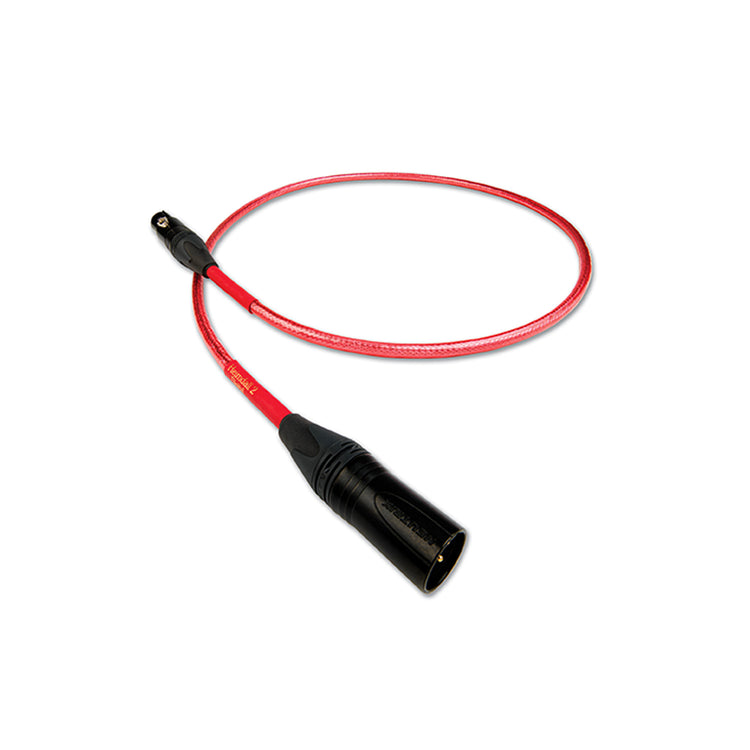

AES/EBU – 110 OHMS

Insulation:
Fluorinated Ethylene Propylene (FEP)

Construction:
Mechanically tuned spacing, length and Dual Mono-Filament, twin-axial design

Conductors:
2 x 20 AWG

Material:
Silver-plated 99.99999% solid core OFC

Capacitance:
10.7 pF/ft

Impedance:
110 Ohms

Overall Shield Coverage:
97%

Velocity of Propagation:
88%

Termination:
Gold-plated true 110 Ohm Neutrik XLR
