A large part of the electrical noise in hi-fi systems is caused by shortcomings in the power domain. These shortcomings can be caused by airborne pollution on the AC line, partially caused by the increasing amount of Bluetooth, Wi-Fi, and cellular signals. Airborne pollution can manifest in the form of high-frequency interference, noise, and stray magnetic fields, leading to contamination of the AC lines. A poor or "dirty" ground causes more power shortcomings than most people realize. Without an effective grounding point, the entire foundation of your sound system is compromised—and unfortunately, most listening rooms simply do not have access to a dedicated line attached to a ground rod. In these cases, a simple, effective, and internal option is required: Nordost's QKORE ground unit.

The QKORE is a parallel grounding device that provides an artificial, "clean" earth for hi-fi audio systems using both electrical and mechanical approaches. This unique product combines Nordost's patented Mono-Filament technology with custom-made Low-Voltage Attractor Plates (LVAPs) consisting of a proprietary metal alloy and a passive electronic circuit to shunt high-frequency stray noise and voltage-generated magnetic fields to a manufactured ground point, leaving a clean reference. This passive system is housed in a mechanically tuned case and equipped with gold-plated WBT binding posts that easily connect each component to an artificial ground. By providing a balanced and very "clean" grounding point, byproducts of imperfections in the electrical balance between voltage and ground are no longer added to other contaminants, which significantly increases the performance of high-quality audio circuits.

Nordost's QKORE is available in three different models. The QKORE1 was specifically designed as a parallel ground for use with Nordost's QBASE distribution block. By connecting the QBASE to the single binding post of the QKORE1, an effective, alternative ground is provided on the primary side of the power supply. The QKORE3 is named after its three available binding posts, which allow you to ground each component in your system on the secondary side of a power supply, where the audio circuitry is located. For audiophiles who have monoblocks in their system or are looking for a complete solution, Nordost offers the QKORE6, which allows for grounding all elements of your sound system to its 6 binding posts, including one ground for your distribution block, two grounds for the left and right channels of your monoblocks, and three grounds for additional audio components.

To complete this comprehensive grounding system, Nordost has also developed a dedicated QKORE Wire, which is engineered to provide the path of least resistance to ground for high-frequency, low-voltage stray potentials that can impair the performance of your sound system. The QKORE Wire is a mechanically tuned cable that uses Nordost's patented Micro Mono-Filament technology, combined with extruded FEP insulation, and is constructed with a 16 AWG, silver-plated, solid-core OFC conductor. The QKORE Wire can be terminated with the following connectors: spade, banana, male XLR, female XLR, BNC, and RCA (other termination options available).

The QKORE grounding system is the most effective and comprehensive grounding solution on the consumer electronics market. When introduced into a hi-fi audio system, the results are immediate and dramatic: the noise floor drops, the increase in harmonic accuracy and clarity is unmistakable, and the overall musicality of the system's performance is enhanced.

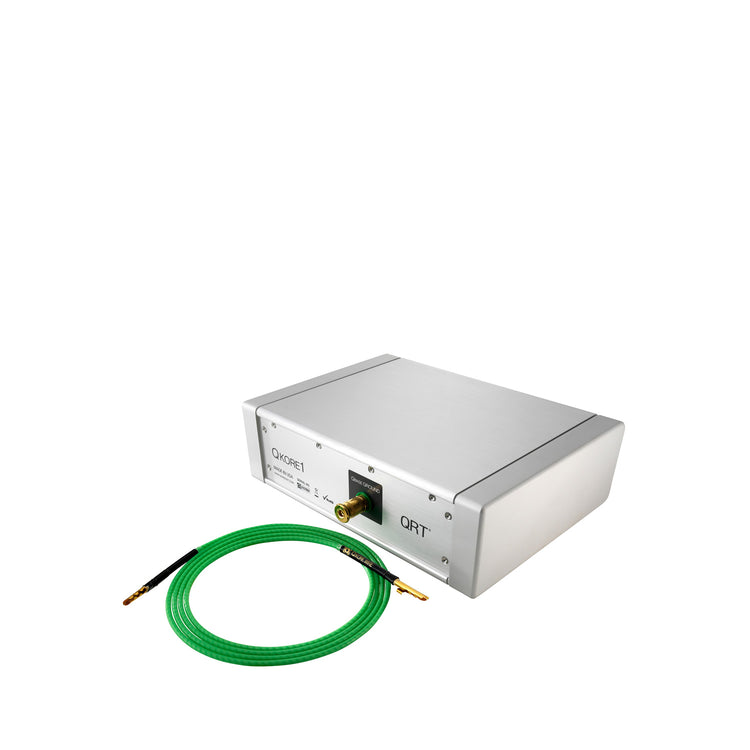

QKORE1:
-Equipped with a 2 m banana-to-banana QKORE wire.

-Equipped with a "QBASE Ground" binding post for grounding your distribution block.

-Provides an effective ground for the primary side of the power supply.

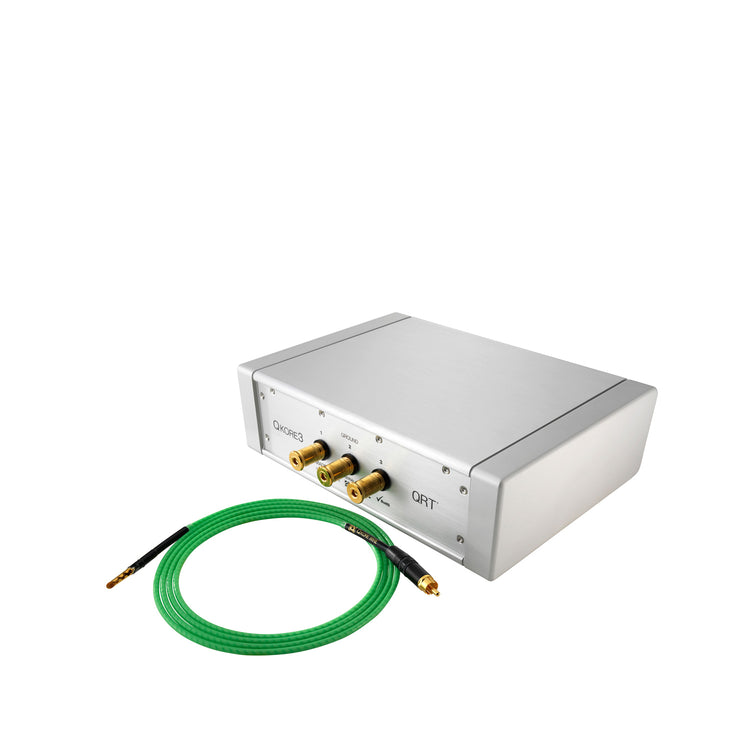

QKORE3:
-Equipped with a 2 m RCA-to-banana QKORE wire.

-Equipped with three multi-use binding posts for grounding your audio circuits.

-Grounds system components on the secondary side of the power supply, where the audio circuit resides.

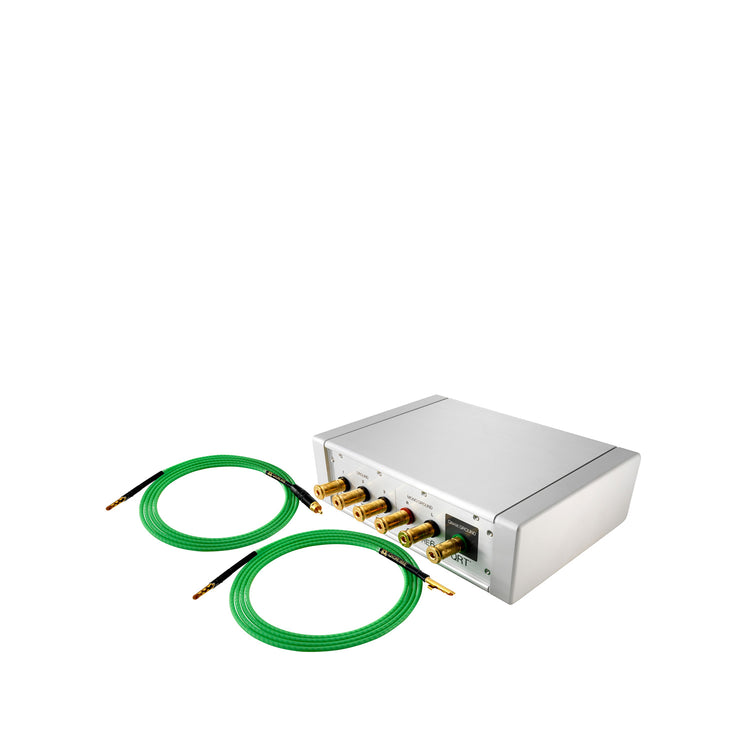

QKORE6:
-Equipped with one 2 m banana-to-banana QKORE wire and one 2 m RCA-to-banana QKORE wire.

-Equipped with three multi-use binding posts for audio circuits, two binding posts for left and right monoblocks, and one "QBASE Ground" binding post for grounding your distribution block.

-Provides an effective ground for the primary side of the power supply for a distribution block, as well as the secondary side of the power supply for system components, including those with separate left and right chassis.

Dimensions (WxHxD):
270 x 80 x 200 mm (225 mm with binding post)

QKORE1 weight:
5.8 kg

QKORE3 weight:
5.8 kg

QKORE6 weight:
7.7 kg
