RED DAWN SPECIALTY CABLES

Red Dawn Specialty Cables are the solution NAIM® owners have been waiting for for decades: a way to upgrade their coveted components. Utilizing Nordost’s technology and design philosophy, Red Dawn Specialty Cables provide an impressive improvement to NAIM® electronics.

Red Dawn Specialty Cables utilize technology from Nordost’s Leif series to create a custom aftermarket solution. This includes a fully shielded design using six heavy-gauge 24 AWG, silver-plated 99.9999% OFC solid core conductors. These conductors are precisely wound in a minimum cross-section configuration to eliminate unnecessary fillers or padding elements, and then insulated with high-grade FEP, selected for its superior dielectric performance. The result is a high-speed, low-loss cable that allows NAIM® components to take their performance to the next level.

Red Dawn Specialty Cables are available in various configurations and terminations to suit a wide range of components:

RED DAWN SPECIALTY 4-PIN DIN TO XLR CABLE SET (M).

Use with:

NAC 552 PS to NAP 500
Supercap to NAP 300
SNAXO 362 to NAP 300 or NAP 500 (uses three pairs)
SNAXO 242 to NAP 300 or NAP 500 (uses two pairs)

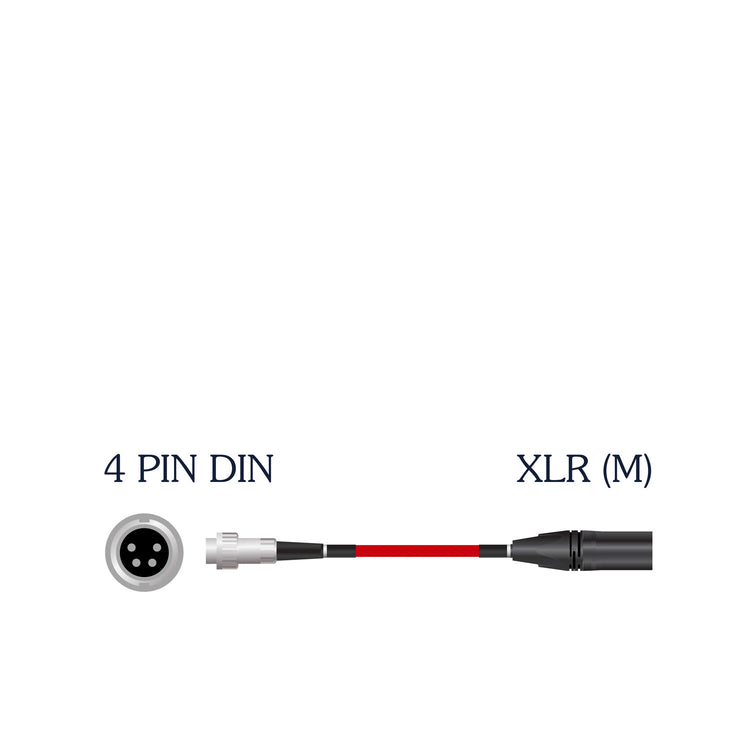

RED DAWN SPECIALTY 4-PIN DIN TO XLR CABLE (M).

Use with:

Supercap to NAP 250
Highcap to NAP 250
SNAXO 242 to NAP 250 (uses two cables)
SNAXO 362 to NAP 250 (uses three cables)

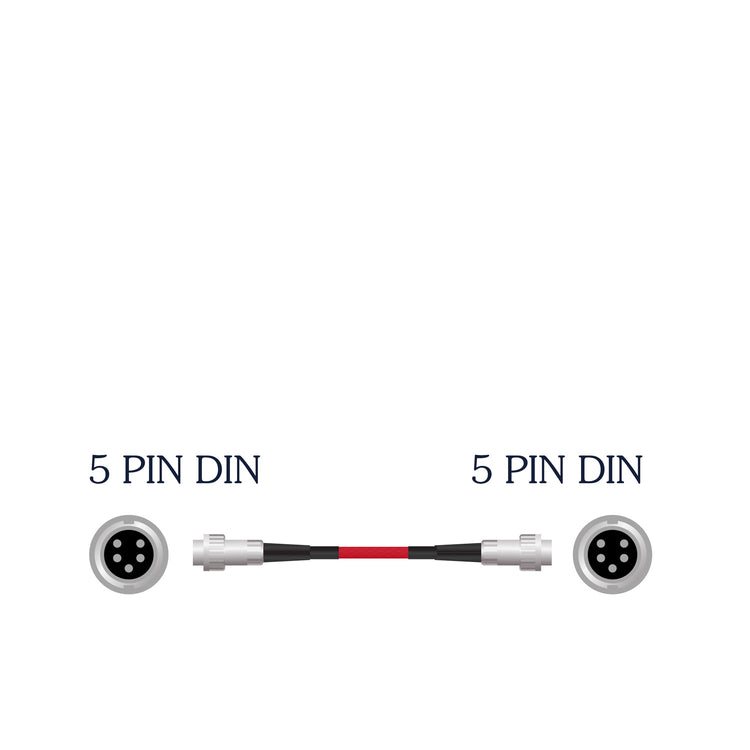

RED DAWN SPECIALTY 5-PIN DIN TO 5-PIN DIN (240) CABLE

Use from (SNAIC applications):

NAC 552 PS to NAC 552 Pre
Supercap to NAP 252
NAC 252 to Superline
High-Cap to SNAXO 362, SNAXO 242, NAC 282 or NAC 202
Flat-Cap to SNAXO 362, SNAXO 242, NAC 282 or NAC 202

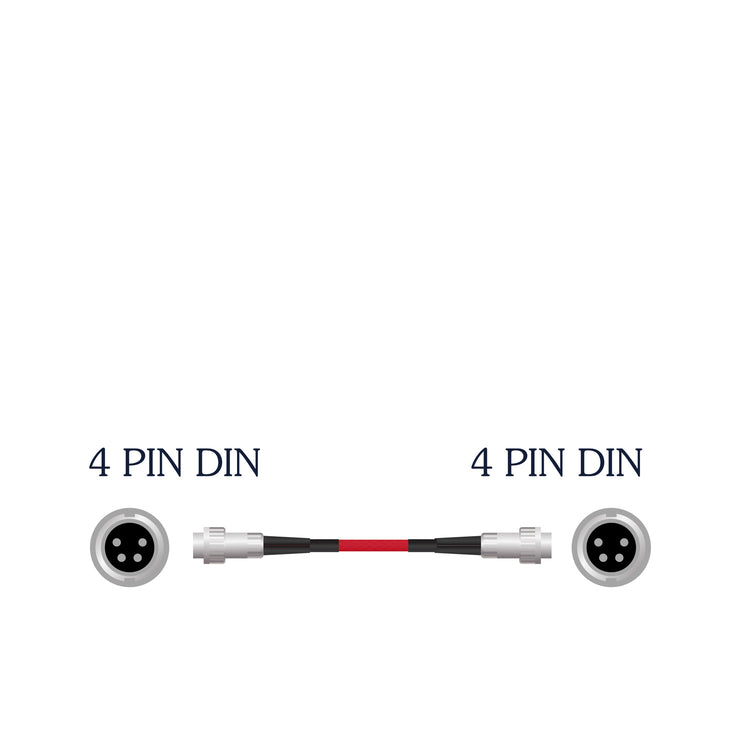

RED DAWN SPECIALTY 4-PIN DIN TO 4-PIN DIN CABLE

Use from (SNAIC applications):

NAC 552 PS to Supercap
Supercap to Highcap
NAP 200 power amplifier to NAC 282 preamplifier or NAC 202 preamplifier
High-Cap to NAP 200 power amplifier
Flat-Cap to NAP 200 power amplifier

Isolierung:
Fluoriertes Ethylenpropylen (FEP)

Konstruktion:
Mechanisch abgestimmtes Lay

Dirigenten:
6 x 24 AWG

Material:
Versilberter 99,9999 % massiver OFC-Kern

Kapazität:
60,0 pF/ft

Induktivität:
0,035 μH/ft

Gesamtschutzabdeckung:
95 %

4-poliges Din-auf-Neutrik-XLR-Set (männlich).
4 Pin Din auf Neutrik XLR (männlich)
5-Pin-Din (240) auf 5-Pin-Din (240)
4-Pin-Din auf 4-Pin-Din
