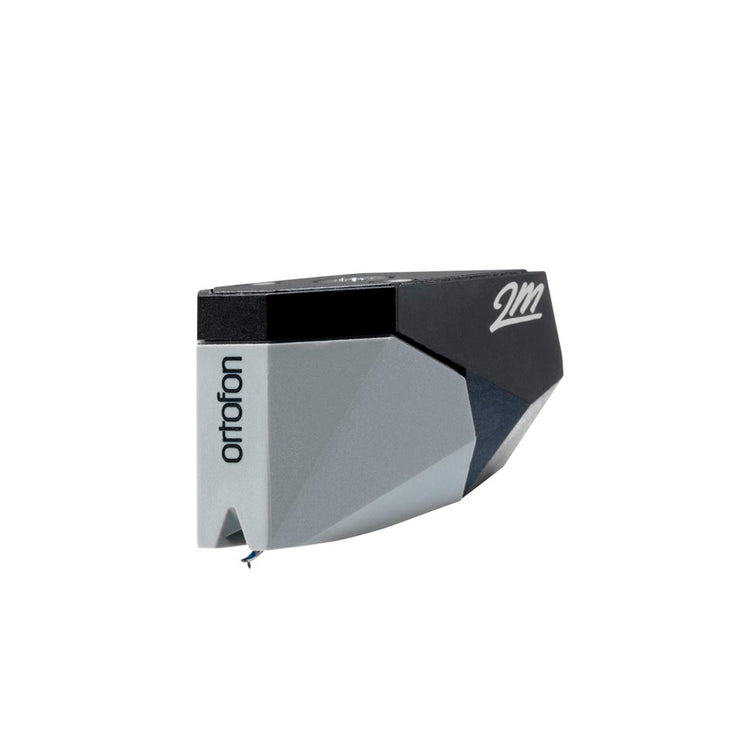

The 2M 78 features an improved engine, which provides a high level of sonic accuracy. The stylus tip is a spherical diamond, which is perfect for the playback of 78 RPM shellac records that require a larger stylus profile. The cartridge body is manufactured from Hopelex, which ensures high rigidity while simultaneously eliminating unwanted resonances.

2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making true mono playback possible on any stereo playback system.

The 2M Series offers excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamplifiers.

Cartridge type:
Moving Magnet

Compliance:
18 µm/mN

Stylus:
Spherical

Output voltage (mV):
4

Tracking ability:
70 μm

Recommended tracking force:
1.8 g

Recommended load impedance:
150 ohm

Frequency range at -3 dB:
20-20000 Hz

Color:
Black

Weight (kg):
0.03

Height of packaging (cm):
3

Length of packaging (cm):
12

Weight of packaging (kg):
0.03

Width of packaging (cm):
9
