Perfectly single-track on the go

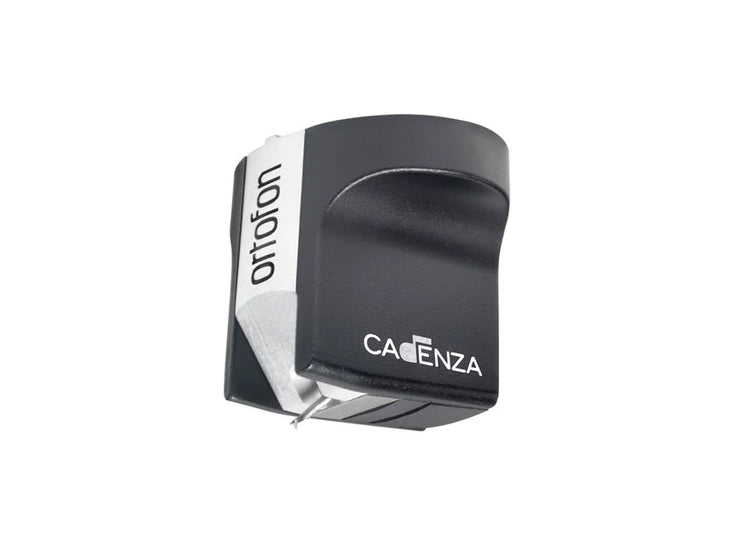

The Ortofon MC Cadenza Mono is, quite simply, THE cartridge for mono vinyl records with micro-grooves (from approx. 1950). A diamond with a sharper cut than is usual for mono cartridges minimizes distracting groove noise on worn and slightly damaged records. The resolution is superior to the spherical styli otherwise common in mono cartridges. A mono generator with only one winding produces an identical signal for both the right and left channels, thus allowing for unrestricted use in a two-channel system.

Technical specifications



Cartridge type:

MC (Low-Output Moving-Coil)

Output voltage:

0.45mV*

Amplifier connection:

Phono MC

Channel balance at 1 kHz:

-

Channel separation at 1kHz:

-

Channel separation at 15kHz:

-

Frequency range:

20-50,000Hz

Frequency response:

20-20,000Hz +3dB/-1dB

Tracking ability at 315Hz:

70µm**

Compliance:

12µm/mN

Rec. tonearm type:

medium-weight

Stylus type:

Fine Line, nude

Stylus tip radius:

r/R 8/40µm

Tracking force range:

22-27mN (2.2-2.7g)

Rec. tracking force:

25mN (2.5g)

Tracking angle:

20 degrees

Internal resistance, DC resistance:

5 Ohm

Rec. load impedance:

50-500 Ohm

Cartridge body material:

Stainless steel/aluminum

Height:

18mm

Weight:

10.7g

Special feature:

Pure silver wire coil

*at 1000Hz, 5cm/sec. **at recommended tracking force
Height = distance from stylus tip to top plate

Herstellerangaben:

Ortofon A/S
Stavangervej 9
DK-4900 , Nakskov
Denmark
