Good things come to those who wait

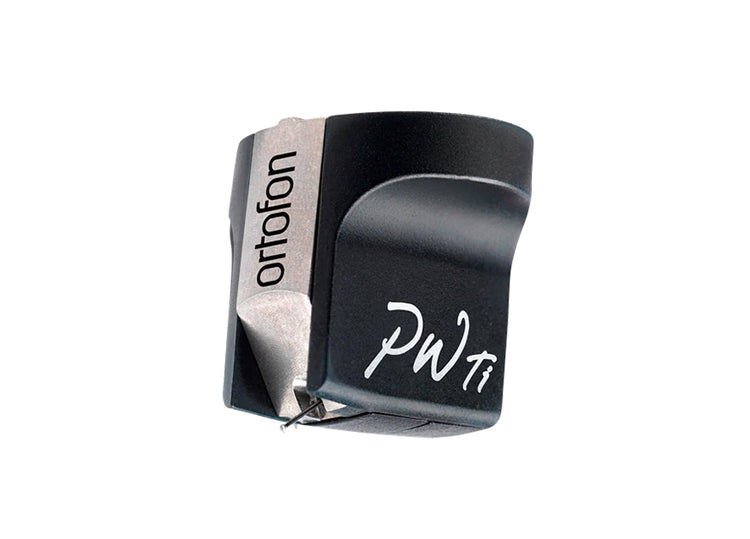

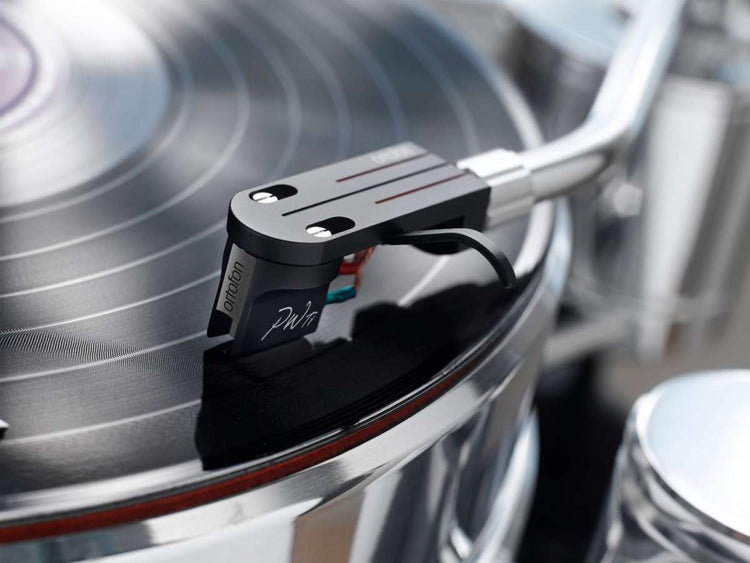

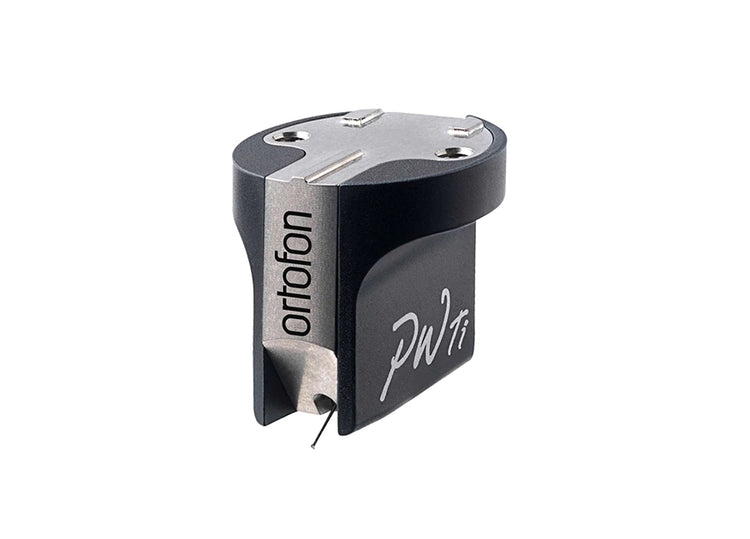

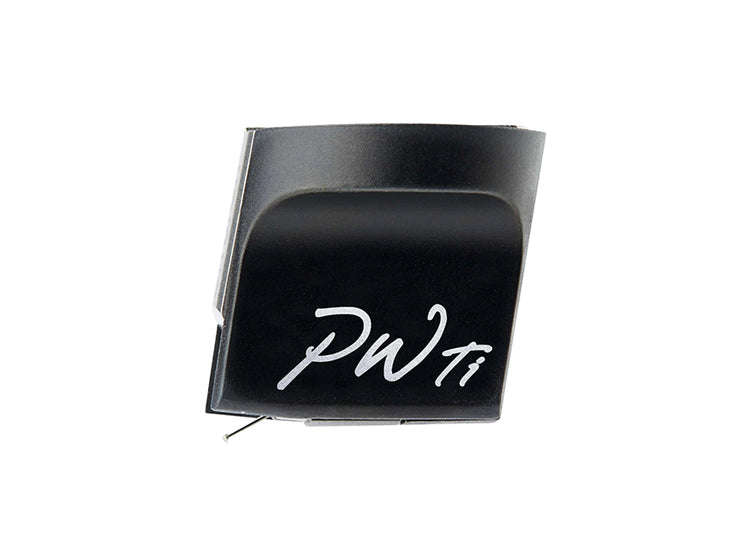

The Ortofon MC Windfeld Ti Heritage is a special edition model in honor of long-time chief engineer Per Windfeld. The generator housing, manufactured using the Selective Laser Melting (SLM)* process, reduces unwanted vibrations to a minimum. The SLM process was first introduced in 2007 with the 90th anniversary Ortofon MC A90 Heritage cartridge. With the Ortofon MC A95 Heritage, offered for Ortofon's 95th anniversary, the SLM technology was refined by using titanium as the material—just as it is in the Ortofon MC Windfeld Ti Heritage. The Ortofon MC Windfeld Ti Heritage also shares a diamond with the highly acclaimed Replicant 100 profile in a specially polished version with both of these anniversary cartridges.

*SLM process: Powdered material is applied in layers only a few nanometers thick and fused layer by layer with a laser. This allows for the creation of internal cavities, such as cable channels, in components that could not be achieved through subsequent drilling or milling. Homogeneity and specific density are similar to those of the base material. The resulting component (cartridge housing) is very resistant to vibration, which is conducive to controlled playback across the entire frequency range.

Technical Data



Cartridge type:

MC (Low-Output Moving-Coil)

Output voltage:

0.2mV*

Amplifier connection:

Phono MC

Channel balance at 1 kHz:

<0.5dB

Channel separation at 1 kHz:

>25dB

Channel separation at 15 kHz:

>20dB

Frequency range:

10-50,000Hz

Frequency response:

20-20,000Hz ±2dB/-1dB

Tracking ability at 315Hz:

90µm**

Compliance:

13µm/mN

Rec. tonearm type:

medium mass

Stylus type:

Ortofon Replicant, nude

Stylus tip radius:

r/R 5/100µm

Tracking force range:

20-25mN (2.0-2.5g)

Rec. tracking force:

23mN (2.3g)

Tracking angle:

23 degrees

Internal impedance, DC resistance:

7 Ohm

Rec. load impedance:

>10 Ohm

Cartridge body material:

Stainless steel/SLM**** titanium

Height:

18mm

Weight:

11g

Special features:

Aucurum*** coil wire, boron cantilever, Field Stabilizing Element, specially polished diamond

*at 1000Hz, 5cm/sec. **at recommended tracking force. ***Aucurum: Gold-plated, monocrystalline oxygen-free 6N pure copper wire (OFC 99.9999%)
Height = distance from diamond tip to top plate
