The SPU Classic G MkII is known for its dynamic and powerful sound reproduction

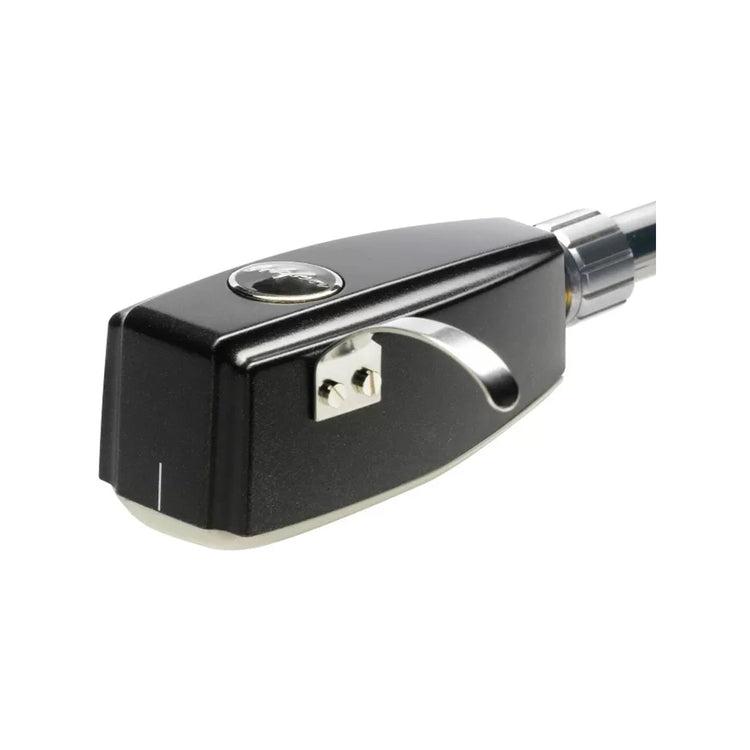

The SPU Classic G MkII is a moving-coil cartridge with an 18 µm spherical stylus profile.
The SPU Classic series embodies the essence of the original moving coils and is a perfect solution for the playback of both early and modern and contemporary stereo recordings.

The ST-7 transformer is a perfect match for the SPU Classic G MkII cartridge.

Cartridge type:
MC (Low-Output Moving-Coil)

Tonearm mounting:
SME bayonet

Output voltage:
0.2mV*

Amplifier connection:
Phono MC

Channel deviation at 1 kHz:
<1dB

Channel separation at 1kHz:
>20dB

Channel separation at 15kHz:
>10dB

Frequency range:
20-25,000Hz

Frequency response:
20-20,000Hz +2/-1dB

Tracking ability at 315Hz:
>65µm**

Compliance:
8µm/mN
Rec. tonearm type: medium and heavy

Stylus type:
spherical, nude

Stylus tip radius:
R 18µm

Tracking force range:
30-50mN (3.0-5.0g)

Rec. tracking force:
40mN (4.0g)

Tracking angle:
20 degrees

DC resistance:
2 Ohm

Rec. load impedance:
>10 Ohm

Housing material:
wood/resin

Weight:
30g
