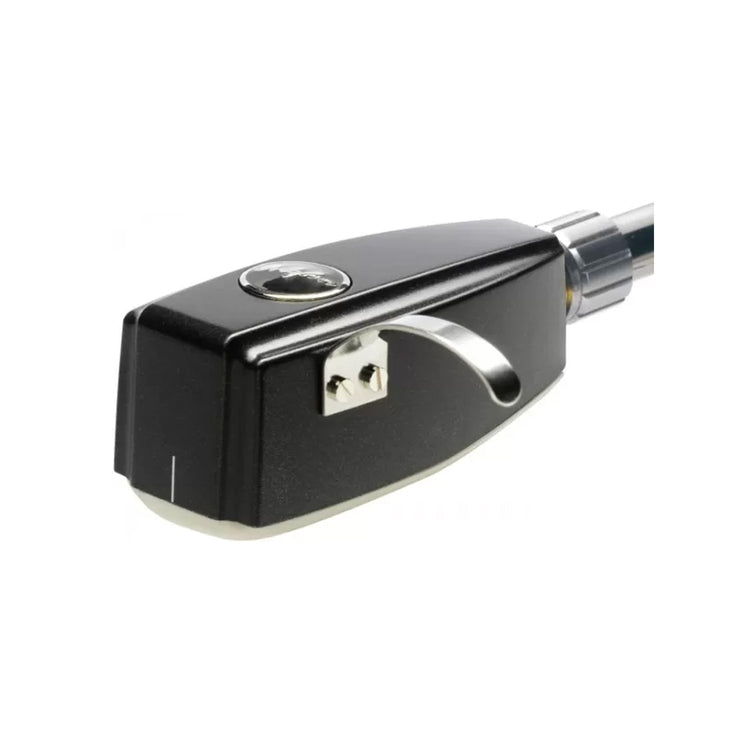

The SPU Classic GE MkII is known for its dynamic and powerful sound reproduction

The SPU Classic GE MkII is a moving coil cartridge with an elliptical stylus profile. The SPU Classic series embodies the essence of the original moving coils and is a perfect solution for the playback of both early and modern and contemporary stereo recordings.
The elliptical stylus profile of the SPU Classic GE MkII provides a more detailed sound reproduction and more extensive imaging.

The ST-7 transformer is a perfect match for the SPU Classic GE MkII cartridge.

Cartridge type:
MC (Low-Output Moving-Coil)

Tonearm mounting:
SME bayonet

Output voltage:
0.2mV*

Amplifier connection:
Phono MC

Channel balance at 1 kHz:
<1dB

Channel separation at 1 kHz:
>20dB

Channel separation at 15 kHz:
>10dB

Frequency range:
20-25,000Hz

Frequency response:
20-20,000Hz +3/-2dB

Tracking ability at 315 Hz:
65µm**

Dynamic compliance:
8µm/mN

Rec. tonearm type:
medium and heavy

Stylus type:
elliptical, nude

Stylus tip radius:
r/R 8/18µm

Tracking force range:
30-50mN (3.0-5.0g)

Rec. tracking force:
40mN (4.0g)

Tracking angle:
20 degrees

Internal resistance:
2 Ohm

Rec. load impedance:
>10 Ohm

Housing material:
Wood/resin

Weight:
30g
