The SPU Classic N offers the same sound reproduction characteristics as the SPU Classic GM series

The SPU Classic N is sold without the integrated headshell unit.

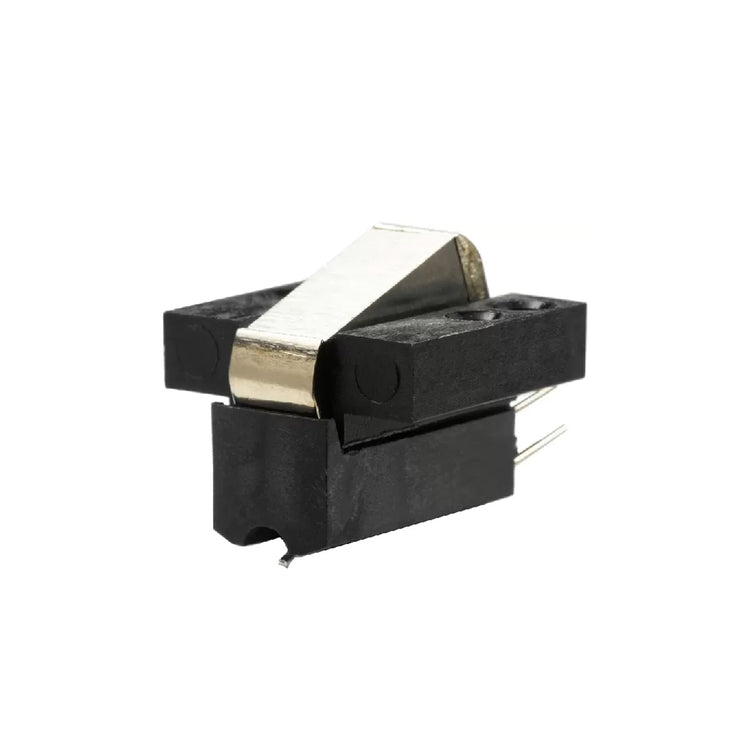

The SPU Classic N is a moving coil (MC) cartridge with an 18 µm spherical stylus profile.
Listeners who wish to mount the SPU Classic on a standard headshell can do so using the SPU N adapter.

Those who own vintage SPU-type headshells can use the Classic N to recreate an authentic and functional SPU cartridge. Note: Vintage SPU-type headshells are no longer available.

The ST-7 transformer is a perfect match for the SPU Classic N cartridge.

Cartridge type:
MC (Low-Output Moving-Coil)

Tonearm mounting:
Headshell with half-inch mount

Output voltage:
0.2mV*

Amplifier connection:
Phono MC

Channel balance at 1 kHz:
<1dB

Channel separation at 1kHz:
>20dB

Channel separation at 15kHz:
>10dB

Frequency range:
20-25,000Hz

Frequency response:
20-20,000Hz ±3dB

Tracking ability at 315Hz:
65µm**

Dynamic compliance:
8µm/mN

Rec. tonearm type:
medium and heavy

Stylus type:
spherical, nude

Stylus tip radius:
R 18µm

Tracking force range:
30-50mN (3.0-5.0g)

Rec. tracking force:
40mN (4.0g)

Tracking angle:
20 degrees

DC resistance:
6 Ohm

Rec. load resistance:
>10 Ohm

Housing material:
Aluminum

Weight:
13g
