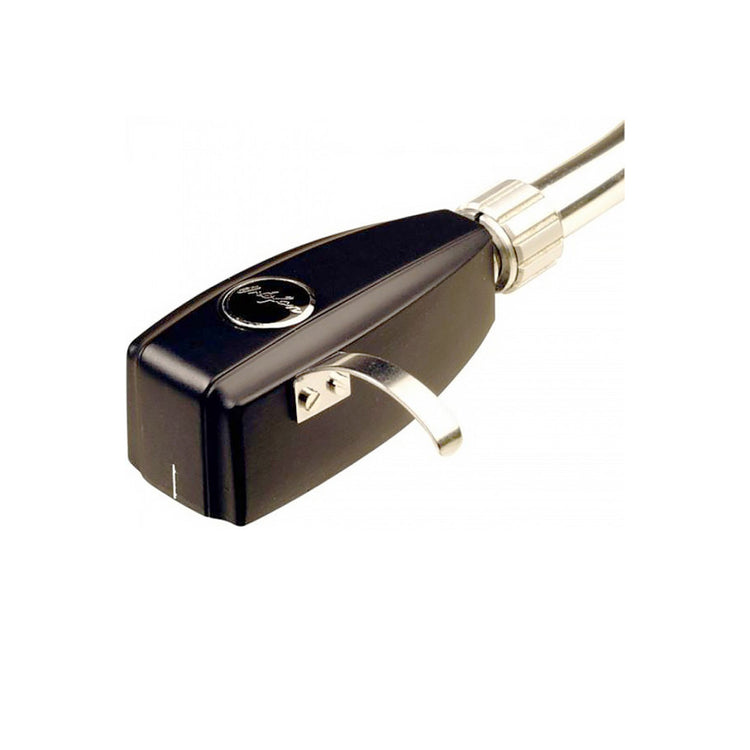

The SPU Mono CG 65 Di MkII for the reproduction of early 65 µm mono and 78 rpm recordings

The Mono CG 65 Di MkII is an SPU-style moving coil cartridge with a spherical stylus profile. The CG 65 Di MkII offers an authentic method for reproducing these early recordings with a remarkable degree of sonic accuracy, regardless of the materials from which these discs were made.

This cartridge features a 1.5 mV output, making it suitable for use with a wide range of medium-gain moving coil transformers. The Ortofon ST-M25 moving coil transformer was designed exclusively for the SPU Mono CG 25 Di MkII and the SPU Mono CG 65 Di MkII.

Output voltage at 1000 Hz, 5cm/sec.:
1.5 mV

Frequency response:
20-15,000 Hz + 3/- 1 dB

Tracking ability at 315 Hz at recommended tracking force:
> 60 µm

Compliance, dynamic, lateral:
7 µm/mN

Stylus type:
Spherical

Stylus tip radius:
R 65 µm

Tracking force range:
4.0-5.0 g (40-50 mN)

Tracking force, recommended:
4.5 g (45 mN)

Tracking angle:
20°

Internal impedance, DC resistance:
6 Ohm

Recommended load impedance:
100 Ohm

Cartridge housing material:
Ground wood and resin composite

Coil wire material:
High-purity copper (OFC)

Color:
Matte black

Weight:
35 g
