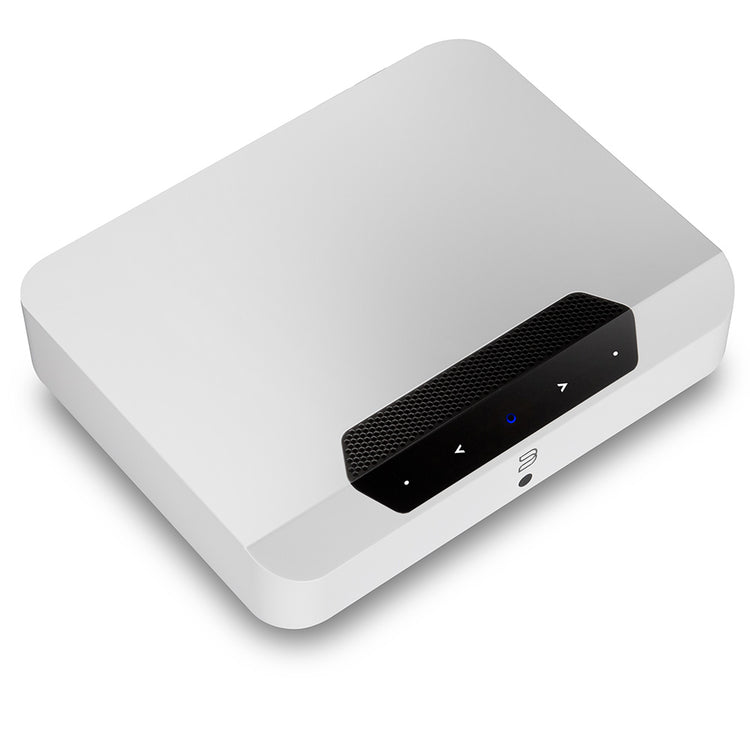

Compact Wireless Music Streaming Amplifier
The POWERNODE EDGE is the perfect entry point into the HiFi world of the streaming age. It combines streaming sources, control, and amplification in one device. Audiophile-grade components with up to 24-bit/192 kHz Hi-Res audio and wireless multi-room capabilities with smartphone control make the POWERNODE EDGE a great "building block" amplifier for starting, expanding, or completing a Hi-Res audio streaming system of any size.

• Easily power a pair of passive speakers
• 40 watts per channel with DirectDigital™ amplifier technology for 24-bit/192 kHz files
• A state-of-the-art 1.8 GHz Quad-Core ARM® Cortex A53 processor
• HDMI eARC connectivity
• Optical and analog digital input options, subwoofer output, and wireless Bluetooth® headphone output
• Dolby® Digital decoding
• Dual-band Wi-Fi, Gigabit Ethernet, and support for 2-way Bluetooth® aptX™ HD
• Stream high-resolution content from internet radio stations, cloud music services, or your own local music players
• Intuitive control with the BluOS Controller App
• Sleek capacitive touch panel for quick-access controls (play, pause, volume up/down, previous/next track)
• Includes an easy-to-install wall-mount bracket for various orientations
• IR remote learning capability - optional control with the RC1 remote control
• Connect to the BluVoice skill to allow voice assistants like Alexa, Google Assistant, and Siri to control players around the home.
• AirPlay 2 lets you play music or podcasts from wireless stereo components throughout the house – in sync.

JUST ADD SPEAKERS.
All you need to do is connect a pair of passive speakers to experience an incredible all-in-one HiFi solution. Connect wired sources, such as a TV or turntable, via HDMI eARC or the combined analog/digital input. Add the PULSE SUB+ wireless subwoofer for a powerful yet compact 2.1 stereo system or use the POWERNODE EDGE to power the rear channels of a wireless Bluesound surround sound system. With the BluOS Controller app, you can select songs from popular streaming services like Spotify, Tidal, Qobuz, SiriusXM, from your own music library via Apple AirPlay 2, aptX™ HD Bluetooth®, or even from a network-attached drive or USB hard drive.

COMPACT POWER
Bring your speakers to life with the high-performance, punchy 2 x 40-watt DirectDigital™ amplifier in the POWERNODE EDGE, which can effortlessly handle high-resolution 24-bit/192 kHz files and MQA-encoded tracks. Enjoy playback clarity ranging from densely layered heavy metal tracks to whisper-quiet dialogue in movies and TV shows. The POWERNODE EDGE independently decodes Dolby® Digital content and can also be used to power the rear channel speakers of a wireless home theater system.

SPACE-SAVING
Your oasis of sound doesn't have to take up all the space. With the POWERNODE EDGE, the days of bulky, oversized amplifiers are over. This small but mighty HiFi system is about the size of an average hardcover book and turns any room into a high-fidelity oasis.

HIGH-RESOLUTION FOR EVERY CORNER
The slim and compact form factor of the POWERNODE EDGE makes it ideal for secondary rooms such as offices and patios. Provide power plus streaming to speakers in every corner of your home and hide the POWERNODE EDGE using the included wall-mount bracket in spaces like closets or behind sofas, where it stays out of sight.

INTUITIVE CONTROL
Control is handled via the BluOS Controller app for iOS, Android, Mac, PC, or via the elegant capacitive touch panel with quick-access functions such as play, pause, volume up/down, and previous/next track. The POWERNODE EDGE connects to your home network via Wi-Fi or Ethernet. Hands-free control is possible with voice assistants like Siri, Alexa, and Google Voice. For professional smart home installers, fully functional drivers are available for Lutron, Crestron, RTI, Elan, and other common control systems.

Supported audio file formats
MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS

Supported Hi-Res audio file formats
FLAC, MQA, WAV, AIFF, MPEG-4 SLS

Supported multi-channel audio formats
Dolby® Digital

Native sampling rates
up to 192 kHz

Bit depth
16-24

Audio controls & EQ
BluOS Controller app

Signal-to-noise ratio
-91dBA

Distortion
THD+N, 0.008%

Amplification
DirectDigital™

Rated output power
40 W x 2 (8 ohms)

IHF dynamic power
80W (4 ohms) / 50W (8 ohms)

Minimum impedance
4 ohms

Operating system
BluOS

App controller operating systems
iOS, Android, Windows, macOS

Processor
ARM® Cortex™ -A53, quad-core, 1.8GHz per core

Supported network file sharing
Server Message Block (SMB) for up to 200,000 files

Album art supported
JPG, PNG

Music services and internet radio
23+

Voice control integrations
Amazon Alexa Skills; Actions on Google

Third-party integrations
AirPlay 2
Spotify Connect
Tidal Connect
Roon Ready

Control system integrations
Control4, Crestron, URC, RTI, ELAN, Lutron

BluOS home theater
Yes - rear surround channels

Power supply
Universal two-pin AC cord input (100-240AC)

Ethernet/LAN
Ethernet RJ45, Gigabit 1000 Mbps

Wi-Fi built-in
Wi-Fi 5 (802.11ac), dual-band

Bluetooth
Bluetooth 5.0 aptX HD

Bluetooth connectivity
Bidirectional (transmit and receive)

IR optical built-in
Built-in IR sensor - front panel with IR remote learning

IR input
3.5 mm jack

Optical/analog input
Combo - Mini TOSLINK/stereo 3.5mm

HDMI input
HDMI eARC

USB input
Type A (Fat32 formatted)

Headphone output
Bluetooth only

Subwoofer output
RCA x 1; wireless to PULSE SUB+

Speaker terminals
5-way binding post

Status indicator
LED

Play/pause button
Touch LED

Volume control buttons
Touch LED

Previous/next track buttons
Touch LED

Preset buttons
In-app

Chassis finishes

Black/white; matte satin paint

Included accessories
120V AC power cord
230V AC power cord
Ethernet cable
TOSLINK optical to 3.5 mm mini adapter
Metal mounting bracket
Metal mounting screw
Rubber foot mount
Safety/warranty guide
Quick setup guide

Maximum power consumption
210W

Storage conditions
-10°C to 50°C, 20% to 80% relative humidity

Operating conditions
0°C to 40°C

Product weight
1.37kg/3.02lbs

Product dimensions
219 x 44.5 x 193 mm
8.6 x 1.75 x 7.6 inches

Shipping weight
2.62kg/5.78lbs

Shipping dimensions
300 x 300 x 95 mm
11.8 x 11.8 x 3.74 inches
