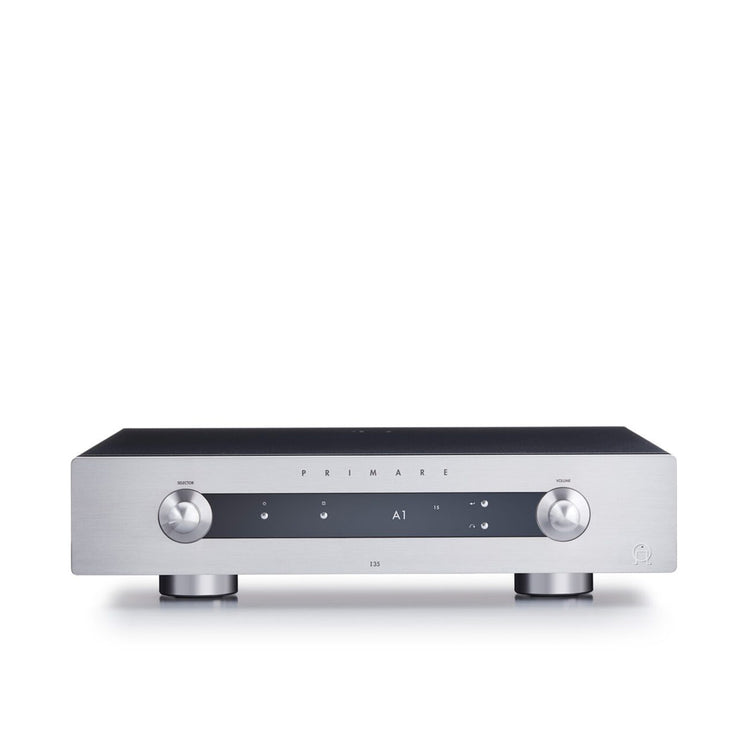

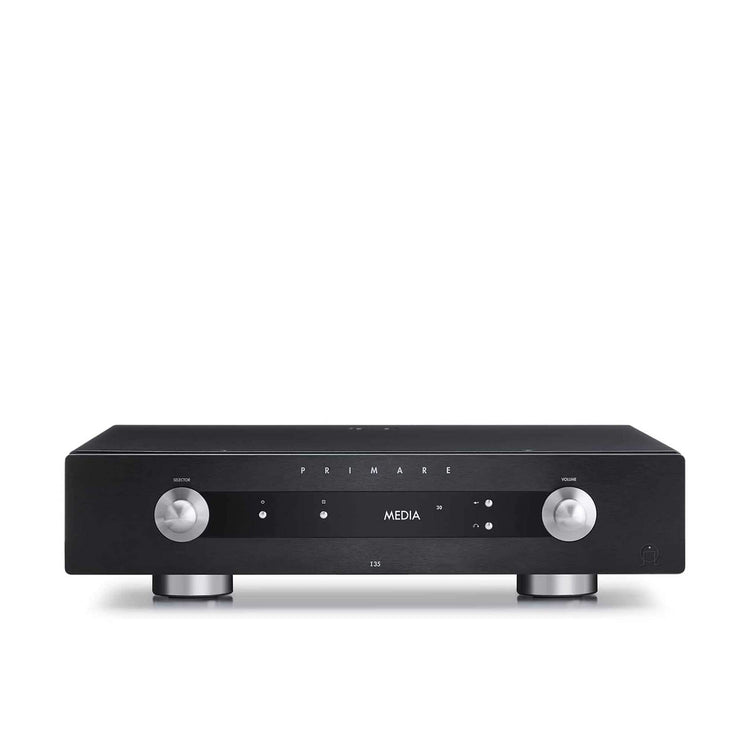

I35 DAC – modular integrated amplifier and digital-to-analog converter

The I35 DAC combines the DM35 digital-to-analog converter module with the award-winning I35 modular integrated amplifier platform, featuring our UFPD 2 amplification technology providing 150 watts of power per channel and balanced inputs, with the option to add the SM35 Prisma network player module at any time.

Technology
The I35 DAC modular integrated amplifier is the latest iteration of Primare's now legendary integrated amplifiers and is among the first to use our new UFPD 2 power system, a radical reworking of Primare’s award-winning UFPD all-analog Class-D technology.

Providing 150 watts at 8 ohms of absolutely linear UFPD 2 amplification across the entire audible bandwidth, the I35 DAC delivers a naturally fast, clean, and agile sound with an unprecedented ability to bring music to life.

In addition to two balanced XLR and three RCA analog inputs, the I35 DAC includes a full-featured DM35 digital-to-analog converter stage, which enables conversion of up to PCM 768 kHz/32 bit and DSD 256.

The modular design of the I35 DAC allows for the addition of the SM35 Prisma network player module to the amplifier at any time for unprecedented system customization.

The I35 DAC continues a Primare tradition of delivering amazing performance from compact and elegant integrated amplifiers for easy installation into virtually any living environment.

The look and feel of Scandinavia
We believe that every aspect of our products – the way they look, the satisfying feel of the controls – contributes to the overall experience of living with Primare. As a result, Primare products exude the hallmarks of Scandinavian design – simple, elegant designs with accessible and easy-to-understand functionality.
An example of this is our signature control knob, known throughout the industry for both its appearance and its feel in the hand when selecting an input or adjusting the volume. – or as we say lagom, not too much, not too little, everything in balance, proportion, and harmony.

Modular design and system building
We feel it is important to offer modularity whenever possible, to have exactly the right features now and in the future. Modular design is featured in the I25 and I35 modular integrated amplifiers, as well as the PRE35 modular preamplifier, all of which can be updated with DAC and Prisma modules, as well as the CD35 CD player, which can have the Prisma module added, either at the time of purchase or at a later date. As a result, we are able to offer a carefully considered selection of models and configurations to allow for equipment selection that best fits any system need. For example, a CD35 with Prisma module installed can be paired with an I35 integrated amplifier, allowing for a separation of analog and digital stages. Or an I35 with DAC and Prisma modules installed can be paired with a DD35 CD transport, allowing for multi-room and multi-zone playback from any input, whether analog or digital source.

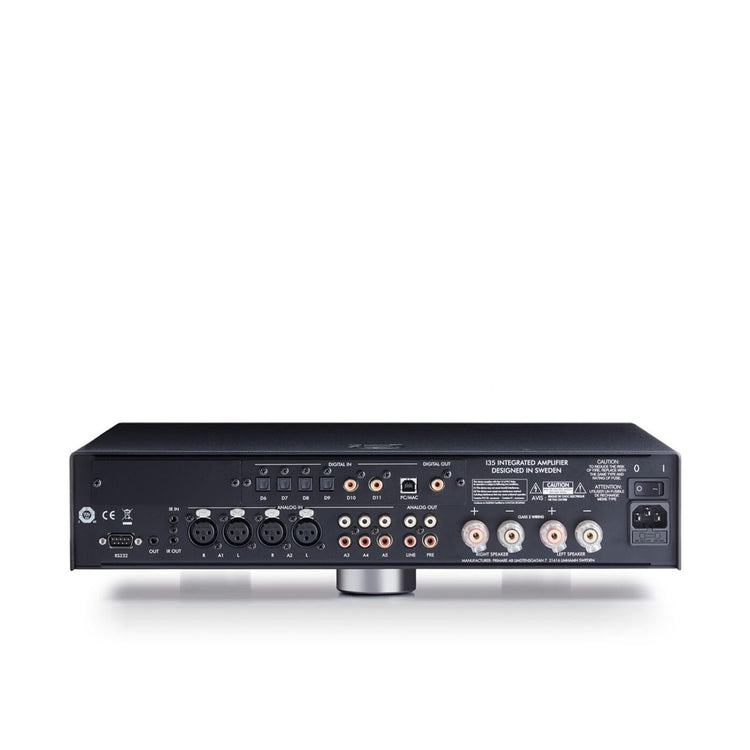

UPFD 2
2 x 150 W 8 Ohm / 2 x 300 W 4 Ohm
XLR
2 x stereo analog inputs
RCA
3 x stereo analog inputs
RCA
1 x stereo analog LINE output
RCA
1 x stereo analog PRE output
C25 remote control
IR system control
IR
3.5 mm input/output
12V trigger
3.5 mm output
RS232
External system control port

DAC
AKM AK4497
Toslink
4 x digital input
RCA
2 x digital input
RCA
1 x digital output
USB-B
1 x digital input
Weight
11 kg
Dimensions
430 x 106 x 420 mm (width)
Finishes
black or titanium
