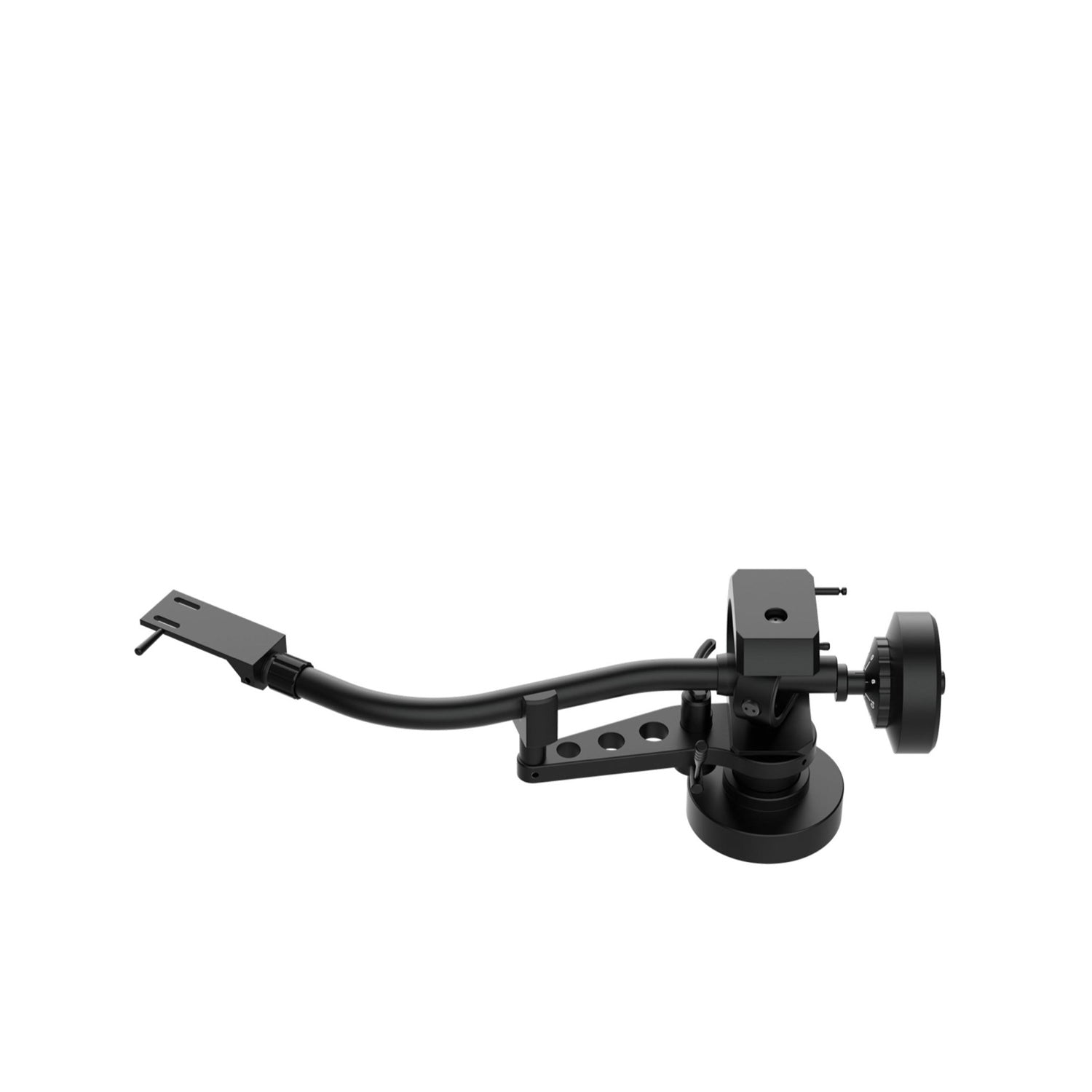

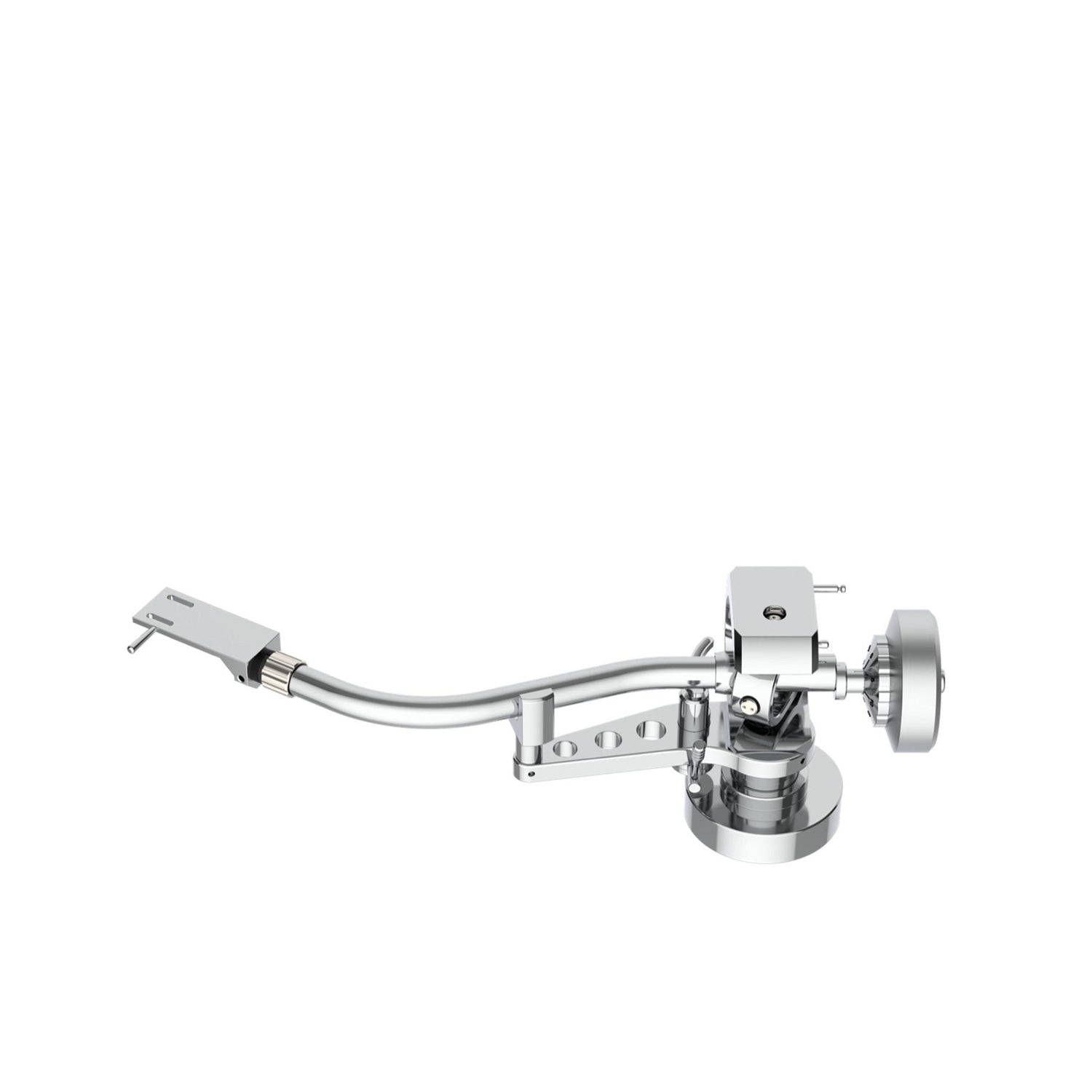

Pro-Ject EVO AS S-Shape Tonearm – 9, 10, and 12-inch

The Pro-Ject EVO AS S-Shape is a high-quality high-end tonearm that combines classic S-shape design with modern precision engineering. The precisely crafted aluminum tonearm tube offers high rigidity and, together with the high-quality bearings, ensures exact tracking of the cartridge. The EVO AS thus creates optimal conditions for detailed, dynamic, and spatially precise vinyl playback.

The precise 3-point pivot bearing enables exceptionally low-friction movement of the tonearm and ensures stable tracking during playback. The TPE-damped counterweight reduces unwanted resonances and can be precisely adjusted to the cartridge system being used.

Thanks to the practical SME headshell connection, cartridges and headshells can be changed quickly and conveniently. In addition, VTA and azimuth can be precisely adjusted, allowing the tonearm to be optimally matched to different cartridges.

The Pro-Ject EVO AS S-Shape is available in 9, 10, and 12-inch versions. The different tonearm lengths allow for flexible adaptation to various turntables and drive concepts.

Common features

High-end tonearm
S-shape design
Aluminium tonearm tube
Precise 3-point pivot bearing
SME headshell connector
1/2-inch cartridge mount
VTA adjustable
Azimuth adjustable
TPE-damped counterweight
Silicone-damped tonearm lift
Adjustable anti-skating
High-quality internal wiring
5-pin DIN output
Suitable for demanding MM and MC cartridges
Handmade in Europe

Pro-Ject EVO AS 9

Tonearm length: 9 inches
Effective tonearm length: 230 mm
Mounting distance: 212 mm
Overhang: 18 mm
Effective tonearm mass: approx. 8 g
Suitable cartridge weight: 7–14 g

Pro-Ject EVO AS 10

Tonearm length: 10 inches
Effective tonearm length: 254 mm
Mounting distance: 238 mm
Overhang: 16 mm
Effective tonearm mass: approx. 8.5 g
Suitable cartridge weight: 6–14 g

Pro-Ject EVO AS 12

Tonearm length: 12 inches
Effective tonearm length: 304.8 mm
Mounting distance: 291.6 mm
Overhang: 13.2 mm
Effective tonearm mass: approx. 10.5 g
Suitable cartridge weight: 6–15 g
