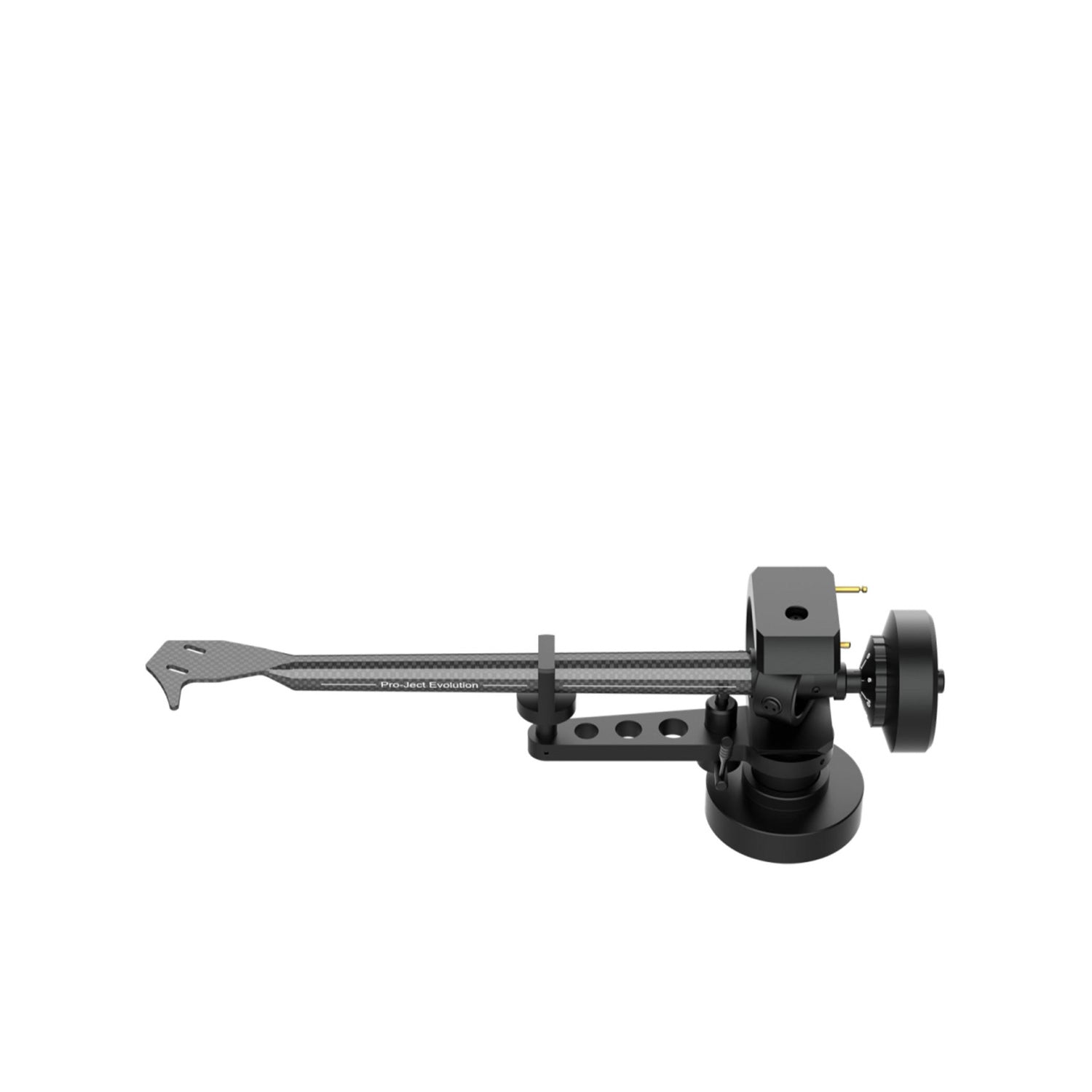

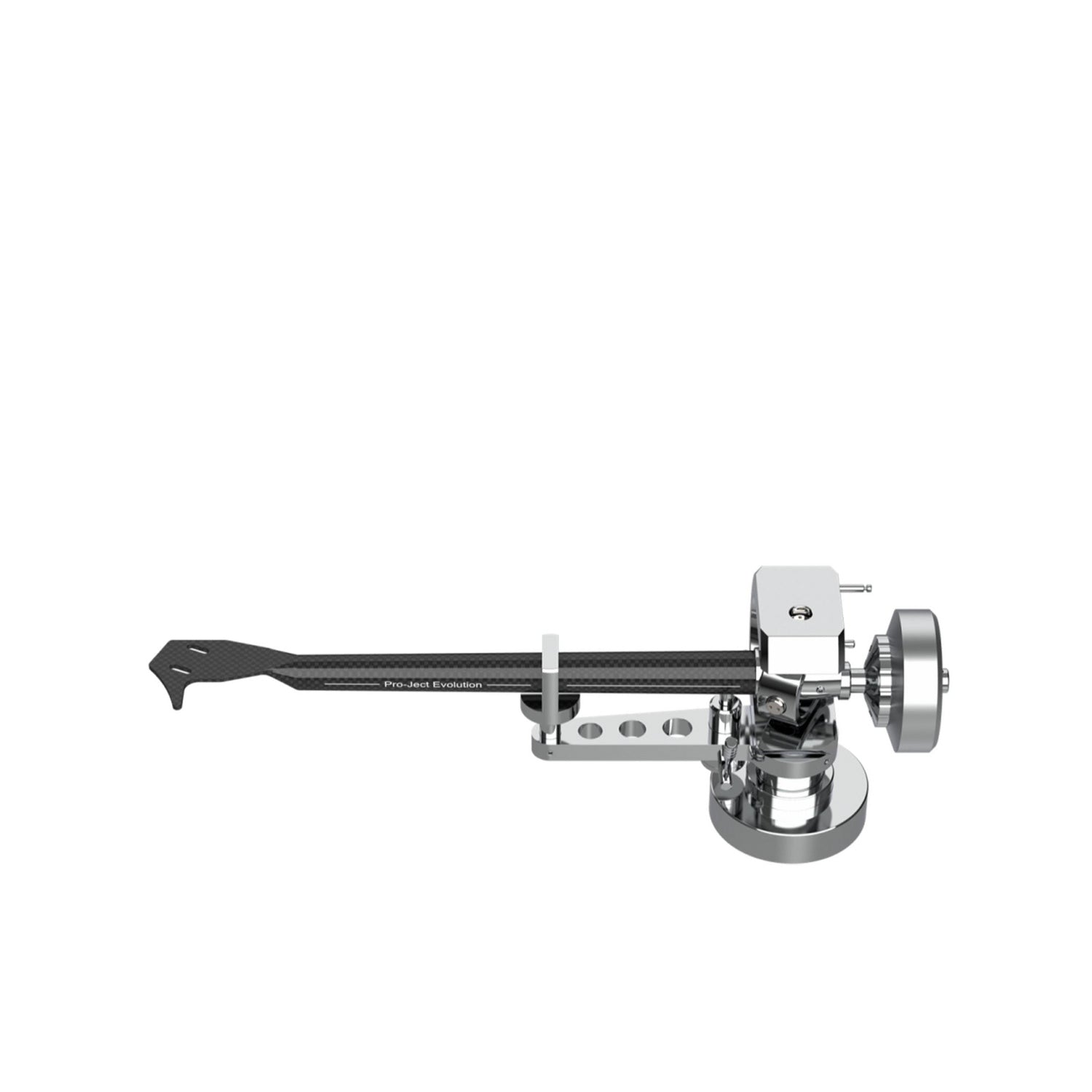

Pro-Ject EVO CC Tonearm – 9, 10, and 12 inches

The Pro-Ject EVO CC is a high-quality, high-end carbon tonearm designed for particularly precise, low-resonance record playback. The one-piece, conical carbon tonearm tube combines high rigidity with low weight and reduces unwanted self-resonance. This creates the optimal conditions for detailed, dynamic, and spatially precise vinyl reproduction.

The inverted gimbal ABEC-7 tonearm bearing with four stainless steel bearing tips ensures particularly precise tracking. This elaborately designed bearing assembly allows for very low-friction movement of the tonearm and guarantees exact tracking even of the finest groove information.

The Pro-Ject EVO CC features adjustable VTA and azimuth, allowing the tonearm to be optimally matched to any cartridge. The TPE-damped counterweight further reduces unwanted resonances. The height-adjustable, silicone-damped tonearm lift allows for controlled and gentle lowering of the stylus.

The EVO CC is available in three different lengths: 9 inches, 10 inches, and 12 inches. This allows the tonearm to be flexibly adapted to various turntables and drive concepts. All versions feature high-quality internal wiring made of high-purity copper as well as a gold-plated 5-pin DIN output jack.

Shared features

High-end carbon tonearm
One-piece, conical carbon tonearm tube
Inverted gimbal ABEC-7 bearings
4 stainless steel bearing points
Aluminium bearing block
TPE-damped counterweight
Continuously adjustable VTA
Adjustable azimuth
Silicone-damped, height-adjustable tonearm lift
High-purity copper internal wiring
Gold-plated 5-pin DIN output socket
1/2-inch cartridge mount
Handmade in Europe

Pro-Ject EVO 9 CC

Effective tonearm length: 230 mm / 9 inches
Mounting distance: 212 mm
Overhang: 18 mm
Effective tonearm mass: 8 g
Suitable cartridge weight: 7–14 g
Tracking force range: 0–3 g
Weight excluding flange: approx. 265 g

Pro-Ject EVO 10 CC

Effective tonearm length: 254 mm / 10 inches
Mounting distance: 238 mm
Overhang: 16 mm
Effective tonearm mass: 8.5 g
Suitable cartridge weight: 6–14 g
Tracking force range: 0–3 g
Weight excluding flange: approx. 269 g

Pro-Ject EVO 12 CC

Effective tonearm length: 304.8 mm / 12 inches
Mounting distance: 291.6 mm
Overhang: 13.2 mm
Effective tonearm mass: 10.5 g
Suitable cartridge weight: 6–15 g
Tracking force range: 0–3 g
Weight excluding flange: approx. 271 g
