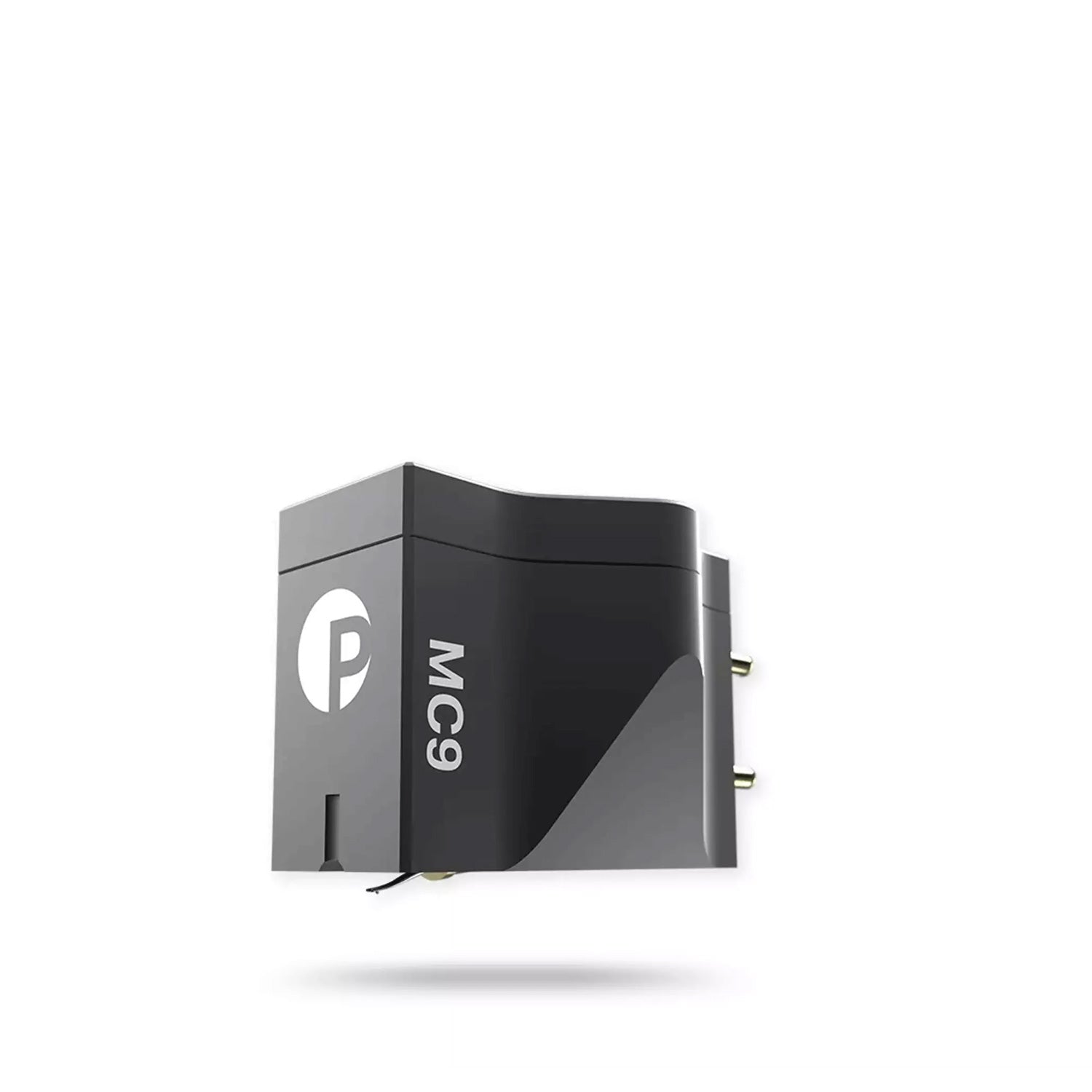

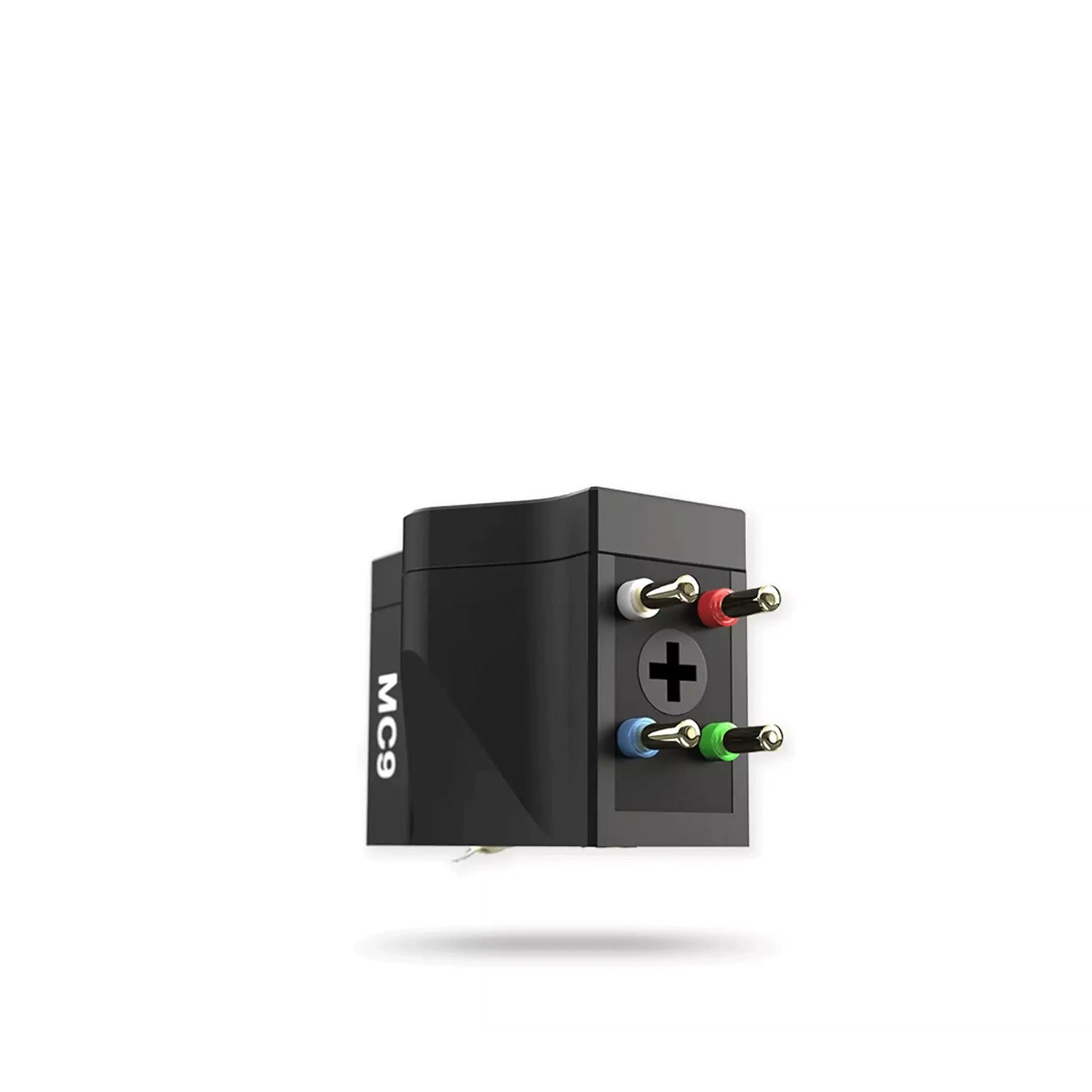

Pro-Ject Pick it MC9

The Pro-Ject Pick it MC9 is a high-quality low-output MC cartridge designed for audiophile vinyl playback with maximum precision. As a premium model in the Pick it MC series, it combines a low-resonance solid aluminum housing, a high-quality Telar-57 pure iron cross-coil, and a cryogenically treated cantilever. The result is a detailed, dynamic, and particularly precise playback.

The special special elliptical stylus profile enables excellent tracking and high detail resolution. Pro-Ject positions the MC9 particularly for dynamic music such as jazz and classical, where precise spatial imaging, dynamics, and rhythmic accuracy are required. Mounting is convenient via the 1/2-inch mount with integrated threaded holes, so no nuts are required.

Type:
MC (Moving Coil)

Version:
Low Output

Output voltage:
0.35 mV at 1 kHz

Channel separation:
35 dB at 1 kHz

Tracking ability:
70 µm at 315 Hz

Frequency range:
20–20,000 Hz ±1 dB

Stylus type:
Special Elliptical

Stylus radius:
5 × 150 µm

Cantilever:
cryogenically treated

Coil:
Telar 57, square pure iron coil

Winding:
6N copper

Tracking force range:
1.6–1.9 g

Recommended tracking force:
1.8 g

Vertical tracking angle:
20°

Recommended load impedance:
100–470 Ω

Break-in time:
approx. 30 hours

Mounting:
1/2 inch
Installation: Threaded holes for easy mounting without nuts

Housing:
Solid aluminum

Surface:
black anodized

Weight:
9.6 g

Stylus guard:
transparent, removable
