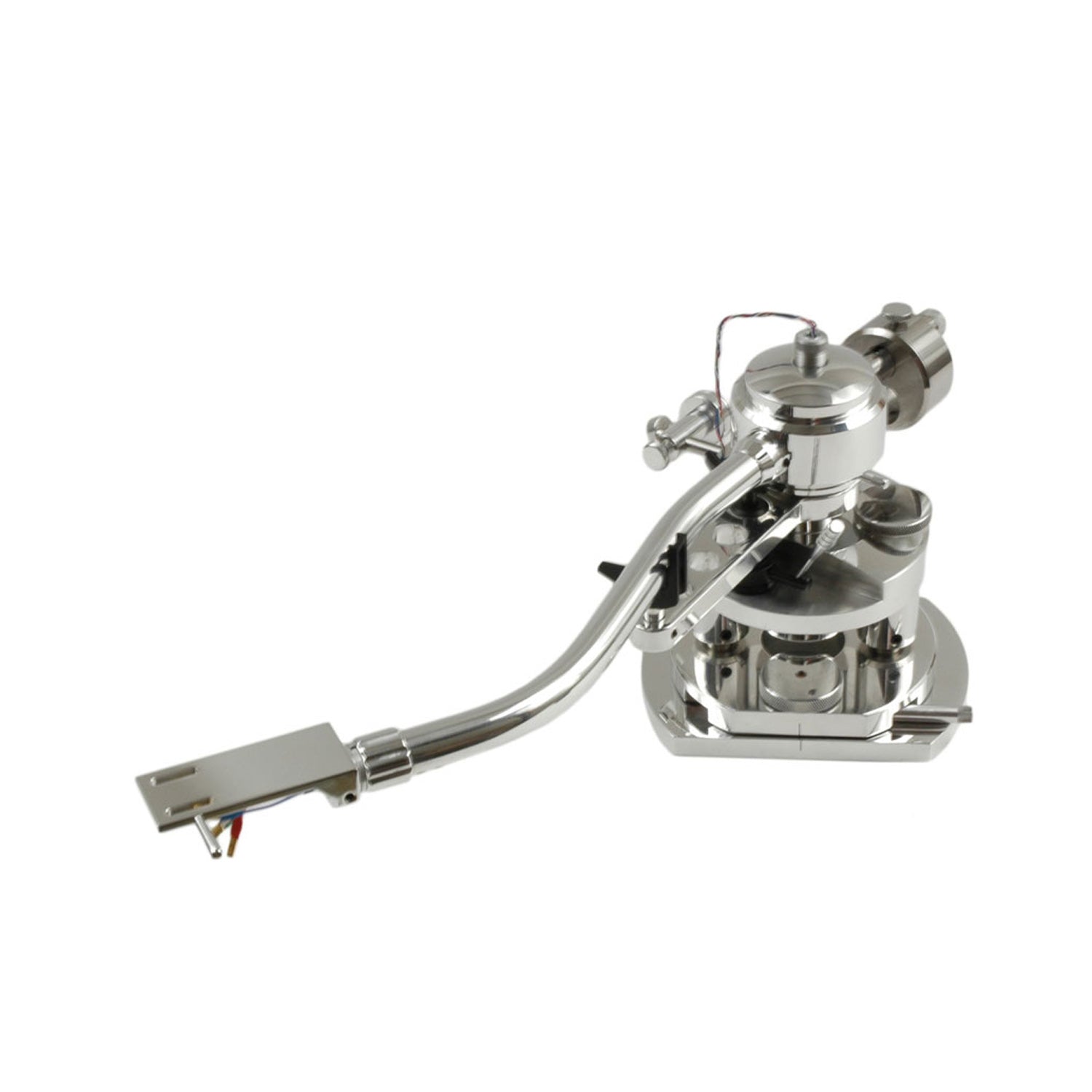

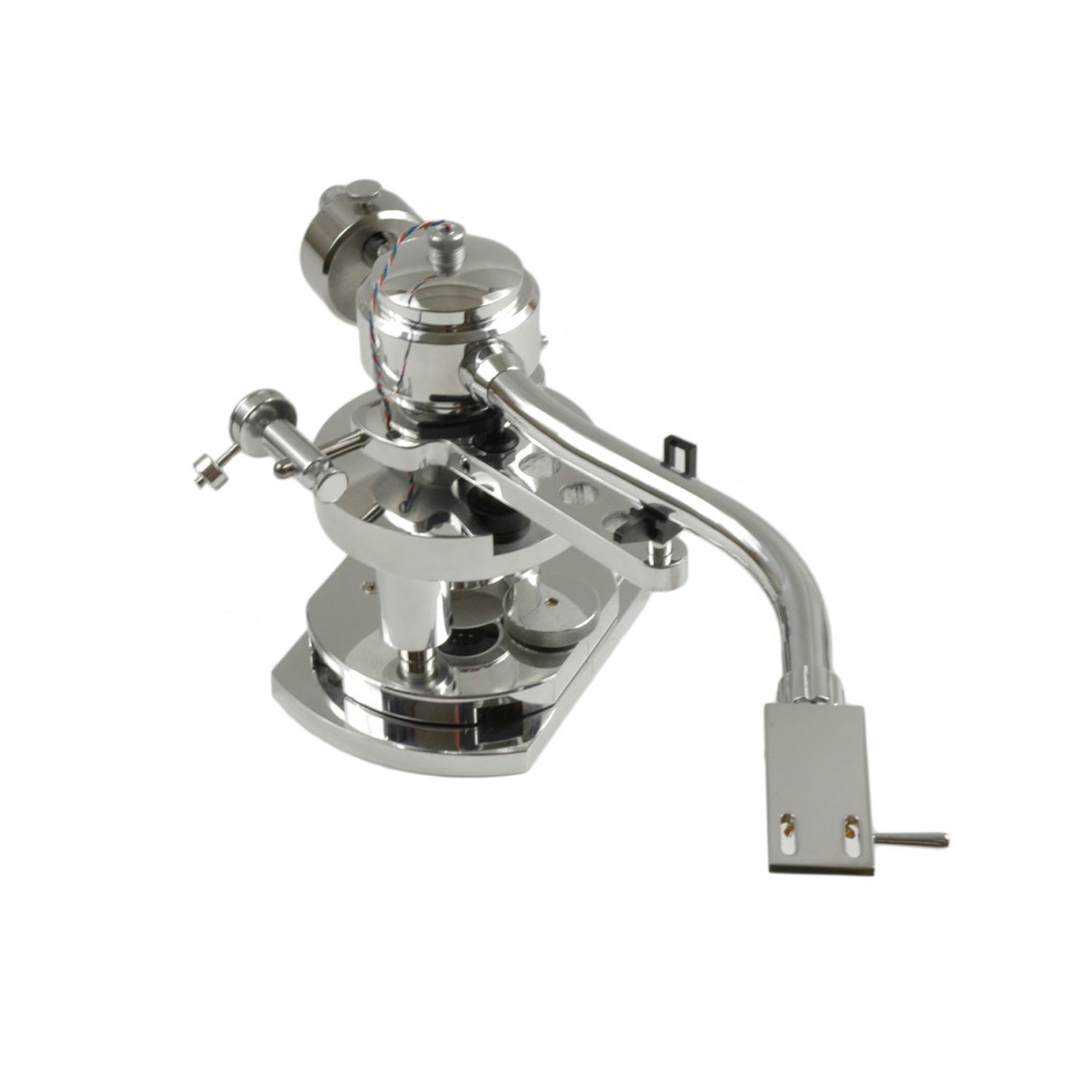

Pro-Ject Signature Tonearm – 9, 10 and 12 inches

The Pro-Ject Signature Tonearm is a high-quality high-end S-shape tonearm for demanding analog music reproduction. The classic S-shaped design made of specially damped aluminum combines high rigidity with low resonance and enables precise tracking of the cartridge.

The uni-pivot bearing reduces bearing friction and ensures particularly free and dynamic movement of the tonearm. Thanks to the removable SME headshell, different cartridges can be changed quickly and conveniently. The tonearm is also suitable for heavy MC systems and cartridges with low compliance.

Overhang and VTA can be adjusted conveniently, while the azimuth can be adjusted directly at the headshell. The Pro-Ject Signature Tonearm is available in 9, 10 and 12 inches, offering a suitable solution for various high-end turntables and drive concepts.

Shared features

High-end tonearm
S-shape design
Special resonance-damped aluminium tonearm tube
Uni-pivot bearing
Minimized bearing friction
Non-magnetic, low-resonance construction
Detachable SME headshell
Aluminium headshell, approx. 12 g, included
1/2-inch cartridge mount
Adjustable azimuth
Adjustable VTA
Adjustable overhang at the tonearm base
Highly conductive OFC headshell cables
Integrated 5-pin DIN connector
Suitable for MM and MC cartridges
Also suitable for heavy cartridges and SPU systems
Optional carbon and wooden headshells available
High-gloss finish
Supplied in a premium wooden box
Pro-Ject Signature 9"
Effective tonearm length: 230 mm
Mounting distance: 212 mm
Overhang: 18 mm
Offset angle: 24°
Effective tonearm mass: 17.2 g with aluminium headshell
Cartridge weight: 5–23 g with aluminium headshell
Headshell: 12 g
Pro-Ject Signature 10"
Effective tonearm length: 254 mm
Mounting distance: 238 mm
S-shape tonearm
Uni-pivot bearing
SME headshell
Adjustable VTA
Adjustable overhang
Pro-Ject Signature 12"
Effective tonearm length: 304.8 mm
Length: 12 inches
S-shape design
Uni-pivot bearing
Aluminium tonearm tube
SME headshell
Adjustable VTA and overhang
Multiple counterweights for different cartridge weights
