Product description

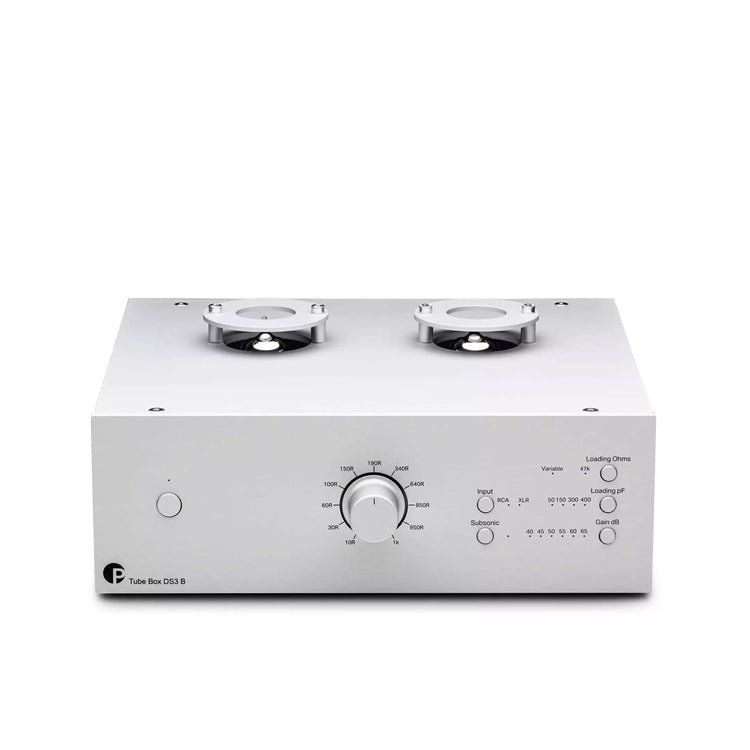

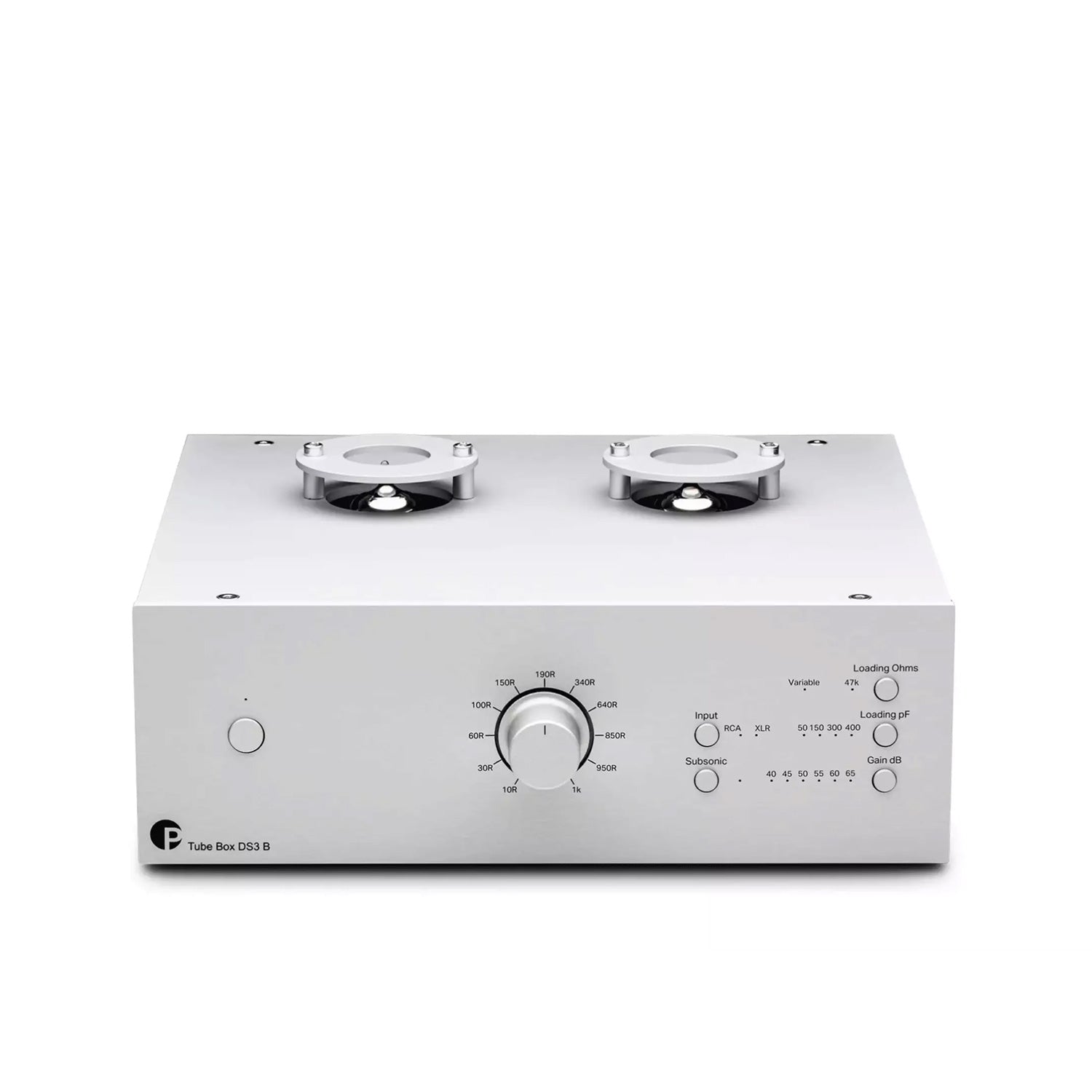

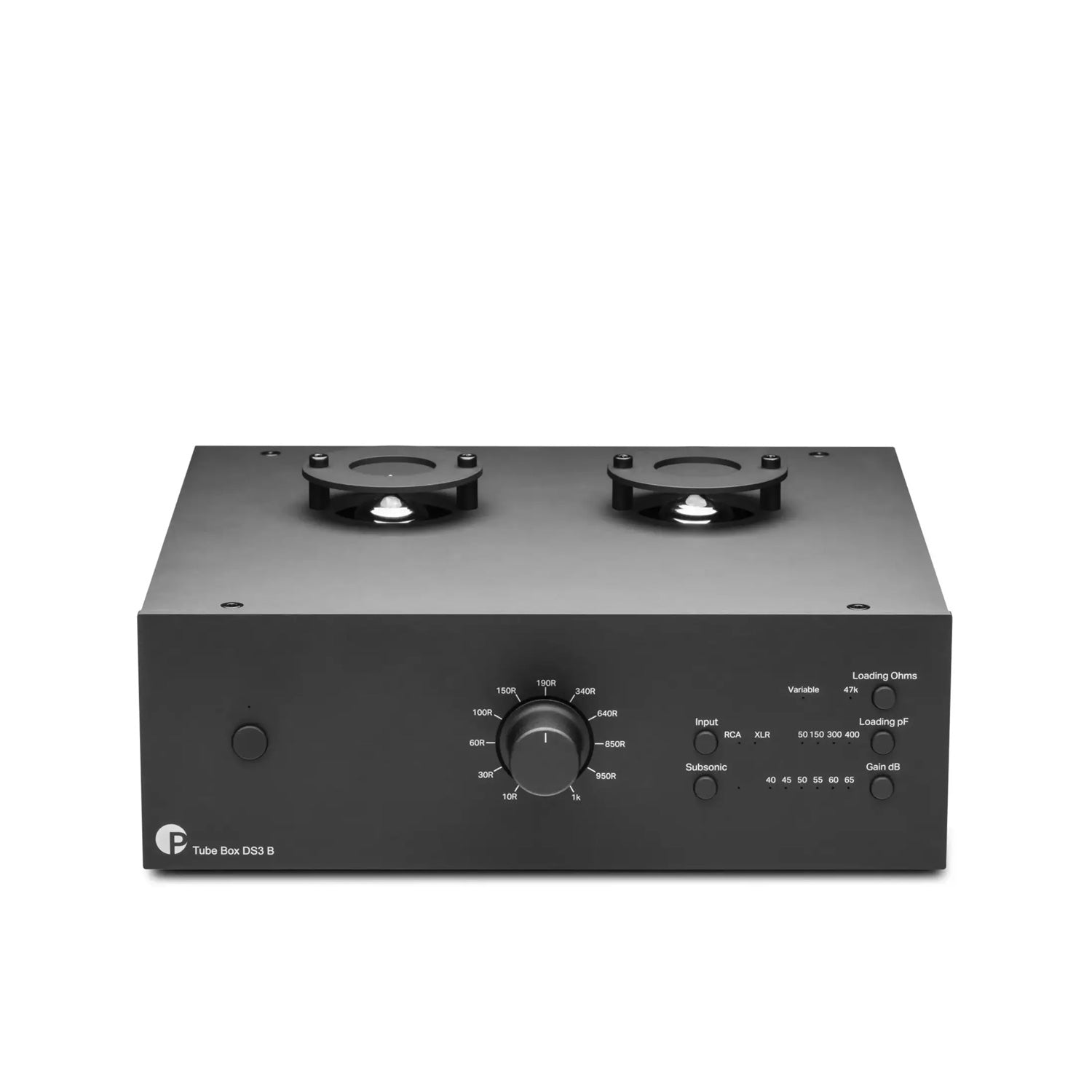

Pro-Ject Tube Box DS3 B

The Pro-Ject Tube Box DS3 B is a high-quality tube phono preamplifier for MM and MC cartridges that combines audiophile sound quality with extensive adjustment options and fully balanced signal processing. The dual-mono design utilizes two E88CC/6922 tubes, enabling particularly precise and natural vinyl playback with a characteristic tube sound.

Thanks to the variable input impedance of 10 to 1,000 ohms, the Tube Box DS3 B can be optimally matched to a wide variety of MC cartridges. In addition, four capacitance values for MM systems and six gain levels from 40 to 65 dB are available. This makes the phono stage suitable for both sensitive MC systems and classic MM cartridges.

A special feature is the inclusion of balanced XLR inputs and outputs alongside classic RCA connectors. The integrated subsonic filter also reduces low-frequency interference, while the aluminum chassis effectively shields the sensitive phono electronics from external interference.

Technical details

Type:
Tube phono preamplifier

Suitable for:
MM and MC cartridges

Circuitry:
Dual-mono

Tube complement:
2 × E88CC / 6922

Input impedance:
continuously variable 10–1,000 ohms / fixed 47 kohms

Input capacitance:
50 / 150 / 300 / 400 pF

Gain:
40 / 45 / 50 / 55 / 60 / 65 dB

Output voltage:
500 mV at 1 kHz / 5 mV input at 40 dB

Signal-to-noise ratio:
>87 dBV, A-weighted

THD:
<0.03 %

RIAA accuracy:
±0.5 dB at 20 Hz–20 kHz

Subsonic filter:
20 Hz, 18 dB/octave

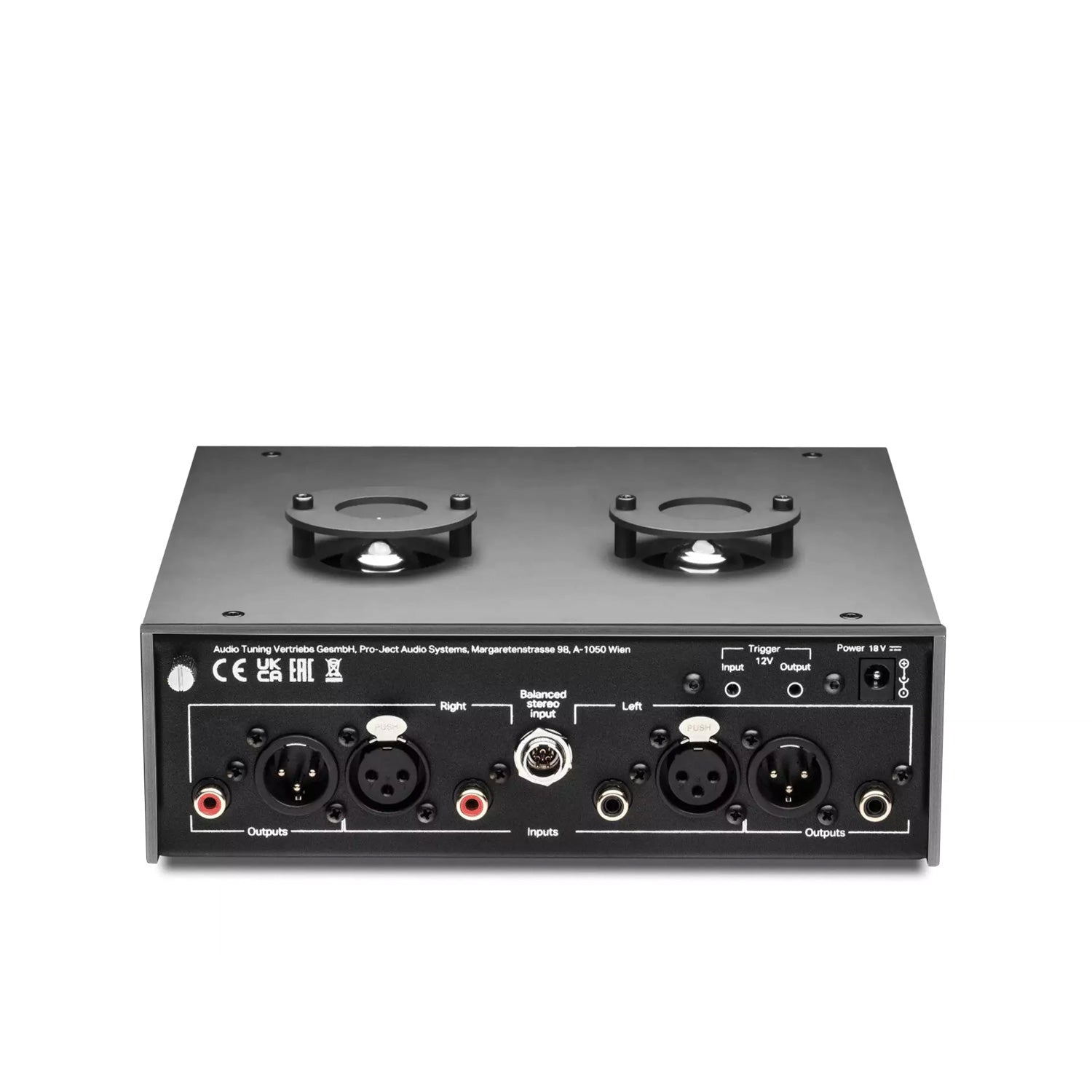

Inputs:
1 × 5-pin mini-XLR, 1 × XLR pair, 1 × RCA pair

Outputs:
1 × RCA pair, 1 × XLR pair

Balanced signal processing:
True balanced

Power supply:
18 V / 1,000 mA DC

Power consumption:
max. 750 mA DC

Standby consumption:
<0.5 W

Dimensions (W × H × D):
206 × 70 × 194 mm

Weight:
1.56 kg without power supply
