Clean power for the best sound!

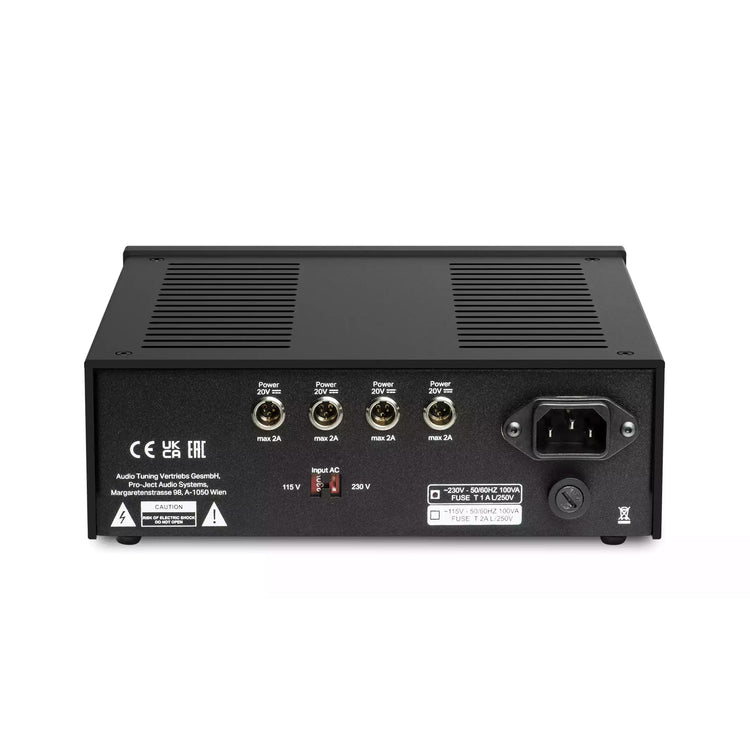

The power supply is a very important part of the audio path and contributes significantly to sound quality. With the new Power Box RS2 Sources, you can connect up to four 20V RS/RS2 devices and benefit from a perfect power supply. Four standard mini-XLR to mini-XLR connection cables are included in the scope of delivery.

This linear power supply consists of an oversized toroidal transformer, which prevents interference from the power grid from being transmitted to the audio device. The toroidal transformer offers significantly more power reserves than standard power supplies. Due to the very low output impedance and high capacitor capacity, there are no limitations in power delivery. The imaging of the soundstage, the blackness of quiet backgrounds, and the fine resolution of tiny sound details are improved, leading to a significant increase in overall playback quality.

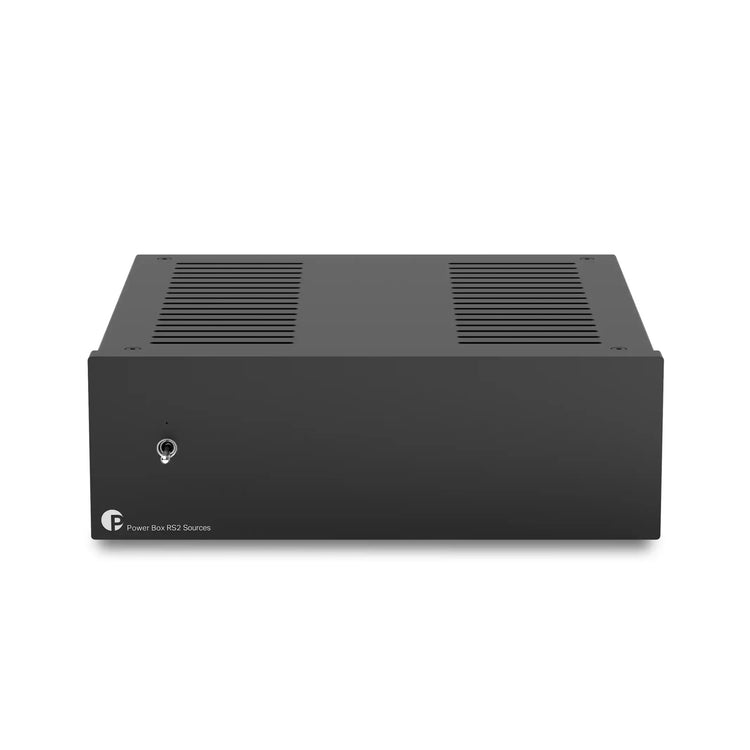

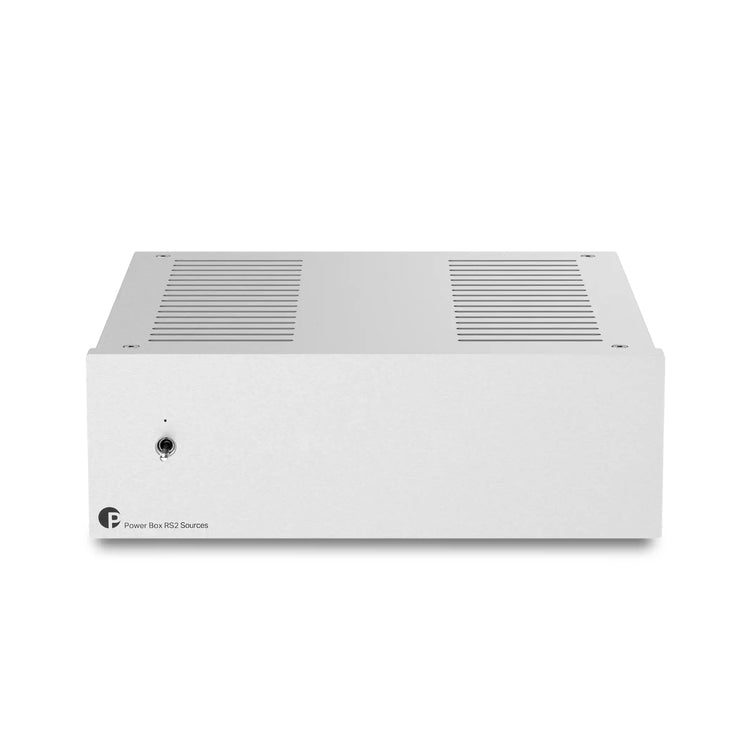

The Power Box RS2 Sources is manufactured in Europe and is available in a black or silver full-aluminum housing.

Input voltage:
AC 230V/50Hz IEC C15

Output voltage/current:
4 x 20V ±0.5% / 2A

Ripple:
max. 6mV pp

Filter capacitance:
10,000 μF

Accessories:
4x mini XLR - mini XLR connection cable

Dimensions W x H x D:
206 x 71 x 209 mm

Weight:
3550 g
