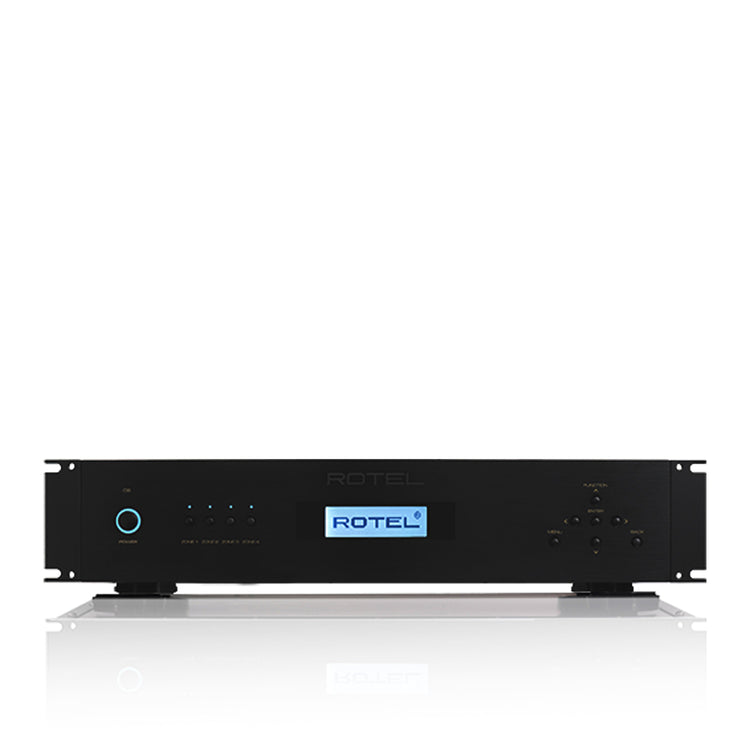

High-efficiency performance in the Rotel C8 Class AB 8-channel multi-channel amplifier with excellent sound quality, providing 70 watts per channel or 140 watts bridged into 4 ohms using proprietary Rotel amplifier technology.

The oversized, in-house manufactured toroidal transformer powers 16 output devices for effortless, controlled bass reproduction.

For maximum installation flexibility, the C8 features four analog inputs that can be routed to all zones. Front panel display and controls allow for source selection and individual adjustment of volume, bass, and treble for each channel.

IP and RS232 interfaces, as well as 12V triggers, for integration with control systems.

2U chassis design requires no top or bottom clearance for rack mounting.

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.1%

DAMPING FACTOR (20Hz - 20kHz, 8Ω)
80

TONE CONTROLS
± 10dB at 100Hz / 10kHz

CROSSTALK/SEPARATION
>50dB

INPUT SENSITIVITY
Line Level Inputs: 0.3V

INPUT IMPEDANCE
Line Level Inputs: 31kΩ

OVERLOAD
Line Level Inputs (RCA): 2.8V
