Affordable high-end begins with the Rotel RC-1572MKII preamplifier, featuring numerous acoustic upgrades and refinements that deliver your favorite analog and digital sources at an even higher level of performance with impressive clarity and a natural, expansive soundstage.

As an essential component of a hi-fi system, precision in the RC-1572MKII starts with the ultra-low-noise power supply and its large, Rotel-manufactured toroidal transformer. This transformer design reduces stray radiation. Combined with an array of low-ESR slit-foil capacitors, this power supply provides stable voltage to all sensitive circuits, reducing noise and distortion while ensuring an extremely low noise floor.

The premium 32-bit digital-to-analog converter (DAC) from Texas Instruments, along with its carefully tuned external output filters, converts digital signals with the highest precision for natural playback with exceptional micro-dynamics and musicality.

Analog, digital, XLR, wireless aptX™ and AAC Bluetooth, and an MM phono input are available to connect all your favorite music sources. For digital media playback, there is a 32-bit/384 kHz PC-USB input with MQA support, which is fully Roon Tested to provide you with access to a near-limitless catalog of online music.

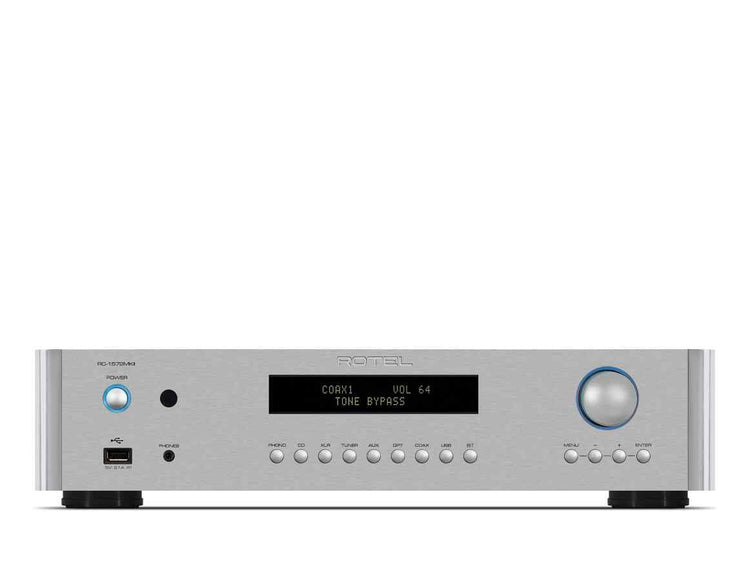

The RC-1572MKII is exceptionally easy to operate using the included remote control and front-panel display. Automatic power control, signal sensing, fixed volume and tone settings allow for optimal customization to your listening habits.

For added installation flexibility, RCA, XLR, and subwoofer outputs are provided. Ethernet and RS-232 connections allow for simple integration with control systems and software updates.

Whether with your CDs, digital files, or vinyl, the RC-1572MKII brings generations of music and music lovers together.

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.004%

INPUT SENSITIVITY
Line Level Inputs (RCA): 200mV
Line Level Inputs (XLR): 300mV
Digital Inputs: 0dBFs
Phono Input (MM): 3mV

INPUT IMPEDANCE
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
OVERLOAD
Line Level Inputs (RCA): 4V
Line Level Inputs (XLR): 5V
Phono Input: 63mV

OUTPUT LEVEL
Line Level (RCA): 1V
Balanced (XLR): 2V

CHANNEL SEPARATION
Line Level Inputs (RCA): >85dB
Line Level Inputs (XLR): >75dB
Phono Input: >85dB

TONE CONTROLS
±10dB at 100Hz / 10kHz
PREAMPLIFIER OUTPUT LEVEL
1.44 V (at - 20 dB)

DIGITAL SIGNALS (COAXIAL/OPTICAL)
SPDIF LPCM (up to 24-bit/192kHz)

PC-USB
USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)
*Driver installation required
MQA and MQA Studio (up to 32-bit/384kHz)
Roon Tested
