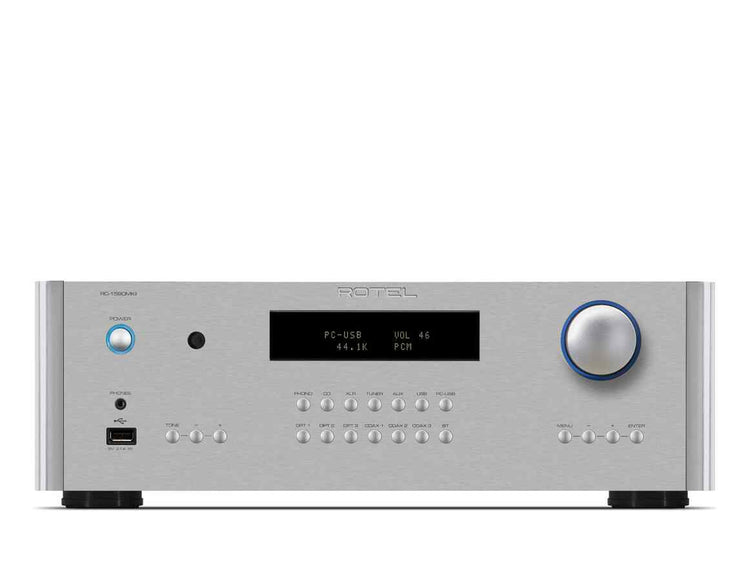

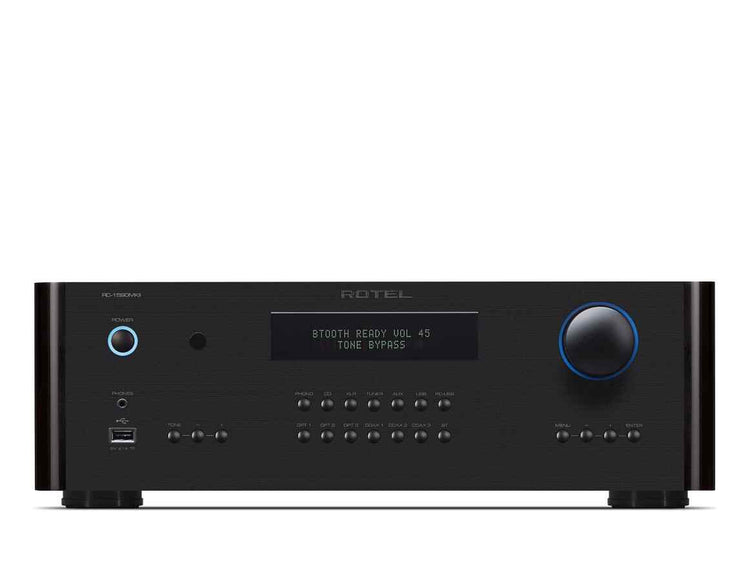

Reference audio systems demand reference components. The Rotel RC-1590MKII is exactly that—a reference preamplifier that renders analog and digital sources with naturalness, a wide and open soundstage, and impressive clarity.

The heart of the RC-1590MKII is its power supply, featuring dual, in-house manufactured toroidal transformers. These transformers are physically and electrically isolated, supplying independent voltage rails to the analog and digital circuits via low-ESR slit-foil capacitors that eliminate unwanted distortion and deliver an extremely low noise floor.

Digital signals are processed by an audiophile-grade Texas Instruments 32-bit/384kHz digital-to-analog converter (DAC) with custom-tuned external output filter circuits to reproduce even the finest details with exceptional clarity and precise positioning.

The analog signal paths feature DIRECT-PATH bypass modes to eliminate unnecessary circuit stages, maintaining signal integrity and further suppressing unwanted noise and distortion, allowing you to immerse yourself even more deeply in your music.

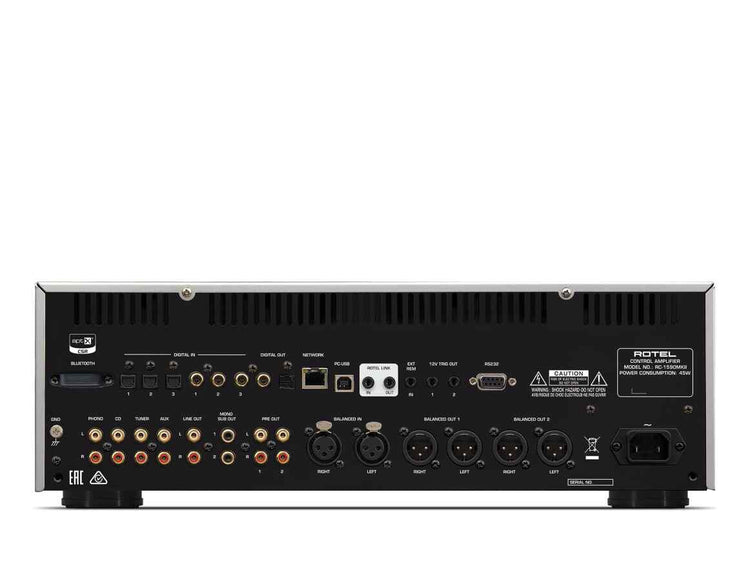

The RC-1590MKII supports a wide array of inputs for your favorite sources, including a moving magnet (MM) phono stage for vinyl lovers, analog, digital, balanced XLR, high-quality wireless aptX™ and AAC Bluetooth, as well as PC-USB (32-bit/384kHz) supporting MQA and Roon Tested certification.

Dual RCA and XLR outputs provide maximum flexibility, including bi-amping configurations. A subwoofer output is also included.

The RC-1590MKII continues Rotel’s 60-year legacy and tradition with our promise of performance, value, and unwavering commitment to quality. Authentic, captivating, and expansive—the RC-1590MKII is a proud representative of this renowned brand.

INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.002%

INPUT SENSITIVITY
Line Level Inputs (RCA): 150mV
Line Level Inputs (XLR): 250mV
Digital Inputs: 0dBFs
Phono Input (MM): 2.5mV

INPUT IMPEDANCE
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ

OVERLOAD
Line Level Inputs (RCA): 4V
Line Level Inputs (XLR): 5.5V
Phono Input: 64mV

OUTPUT LEVEL
Line Level (RCA): 1V
Balanced (XLR): 2V

OUTPUT IMPEDANCE
Line Level Inputs (RCA): >85dB
Line Level Inputs (XLR): >75dB
Phono Input: >85dB

TONE CONTROLS
±10dB at 100Hz / 10kHz
OUTPUT LEVEL
1.65 V (at - 20 dB)

DIGITAL SIGNALS (COAXIAL/OPTICAL)
LPCM (up to 24-bit/192kHz)

PC-USB
USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
