SPL

SPL Phonos Duo

Regular price
€2.999,00
Regular price
Sale price
€2.999,00

Preis inkl. MwSt. zzgl. Versandkosten

€2.909,03
Um den Skontopreis zu erhalten, wählen Sie im Warenkorb die Option „Banküberweisung“ und schicken die Bestellung ab.

Wir schicken Ihnen dann eine korrigierte Rechnung inkl. 3 % Skonto per Email.

Weitere Fragen?

Skonto (Vorkasse per Banküberweisung -3%)

Color
Delivery time 7-9 days

Product description

The SPL Phonos duo phono preamplifier expands the renowned SPL Phonos phono preamplifier with a balanced stereo input and output pair. Phonos duo is therefore even more versatile. Regardless of whether you use Moving Magnet (MM) or Moving Coil (MC) cartridges – the SPL VOLTAiR technology and the RIAA equalization filter in the legendary Douglas Self design form the foundation for magnificent phono sound.

Good design – a must

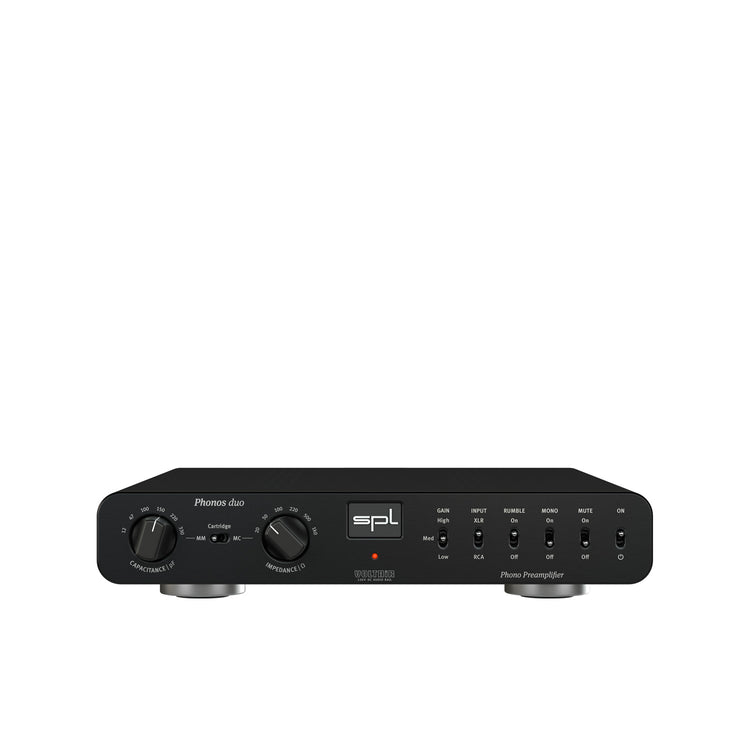

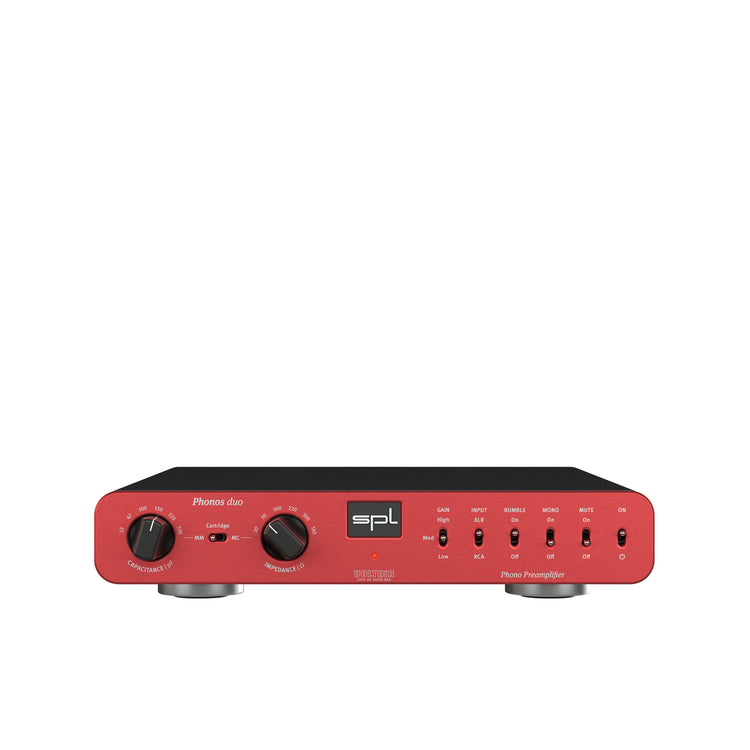

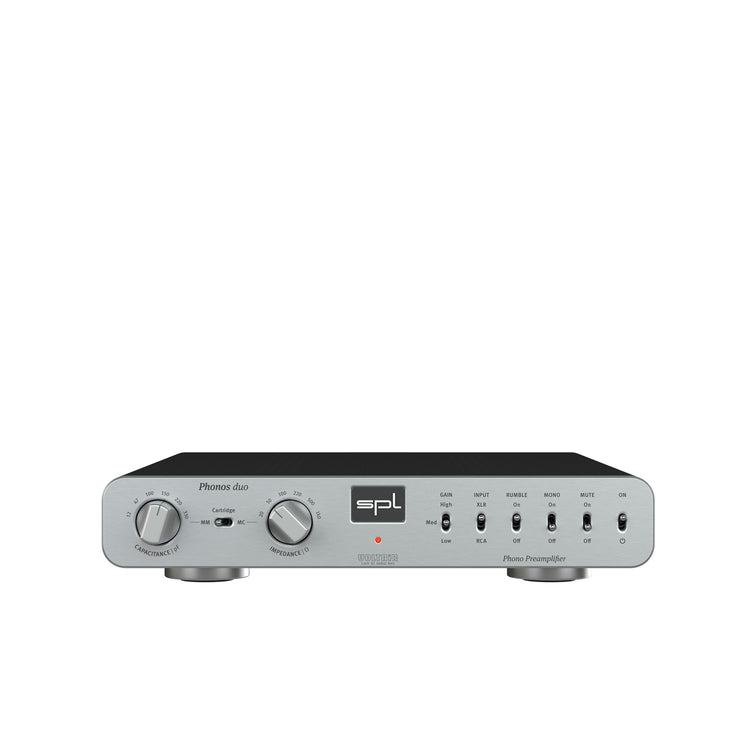

Visually, the SPL Phonos duo phono preamplifier fits perfectly into the SPL Professional Fidelity HiFi line – and is naturally available in the three standard colors: black, red, or silver.

MM & MC

There are two types of cartridges for record players: Moving Magnet (MM) and Moving Coil (MC)

Moving Magnet

Moving Magnet cartridges generate voltage by moving a magnet between copper coils. To achieve the best possible frequency and phase response linearity, the capacitance is adjusted to match the cartridge. Phonos duo offers six different capacitance settings for this adjustment: 12 pF, 47 pF, 100 pF, 150 pF, 220 pF, and 330 pF.

Moving Coil

The Moving Coil cartridge is also a small electromagnetic generator. However, in this case, the magnets are fixed and the coils move between them. The principle is the exact opposite of a Moving Magnet cartridge. Consequently, the crucial parameter for adjustment to the cartridge is not capacitance, but impedance. Phonos duo offers six different impedance settings for this adjustment: 20 ohms, 50 ohms, 100 ohms, 220 ohms, 500 ohms, and 1 kOhm.

Free choice – balanced or unbalanced

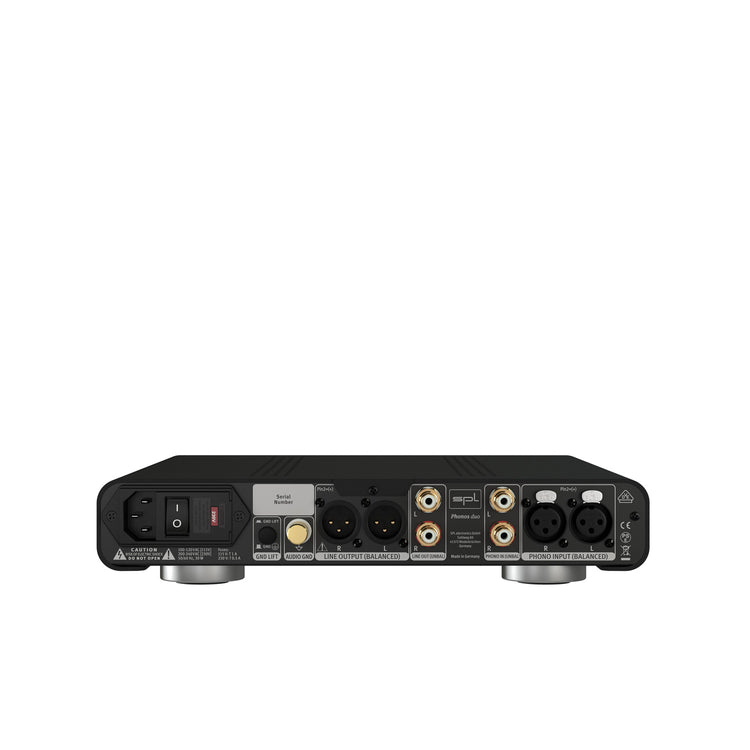

Phonos duo offers two stereo input and output pairs. A balanced input and output pair with XLR connectors, and an unbalanced input and output pair with RCA jacks.

Technical details

Analog inputs and outputs: XLR (balanced), RCA

Input impedance (MM):
47 kΩ

Input impedance (MC):
switchable

Output impedance:
75 Ω

Frequency response:
10 Hz–100 kHz

Crosstalk:
-80 dBu

Moving Magnet (MM) amplifier

Gain Low:
30 dB

Gain Med:
40 dB

Gain High:
50 dB

Capacitances (switchable):
12, 47, 100, 120, 220, 330 pF

Noise (A-weighted, 50 dB gain):
-82 dBu

Dynamic range (50 dB gain):
132 dB

Moving Coil (MC) amplifier

Gain Low:
50 dB

Gain Med:
60 dB

Gain High:
70 dB

Impedances (switchable):
20, 50, 100, 220, 500, 1000 Ω

Noise (A-weighted, 70 dB gain):
-62 dBu

Dynamic range (70 dB gain):
129 dB

Internal power supply; linear power supply unit with shielded toroidal transformer

Operating voltage for analog audio electronics:
+/- 60 V

Operating voltage for relays and LED:
+ 12 V

Power supply unit

Mains voltage (selectable, see fuse chamber):
230 V AC / 50; 115 V AC / 60 Hz

Fuse for 230 V:
T 0.5 A

Fuse for 115 V:
T 1 A

Power consumption:
max. 30 VA

Standby power consumption:
< 0.3 W

Dimensions & weight

W x H x D (width x height incl. feet x depth):
278 x 57 x 300 mm

Weight of device:
3.3 kg

Shipping weight (incl. packaging):
4.45 kg
