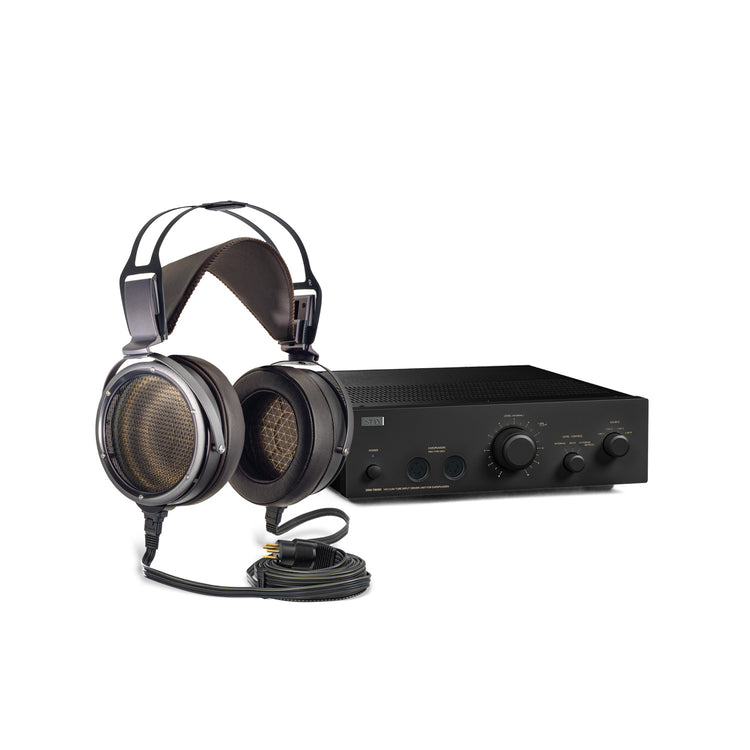

Set consisting of the SR-X9000 electrostatic headphones and the SRM-T8000 hybrid driver unit

Electrostatic headphones: Stax SR-X9000

The STAX SR-X9000 is the new top-of-the-line model from STAX. Completely redeveloped, it delivers a captivating sound experience that transports the listener directly into the heart of the music. The STAX SR-X9000 offers an extraordinary musical experience. It impresses with its vivid soundstage, which combines precise bass reproduction with outstanding transparency and dynamics. It is not for nothing that the Japanese manufacturer refers to its models as ear speakers ...

Driver unit: Stax SRM-T8000

It is an old Japanese tradition to always strive for complete perfection. Perfection, as expressed in an impressive way, for example, in the Japanese tea ceremony. The STAX SRM-T8000 is the counterpart to this when it comes to driver units for electrostatic headphones. Not only does it benefit from decades of experience and the unwavering pursuit of perfection of the STAX developers, but it also offers an incredible variety of functions: for instance, two STAX headphones can be operated simultaneously on the STAX SRM-T8000. Like all driver units for electrostatic headphones from STAX, the STAX SRM-T8000 is connected to the tape/record output of preamplifiers or integrated amplifiers, or to the pre-out of a preamplifier. The source device to be played is then selected via the input selector of the preamplifier or integrated amplifier – however, a CD player or a record player with a separate phono preamplifier can also serve directly as a signal source. In total, up to three source devices can be connected directly, one of which can even be balanced via XLR. The selection of the source device to be heard is then made on the SRM-T8000 itself. The music signal present at the input of the driver unit can be looped through to connect another device. If a source device is to be connected digitally, a separate D/A converter is required.

SR-X9000 Headphones

Design
Brown housing finish
Lambskin-covered ear pads
Comfortable headband adjustment with nine click-stop positions

Sound-enhancing technology
Detachable connection cable made of silver-plated, long-crystal, oxygen-free 6N pure copper (OFC 99.9999%), with extremely low capacitance. Includes two cables, 1.5 and 2.5 meters in length.
Gold-plated connectors
Recommended driver amplifiers: STAX SRM-700S, STAX SRM-700T, and STAX SRM-T8000

Technical data
Frequency response: 5Hz - 42kHz
Efficiency/1kHz: 101dB/100V r.m.s.
Weight: 432g

Hybrid Driver Amplifier SRM-T8000

Sound-enhancing technology
Tube input stage with two E88CC (6922) double triodes, mounted on a sub-chassis for mechanical decoupling.
Class A output stage without negative feedback
Balanced circuit design.
Volume/balance control via a quadruple potentiometer encapsulated for electrical shielding, with mute and bypass functions.
Three front-selectable inputs: 1x balanced (3-pin XLR jacks) and 2x unbalanced (RCA jacks).
One unbalanced output (RCA jacks).
Two headphone outputs.

Versions
Brushed aluminum front in silver or black
Chassis in silver or black

Technical data
Dimensions W x H x D: 320 x 103 x 365mm (395mm including knob and jacks)
Weight: 7.3kg
