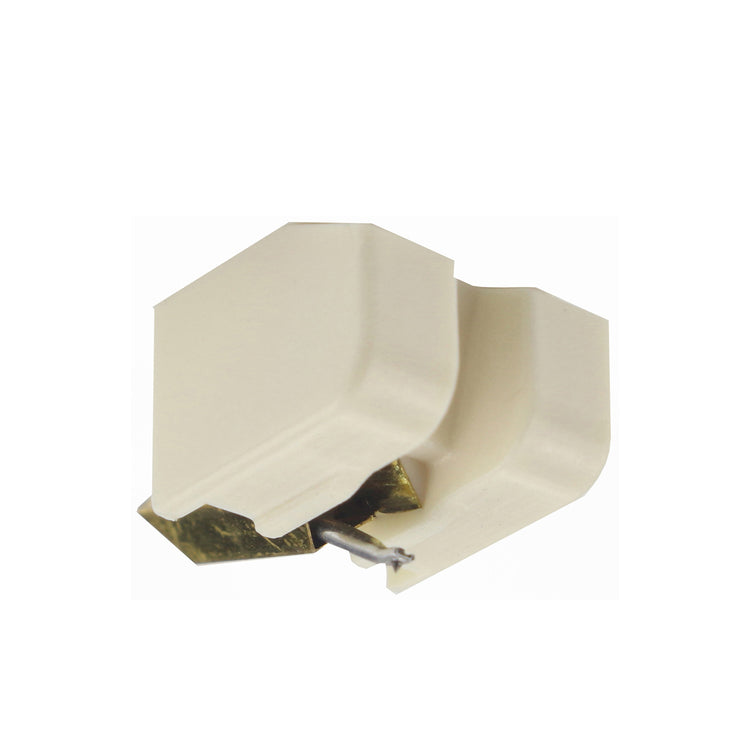

Replacement stylus for the Sumiko Rainier

Upgrade for MM cartridges

You can upgrade your Sumiko MM cartridge by simply swapping the stylus assembly. Important: all upgradeable cartridges operate with the same tracking force – therefore, no adjustments are necessary after upgrading the stylus.

Since the Black Pearl and Pearl are identical except for the stylus, a Pearl stylus upgrades the Black Pearl to a Pearl. For the models from Rainier to Amethyst, the generators also differ. You can read details about the differences in this excellent report by Bernhard Rietschel from LowBeats magazine.

The advantages of the higher-quality stylus assembly: lighter stylus cantilevers, a nude-mounted diamond, a better diamond cut, or a better polish of the diamond – whether aligned with or against the structure of the diamond crystal lattice – significantly improve sound quality.

Upgrade steps for stereo styli

Rainier – simplest cantilever. Elliptical diamond (r/R 8 x 18µm)

Olympia – better selected diamond stylus. Elliptical diamond (r/R 8 x 18µm)

Moonstone – lighter aluminum cantilever. Elliptical diamond (r/R 8 x 18µm)

Wellfleet – nude diamond with elliptical cut (r/R 8 x 18µm)

Amethyst – nude Line-Contact cut (r/R 5 x 20µm).

Optional 78rpm stylus for MM cartridges:

For the Rainier through Amethyst models, there is an RS78 stylus with a spherical (R 76µm) stylus cut for shellac records.

Dynamic compliance, lateral: 10μm*

Stylus: Elliptical (r/R 8x18μm).

Tracking force: 2g

* Compliance measured at 100Hz
