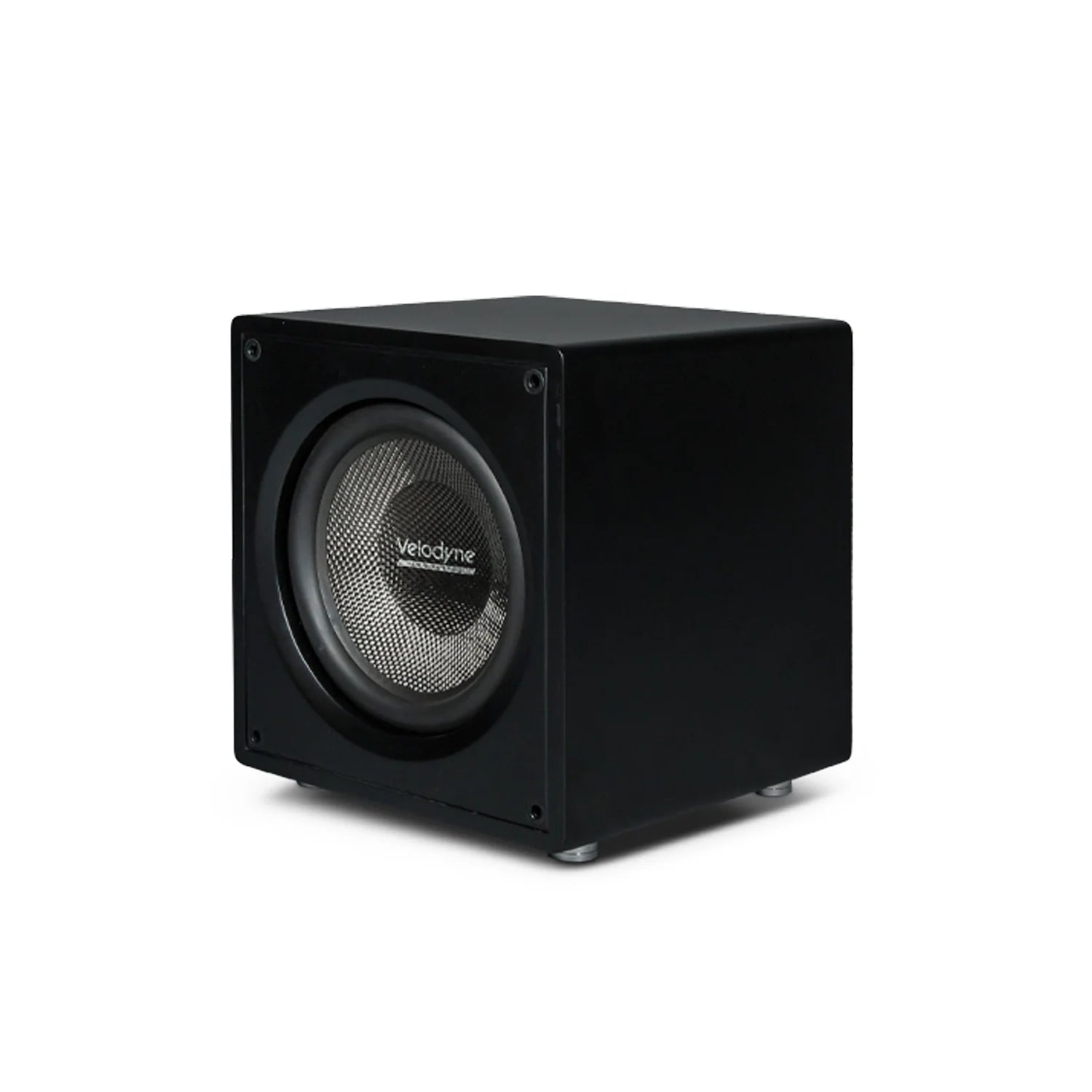

The sealed subwoofers of the VI-Q series showcase everything that distinguishes Velodyne Acoustics woofers in a modern form. In addition, the three models feature a particularly high-quality driver configuration and the iWoofer™ app, which gives users full control through room adjustment, a 25-band parametric equalizer, and presets.

The features

• The lightweight carbon fiber cone, combined with the 3-inch voice coil, ensures optimal transient response with low distortion values
• Full power thanks to up to 650 W RMS Class-D amplification with 1200 W peak power; highly efficient switching power supply with 2 x 25 A / 650 V MOSFET transistors
• Solid front panel made of a 21-layer multiplex board with a material thickness of a full 50 millimeters.
• Best connectivity is guaranteed with professional XLR connectors, RCA input jacks for the left and right channels, and speaker terminals

Driver:
12″ front-firing driver

Class D amplifier:
900 watts dynamic, 500 watts RMS

Frequency response:
(± 3 dB) 25 Hz – 180 Hz

Frequency response:
(± 10 dB) 22 Hz – 250 Hz

Low-pass frequency response:
50 Hz to 180 Hz (12 dB/octave)
Phase 0 / 180 degrees

Enclosure:
22 mm HDF, 50 mm front baffle

Magnet:
Double ferrite magnet

Woofer:
12″ high-excursion driver with triple-vented basket, carbon fiber cone, and convex dust cap

Voice coil:
Four-layer 2.5″ / 63 mm voice coil

Input:
Gold-plated stereo/LFE RCA, nickel-plated XLR, and high-level input

Output:
Gold-plated stereo/LFE RCA, nickel-plated XLR

Power switch:
Off / Auto / On

Finishes:
Matte black, flat matte white

Dimensions (W/H/D) (incl. feet and connectors):
41 cm x 48 cm x 41 cm

Weight (approx.):
25 kg

Shipping weight (approx.):
28 kg
