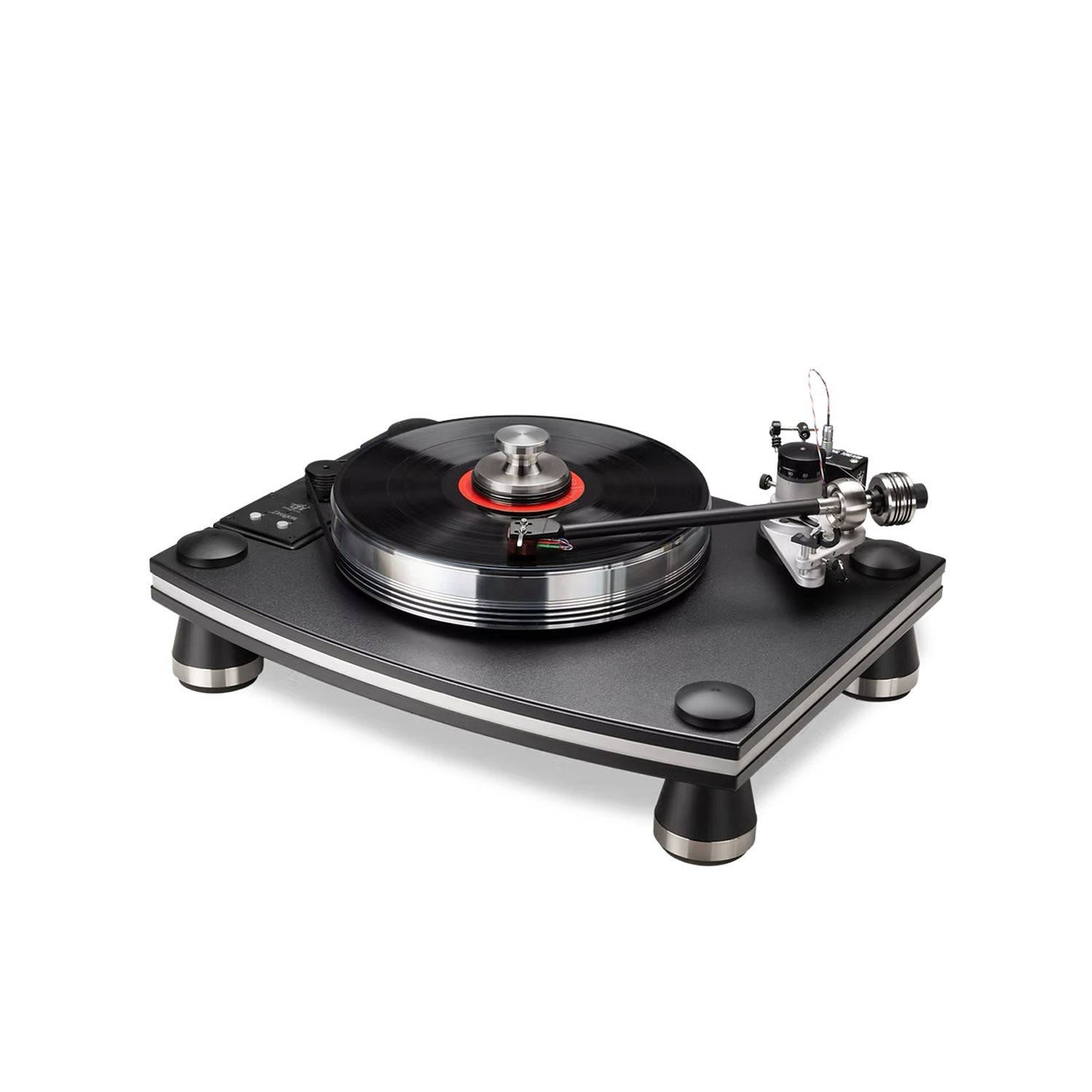

The Dragon was designed to get the most out of your vinyl collection and transport you to the studio where the music was recorded. Every single detail of this high-end turntable has been developed with superior technology and appealing, individual features to create an excellent soundstage, captivating dynamics, and pure audio reproduction that will enthral you every time you listen.

Exceptionally quiet design

To capture even the most subtle nuances of the recording and ensure you hear every note, the Dragon's high-torque AC synchronous motor is housed in a mechanically separate enclosure. In combination with the integrated motor electronics and a unique triple-belt drive, this prevents motor vibrations from entering the audio signal, so you hear nothing but the record.

Integrated motor drive electronics consisting of two low-distortion oscillators and Class AB electronics

-Optimized drive system with mechanically isolated enclosure and triple-belt drive

-High-torque AC synchronous motor

-Stainless steel shaft in an inverted phosphor bronze bushing

-Precision-machined pulley and triple-belt drive

-Highly damped, vinyl-covered MDF and aluminum sandwich chassis

-Machined Delrin and aluminum feet with vibration-damping polymer core

-The platter, crafted from solid aluminum with an MDF damping layer, rotates on an inverted bearing

Chassis:
Vinyl-wrapped MDF and steel

Power supply:
100–120 V or 220–240 V AC, 50–60 Hz

Platter type and size:
12" aluminum, 9 kg

Tonearm:
JMW-10-3D tonearm

Motor speed:
300 RPM

Motor pulley accuracy:
+/- 0.0005"

Wow and flutter:
< 0.1%

Speed accuracy:
0.05%

Rumble:
80 dB

Footprint:
200 mm x 533 mm x 404 mm

Overall size:
54.5 x 39.5 cm

Total weight:
26 kg

VPI Prime Gimbal 10-3D

Bearing type:
Full gimbal bearing
I
nternal wiring:
VPI copper braid

Pivot to spindle distance:
258 mm

Effective length:
273.4 mm

Effective mass:
10.2 g

Overhang:
15.4 mm

Offset angle:
19.98 degrees

Average RMS distortion:
0.31%

Material:
3D technology, consisting of epoxy resin, Delrin, copper, aluminum, and steel.


Product notes:
Adjustable counterweight, azimuth side weights, VTA, and Lemo connector
