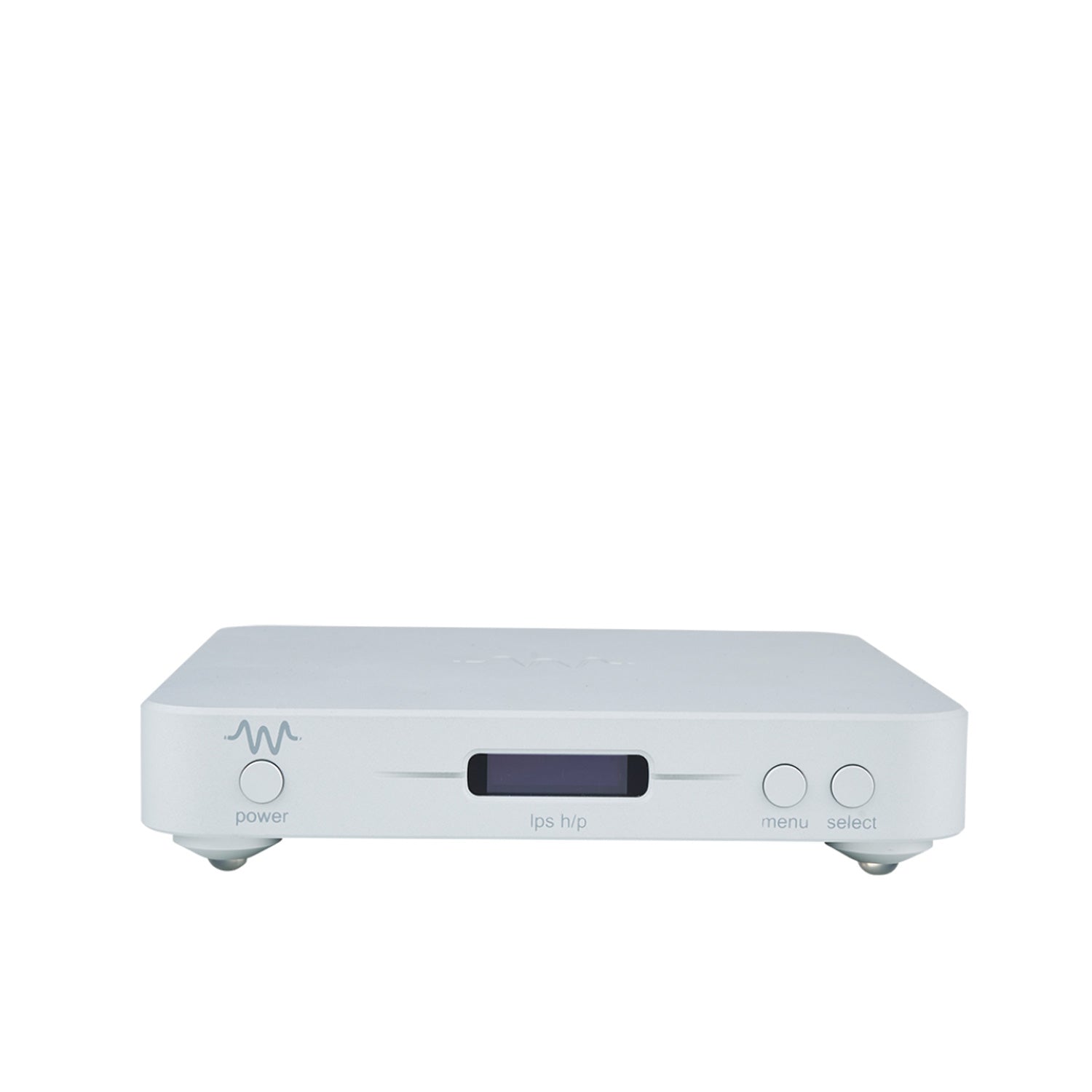

Clean energy for all: Waversa WLPS / HP

Wi-Fi, DECT, LED lighting, and mobile reception make our daily lives easier and more enjoyable, ensuring smooth communication and accessibility.

Unfortunately, these technologies also cause problems for sound quality. Noise from lamps, digital devices, and other equipment can enter the music signal through power cables. The power cables of a music system can also act like an antenna, and the interference these "antennas" pick up also enters the music system along with the music signal.

The simple and inexpensive switching power supplies that come with more and more devices today cause further playback problems, as they operate at very high clock frequencies while featuring – for cost reasons – inferior shielding. These interference signals also find their way into the music signal.

In any case, the quality of music reproduction suffers. And to avoid precisely these problems, Waversa Systems has developed high-quality power conditioners for low-voltage devices from 5 to 24 volts.

This power conditioner filters out all interference transmitted to devices via the power grid and provides the connected devices with exclusively clean and stable power.

The WLPS / HP can power two devices with different voltages and a power requirement of up to five amps. With an optional 10A power supply, up to 10A is even possible.

Output voltage
5–24 V DC, adjustable in 0.1 V increments

Outputs
2 independent DC outputs

Max. output current
10 A per output (model-dependent)

Max. total power
480 W (2 × 240 W)

Input
External 28 V power supply unit

Input voltage
Mains 90–240 V AC, 50/60 Hz

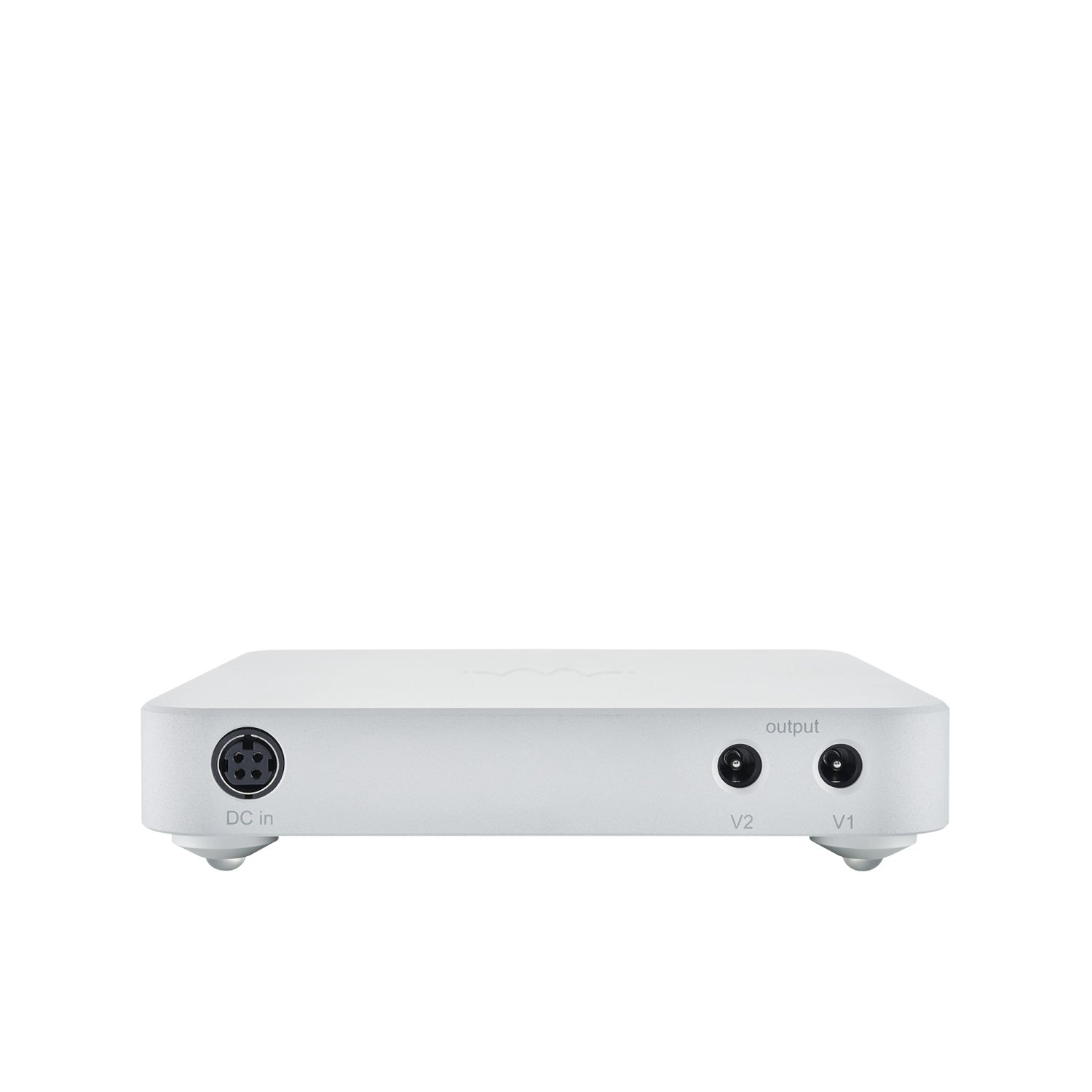

Connections
1 × DC input, 2 × DC output (5.5 × 2.5 mm)

Housing Aluminum

Dimensions
150 × 150 × 30–32 mm

Weight
approx. 680 g
